Body Harness Routing Diagram - Right Rear of the Passenger Compartment

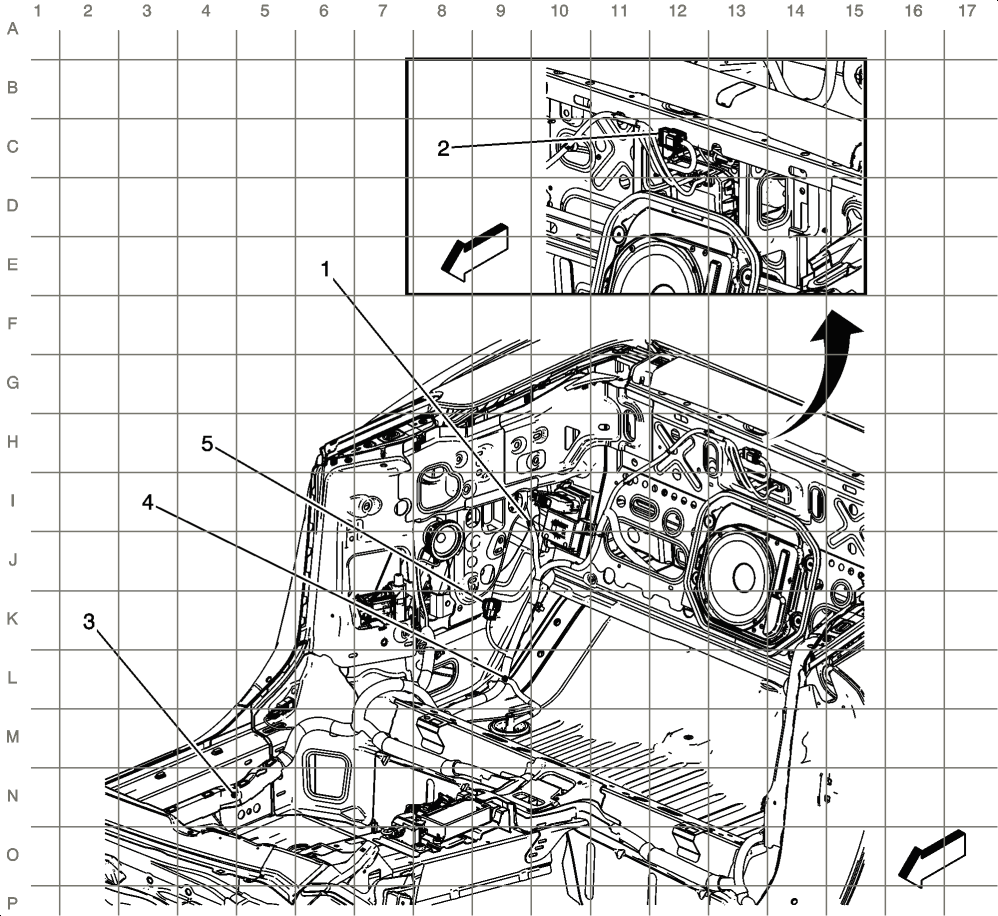

Fig 1: Body Harness Routing Diagram - Right Rear of the Passenger Compartment
GM2535669Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 J310
2 X404
3 J315
4 J309
5 X310
