Body Harness Routing Diagram - Right Passenger Compartment
Body Harness Routing Diagram - Right Passenger Compartment

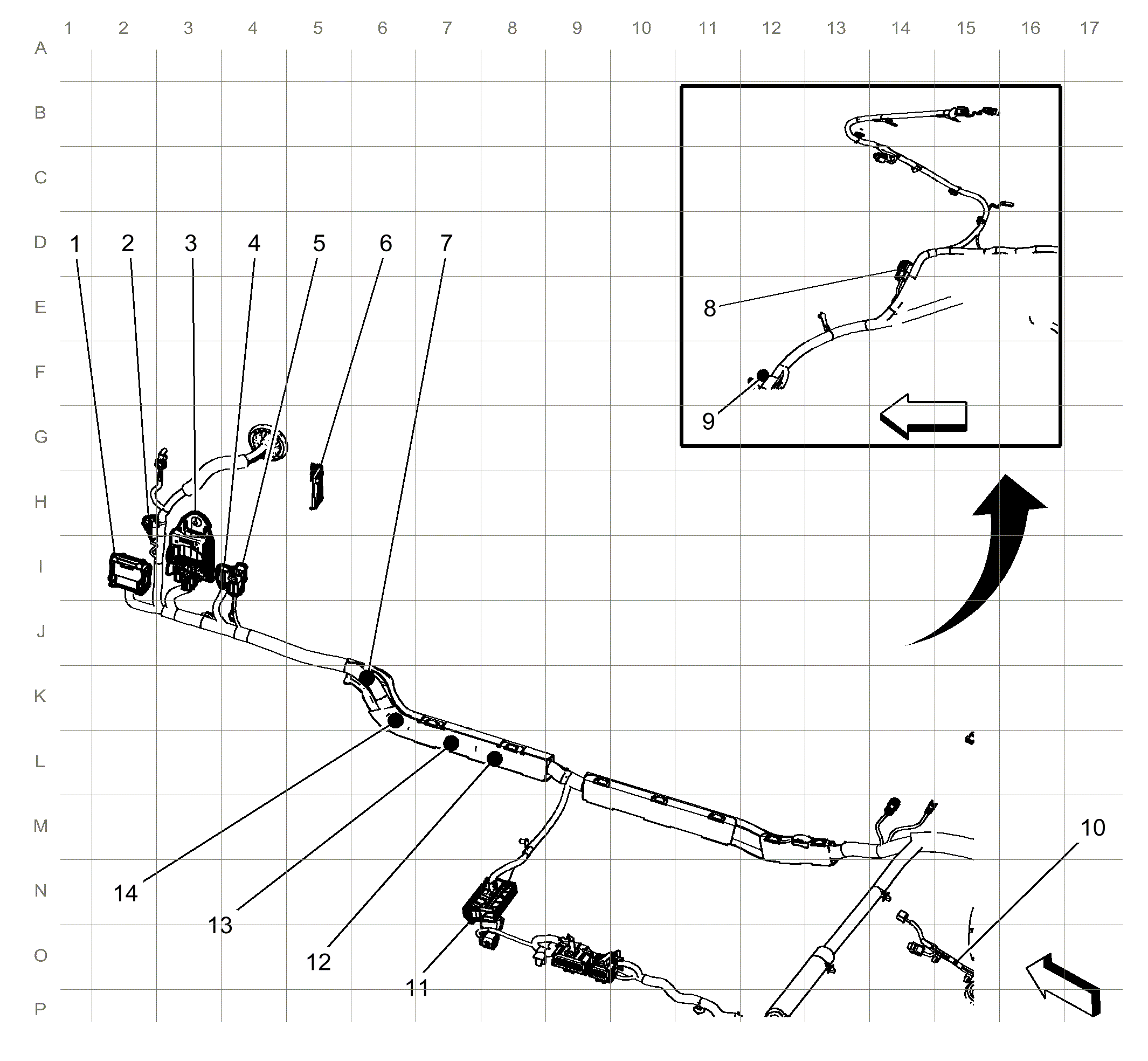

Fig 1: Body Harness Routing Diagram - Right Passenger Compartment
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
X210
2
X209
3
X208
4
X256 (UE1 or U2K)
5
X254
6
X600
7
J305
8
X304
9
J310
10
J309
11
X306
12
J308
13
J307
14
J306
Courtesy of GENERAL MOTORS COMPANY
