Body Harness Routing Diagram - Right Front of the Passenger Compartment

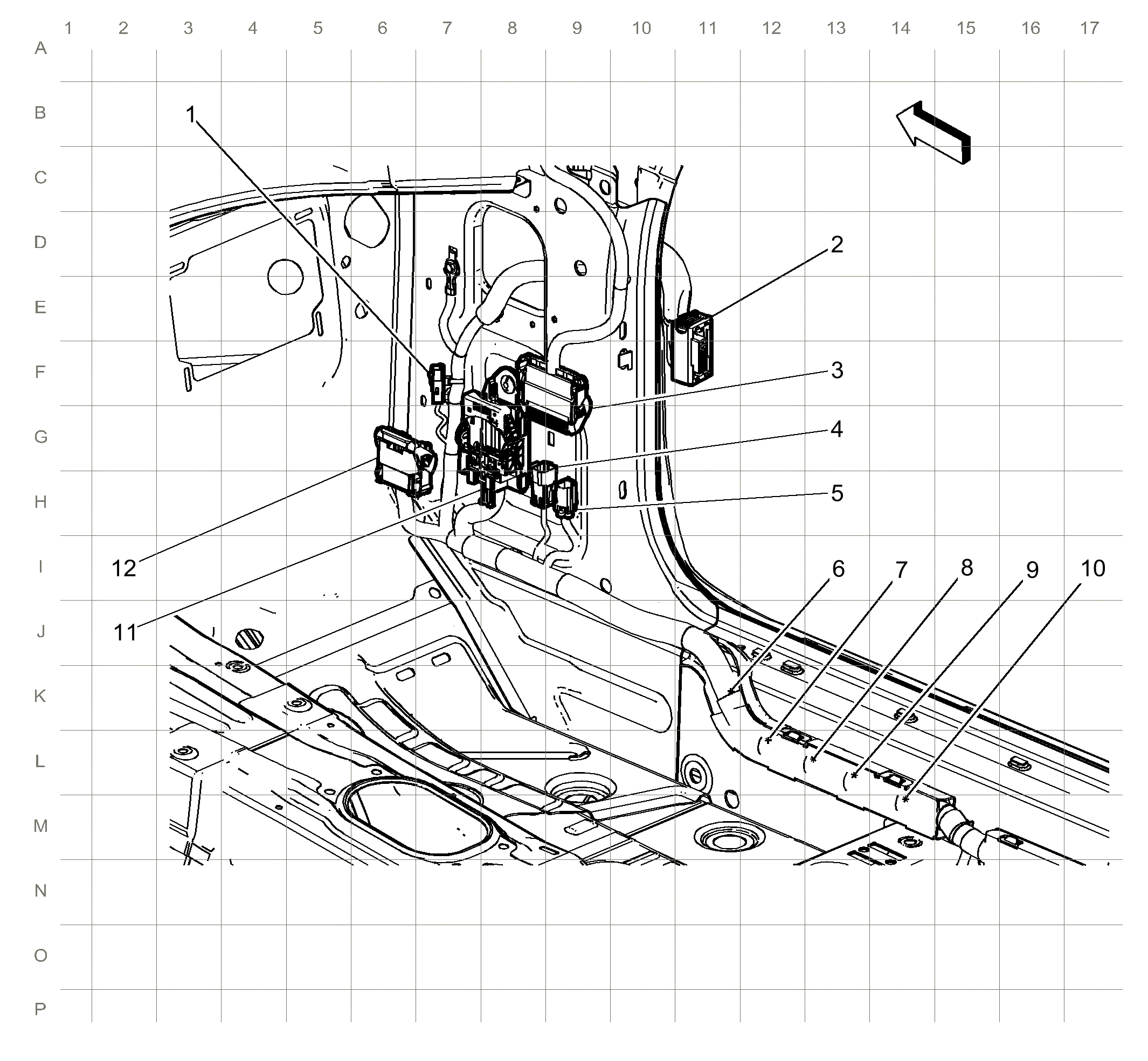

Fig 1: Body Harness Routing Diagram - Right Front of the Passenger Compartment
GM2535668Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 X209
2 X600
3 X204
4 X254
5 X256
6 J305
7 J304
8 J307
9 J314
10 J308
11 X208
12 X210
