Body Harness Routing Diagram - Luggage Compartment (Convertible)
Body Harness Routing Diagram - Luggage Compartment (Convertible)

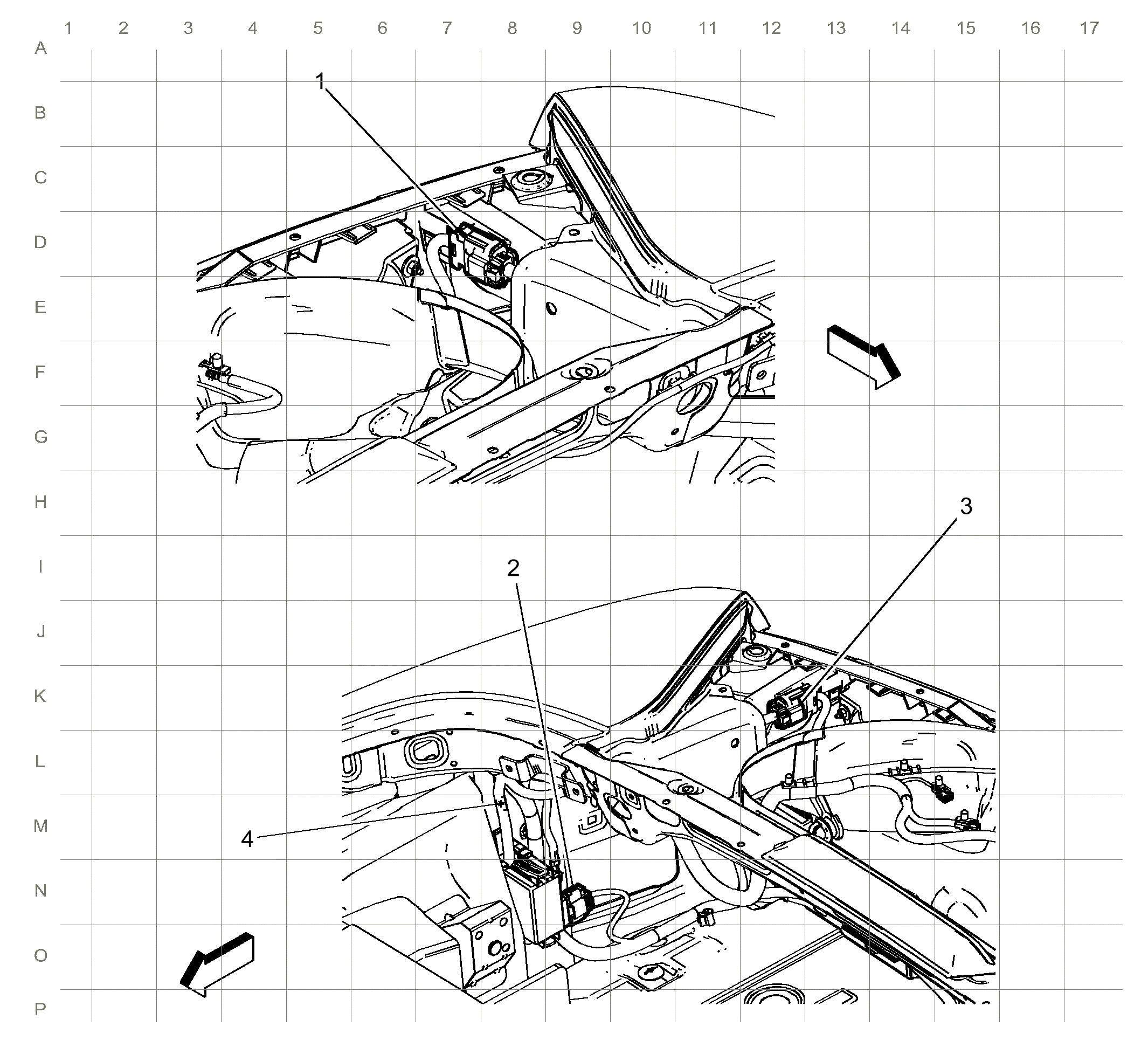

Fig 1: Body Harness Routing Diagram - Luggage Compartment (Convertible)
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
X400
2
X403
3
X401
4
J409
Courtesy of GENERAL MOTORS COMPANY
