Body Harness Routing Diagram - Left Passenger and Rear Compartment

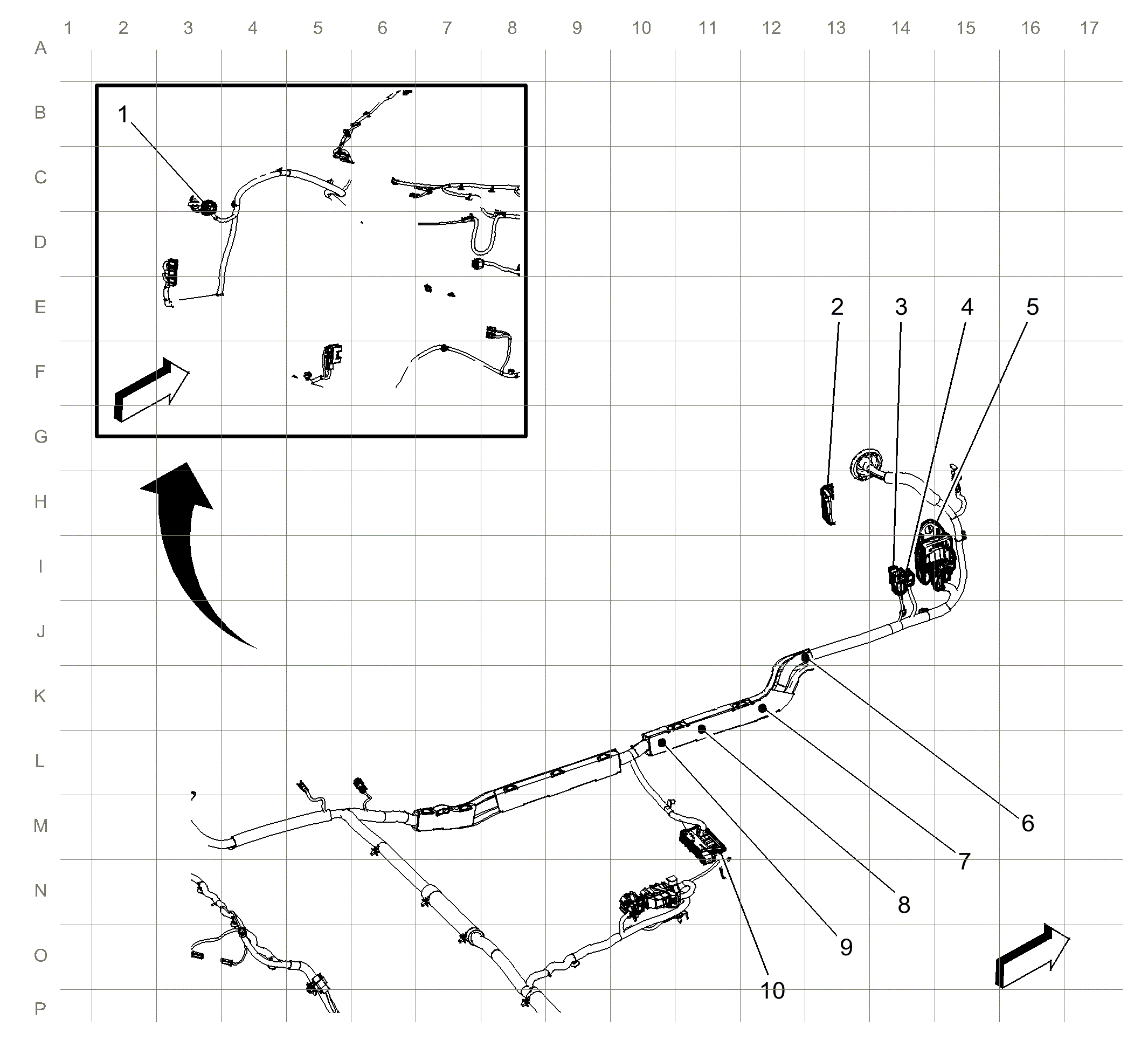

Fig 1: Body Harness Routing Diagram - Left Passenger and Rear Compartments
GM2292330Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 X400
2 X500
3 X253
4 X251
5 X207
6 J301
7 J302
8 J303
9 J304
10 X307
