Body Harness Routing Diagram - Left Front of the Passenger Compartment

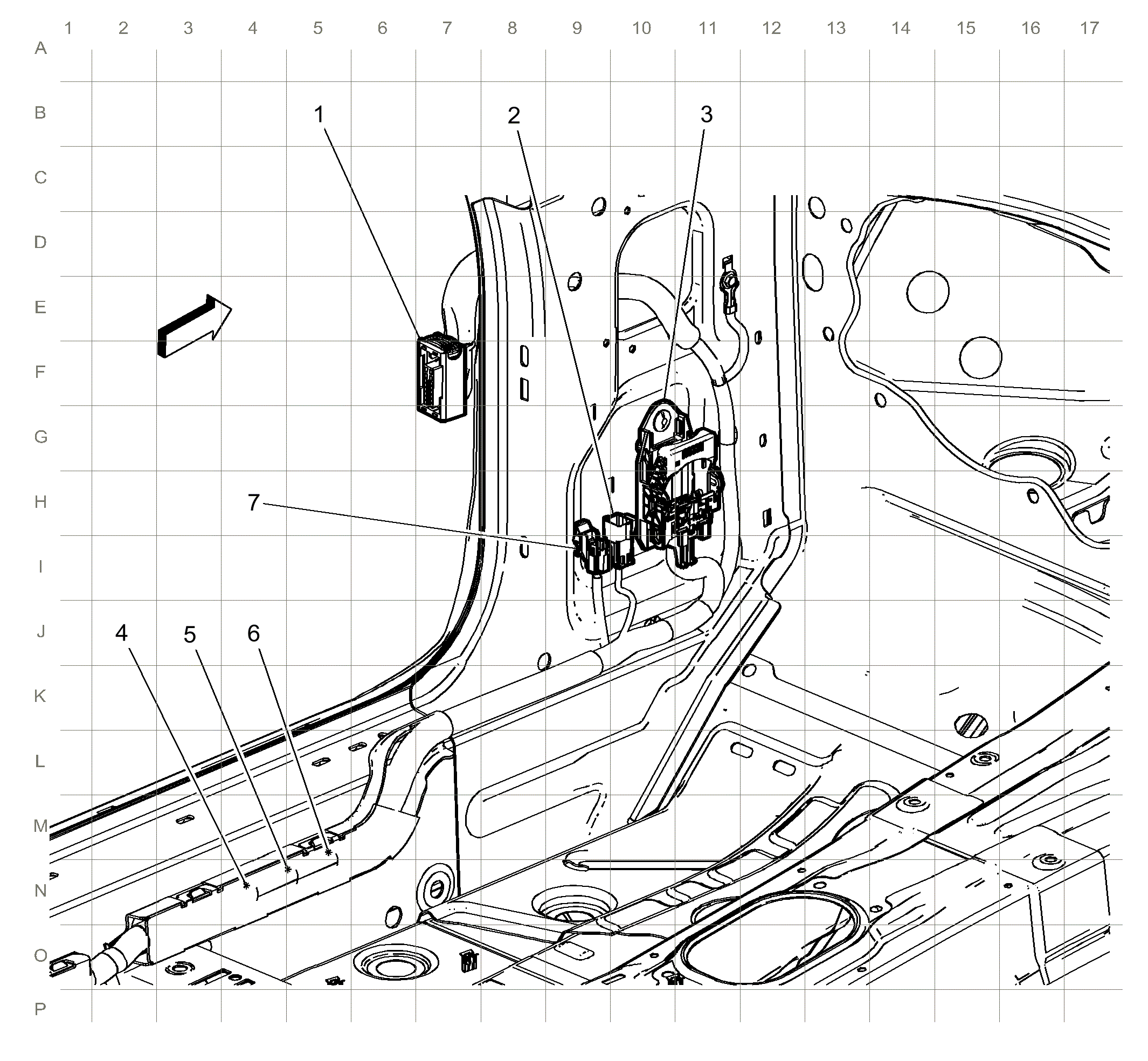

Fig 1: Body Harness Routing Diagram - Left Front of the Passenger Compartment
GM2535666Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 X500
2 X253
3 X207
4 J303
5 J302
6 J301
7 X251
