X600 Body Harness to Passenger Door Harness

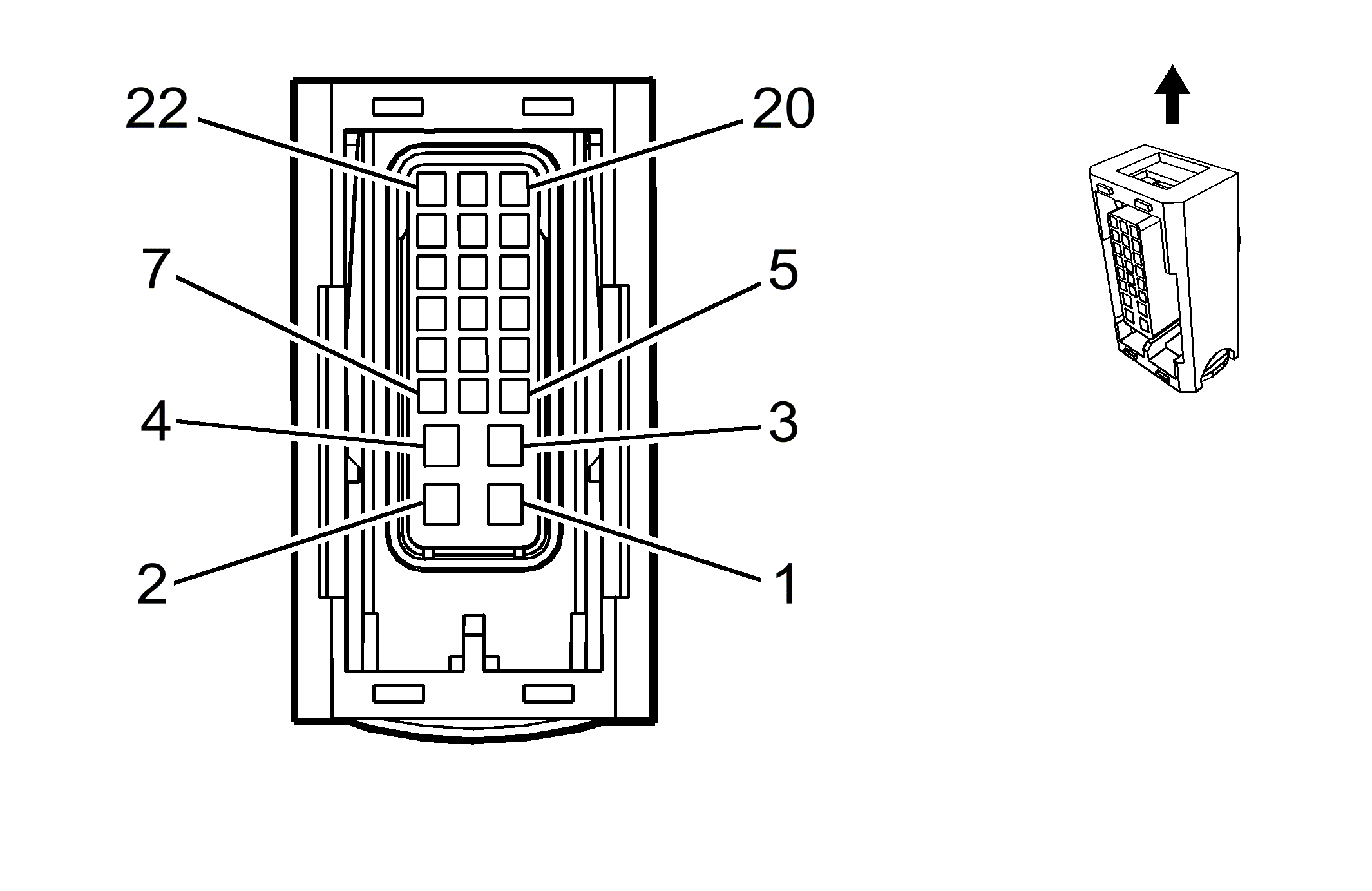

Connector Part Information Harness Type: Body OEM Connector: 10763183 Service Connector: 13505899 Description: 22-Way F 1.5 2.8 Series, Sealed (BK)

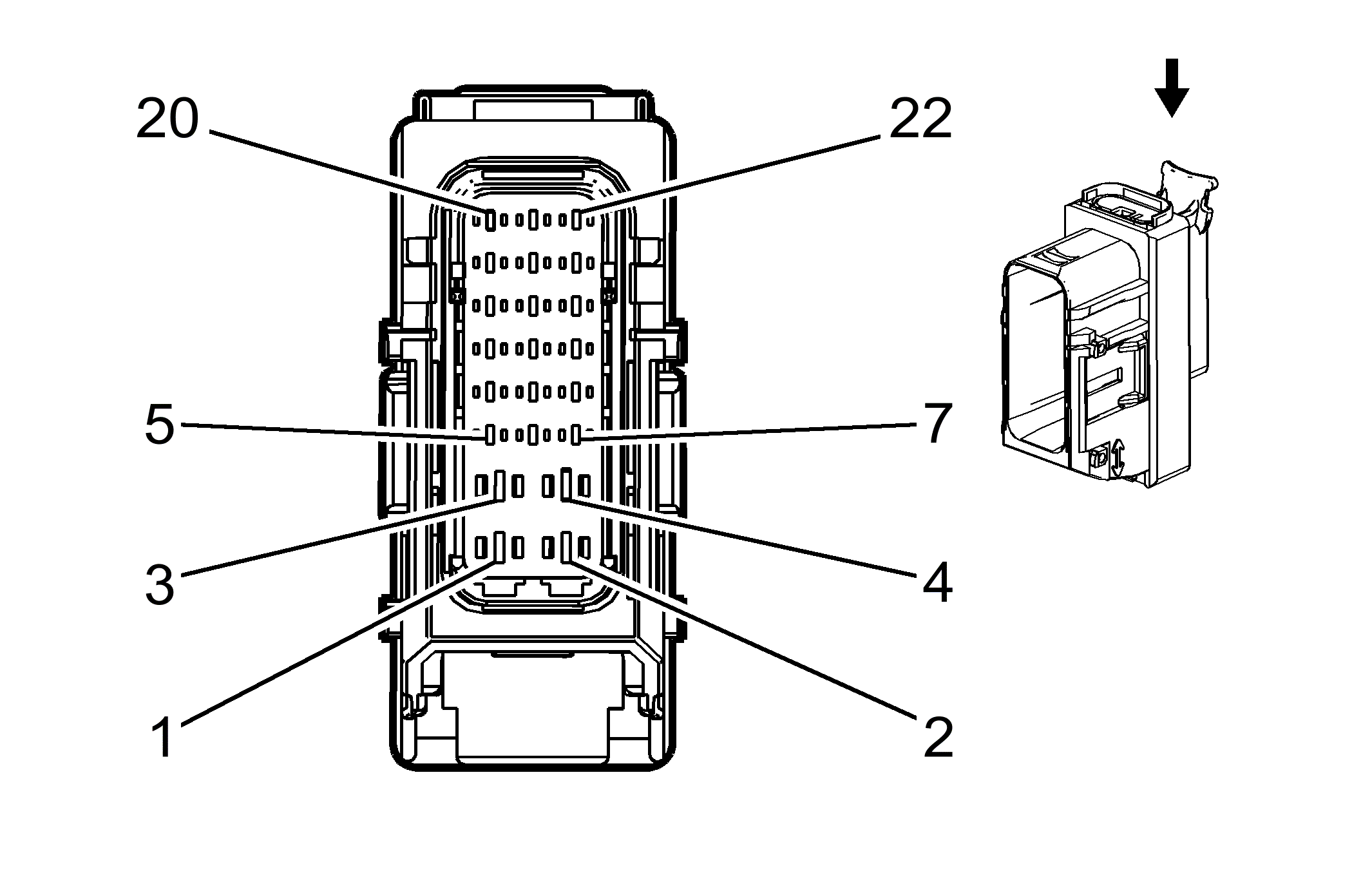

Connector Part Information Harness Type: Passenger Door OEM Connector: 10763193 Service Connector: Service by Harness - See Part Catalog Description: 22-Way M 1.5 2.8 Series, Sealed (BK)

Terminal Part Information Pins: 1, 2, 3 Terminated Lead: 13582168 Release Tool: J-38125-560 Diagnostic Test Probe: J-35616-5 (PU) Terminal/Tray: Not Available Core/Insulation Crimp: A/D Pins: 5, 6, 11, 12, 14, 16, 18 Terminated Lead: 13576368 Release Tool: J-38125-560 Diagnostic Test Probe: J-35616-14 (GN) Terminal/Tray: 4-969005-1/16 Core/Insulation Crimp: E/1 Pins: 7-10, 13, 17 Terminated Lead: 13578884 Release Tool: J-38125-560 Diagnostic Test Probe: J-35616-14 (GN) Terminal/Tray: 964274-2/16 Core/Insulation Crimp: E/1 Pins: 19, 20 Terminated Lead: 13575418 Release Tool: Pending Diagnostic Test Probe: Pending Terminal/Tray: Not Available Core/Insulation Crimp: Not Available

Terminal Part Information Terminated Lead: Service by Harness - See Part Catalog Release Tool: Pending Diagnostic Test Probe: Pending Terminal/Tray: Not Available Core/Insulation Crimp: Not Available

X600 Body Harness to Passenger Door Harness

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
1	2.5 RD/WH	5040	Battery Positive Voltage (T90)	1	RD/WH	5040	Battery Positive Voltage (T90)
2	2.5 RD/WH	1240	Battery Positive Voltage	2	2.5 RD/WH	1240	Battery Positive Voltage
3	2.5 BK	2350	Ground	3	2.5 BK	2350	Ground
4	-	-	Not Used	4	-	-	Not Used
5	0.35 OG	2267	Mirror Heating Element Supply Voltage (DD1/DG7)	5	0.35 OG	2267	Mirror Heating Element Supply Voltage (DD1/DG7)
6	0.35 PU	7558	Accent Lamps Control (C93)	6	0.35 PU	7558	Accent Lamps Control (C93)
7	0.5 OG/WH	881	Passenger Mirror Motor Right Control	7	0.5 OG/WH	881	Passenger Mirror Motor Right Control
8	0.5 PU/WH	889	Passenger Mirror Motor Down Control	8	0.5 PU/WH	889	Passenger Mirror Motor Down Control
9	0.5 TN/WH	330	Passenger Mirror Motor Left/Up Control	9	0.5 TN/WH	330	Passenger Mirror Motor Left/Up Control
10	0.8 D-GN	117	Right Front Speaker Output (-)	10	0.8 D-GN	117	Right Front Speaker Output (-)
11	0.35 PU	2765	Power Window Switch Right Front Express Signal (Coupe)	11	0.35 PU	2765	Power Window Switch Right Front Express Signal
12	0.35 L-BU	166	Power Window Master Switch Right Front Up Signal (Coupe)	12	0.35 L-BU	166	Power Window Master Switch Right Front Up Signal
13	0.8 L-GN	200	Right Front Speaker Output (+)	13	0.8 L-GN	200	Right Front Speaker Output (+)
14	0.35 TN	167	Power Window Master Switch Right Front Down Signal (Coupe)	14	0.35 TN	167	Power Window Master Switch Right Front Down Signal
15	-	-	Not Used	15	-	-	Not Used
16	0.35 D-GN	6134	Linear Interconnect Network 3	16	0.35 D-GN	6134	Linear Interconnect Network 3
17	0.5 D-BU/WH	1315	Right Front Turn Signal Lamp Supply Voltage (T90)	17	0.5 D-BU/WH	1315	Right Front Turn Signal Lamp Supply Voltage (T90)
18	0.35 YE	6817	LED Backlight Dimming Control	18	0.35 YE	6817	LED Backlight Dimming Control
19	1 GY	295	Door Lock Actuator Unlock Control	19	0.8 GY	295	Door Lock Actuator Unlock Control
20	1 TN	294	Door Lock Actuator Lock Control	20	0.8 TN	294	Door Lock Actuator Lock Control
21-22	-	-	Not Used	21-22	-	-	Not Used
