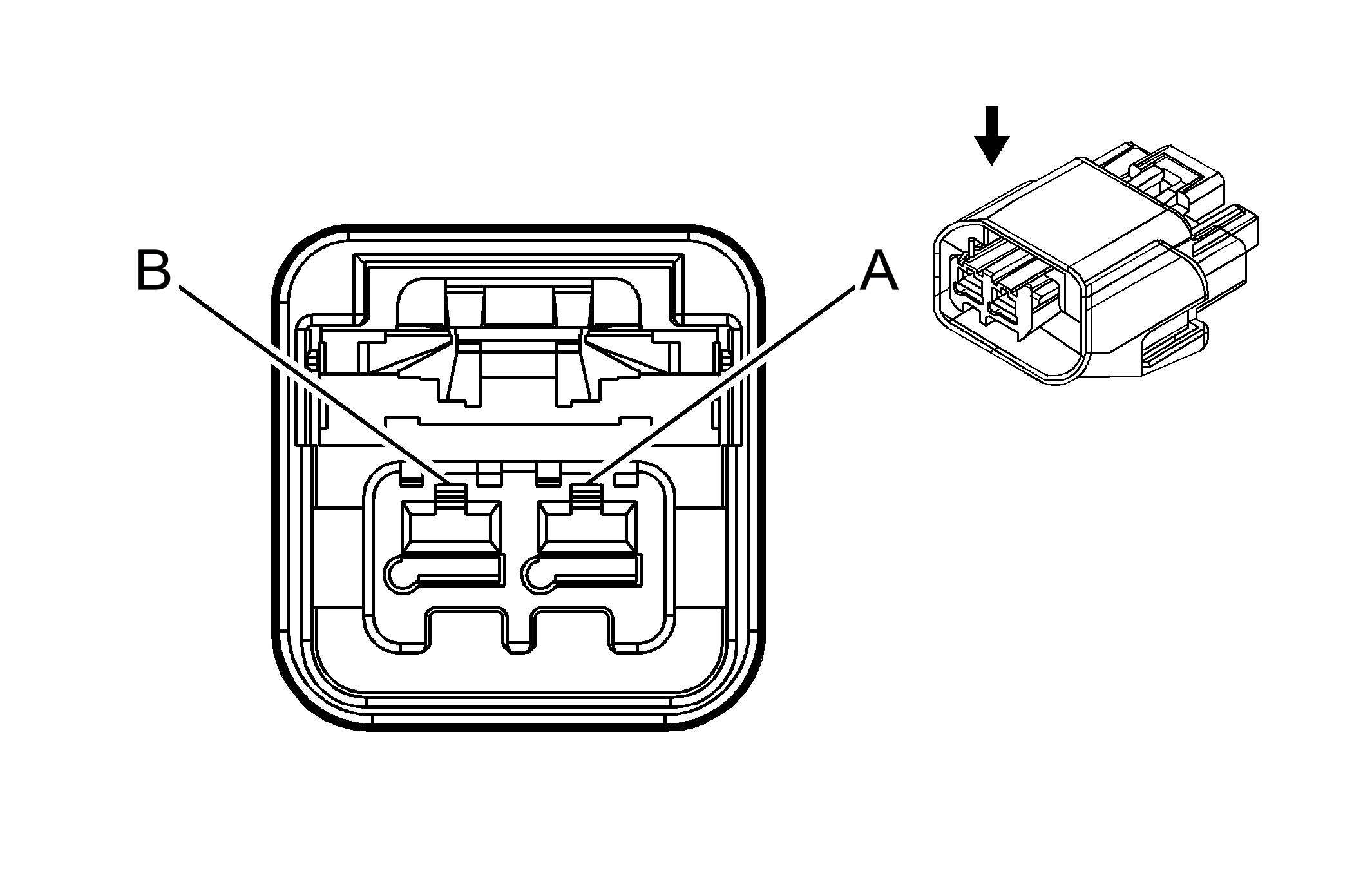

X310 Body Harness to Convertible Top Harness

Connector Part Information Harness Type: Body OEM Connector: 13665544 Service Connector: 13577619 Description: 2-Way F GT 280 Series (BK)	Connector Part Information Harness Type: Floor Console OEM Connector: 15326874 Service Connector: 15306379 Description: 2-Way M 280 Series (BK)
Terminal Part Information Terminated Lead: 13575497 Release Tool: J-38125-29 Diagnostic Test Probe: J-35616-4A (PU) Terminal/Tray: 13673612/Not Available Core/Insulation Crimp: 2/A	Terminal Part Information Terminated Lead: 13575510 Release Tool: J-38125-553 Diagnostic Test Probe: J-35616-5 (PU) Terminal/Tray: 15304724/8 Core/Insulation Crimp: 2/A

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
A	5 PU	293	Rear Defogger Element Supply Voltage	A	5 PU	293	Rear Defogger Element Supply Voltage
A	5 PU	293	Rear Defogger Element Supply Voltage	A	5 PU	293	Rear Defogger Element Supply Voltage
B	5 BK	2550	Ground	B	5 BK	2550	Ground
B	5 BK	2550	Ground	B	5 BK	2550	Ground
