X308 Driver Seat Back Harness to the Driver Seat Harness

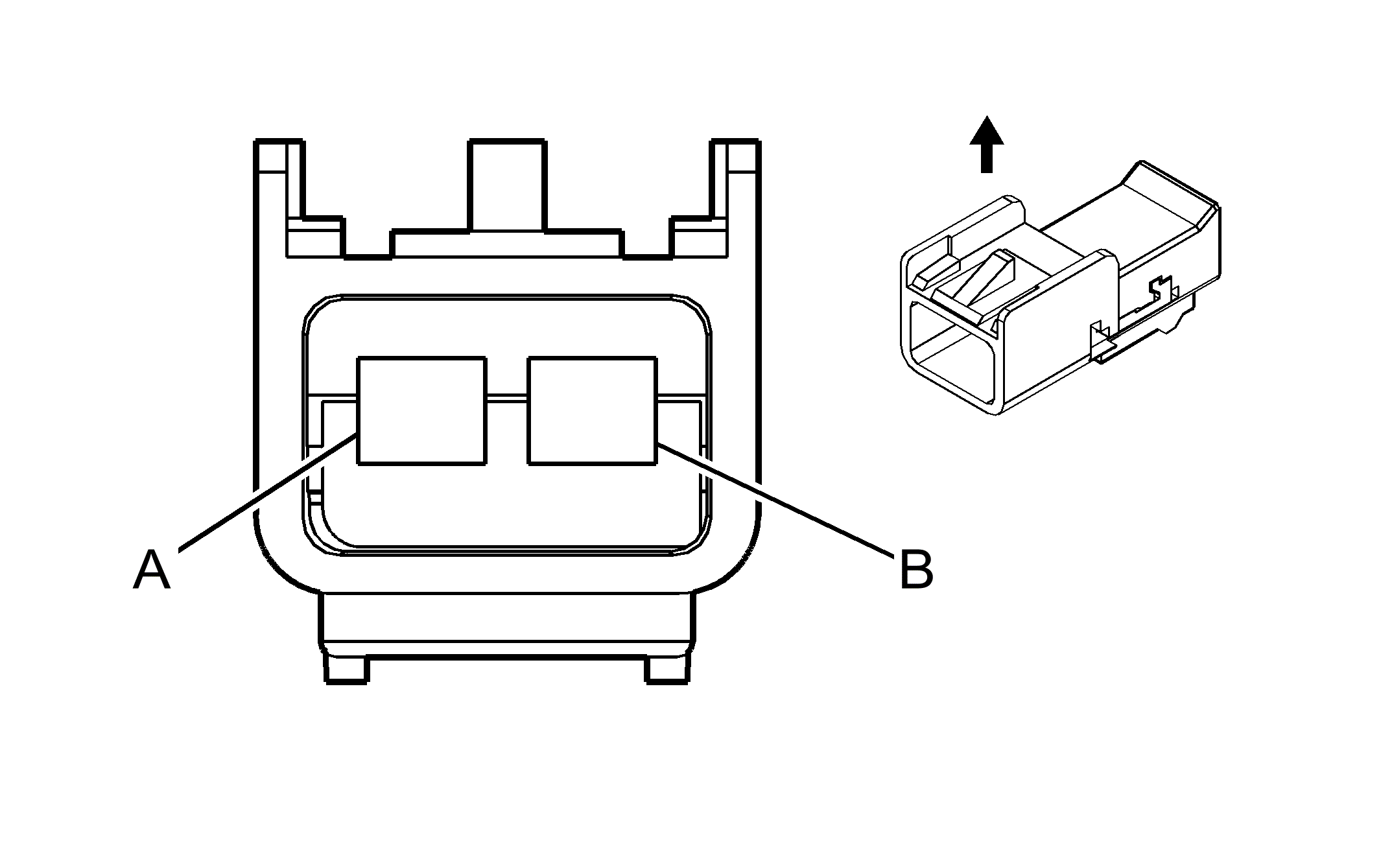

Connector Part Information
- Harness Type: Driver Seat Back
- OEM Connector: 15326870
- Service Connector: 19177524
- Description: 2-Way F GT 280 Series (BK)
|

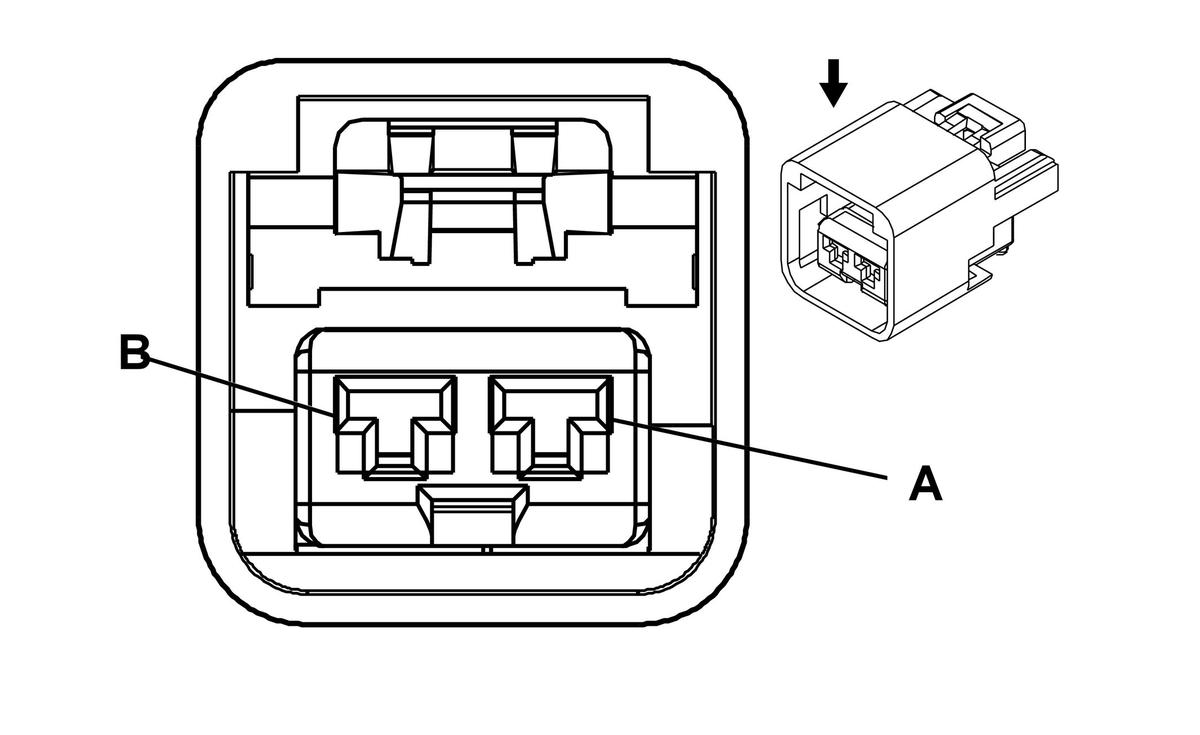

Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 15326874
- Service Connector: 15306379
- Description: 2-Way M GT 280 Series (BK)
|
Terminal Part Information
- Terminated Lead: 13575756
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 15304713/19
- Core/Insulation Crimp: F/D
|
Terminal Part Information
- Terminated Lead: 13575510
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-5 (PU)
- Terminal/Tray: 15304724/8
- Core/Insulation Crimp: A/D
|
X308 Driver Seat Back Harness to the Driver Seat Harness
| Pin |
Wire |
Circuit |
Function |
Pin |
Wire |
Circuit |
Function |
| A |
3 D-BU/YE |
277 |
Driver Seat Recline Motor Rearward Control |
A |
3 D-BU/YE |
277 |
Driver Seat Recline Motor Rearward Control |
| B |
3 D-GN/YE |
276 |
Driver Seat Recline Motor Forward Control |
B |
3 D-GN/YE |
276 |
Driver Seat Recline Motor Forward Control |
