X162 Cooling Fan Harness to Forward Lamp Harness

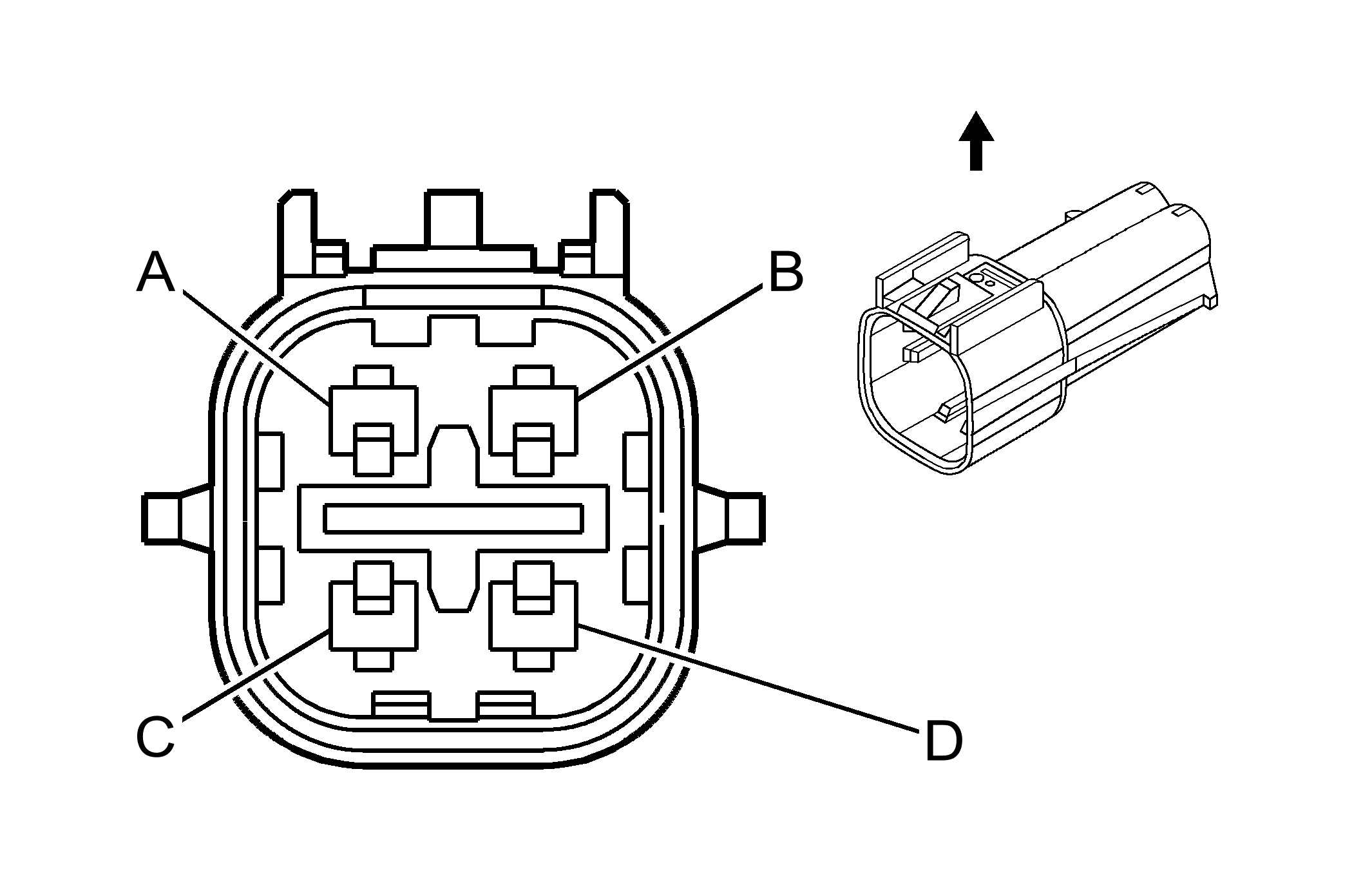

Connector Part Information Harness Type: Cooling Fan Motor - Left OEM Connector: 12191399 Service Connector: 15305995 Description: 4-Way F Metri-Pack 280 Series, Flexlock (BK)	Connector Part Information Harness Type: Forward Lamp OEM Connector: 12191387 Service Connector:13585329 Description: 4-Way M Metri-Pack 280 Series, Sealed (BK)
Terminal Part Information Terminated Lead: Pending Release Tool: J-38125-553 Diagnostic Test Probe: J-35616-4A (PU) Terminal/Tray: 12110845/4 Core/Insulation Crimp: F/5	Terminal Part Information Terminated Lead: Pending Release Tool: J-38125-11A Diagnostic Test Probe: J-35616-5 (PU) Terminal/Tray: 12129497/1 Core/Insulation Crimp: F/5

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
A	3 L-BU	409	Cooling Fan Motor - Right Supply Voltage	A	4 L-BU	409	Cooling Fan Motor - Right Supply Voltage
B	3 WH	504	Low Reference	B	4 WH	504	Low Reference
C	3 GY	532	Cooling Fan Motor - Left Supply Voltage	C	4 GY	532	Cooling Fan Motor - Left Supply Voltage
D	3 BK	1150	Ground	D	4 BK	1150	Ground
