X160 Engine Harness to Even Fuel Injectors/Coils Harness (LSA)

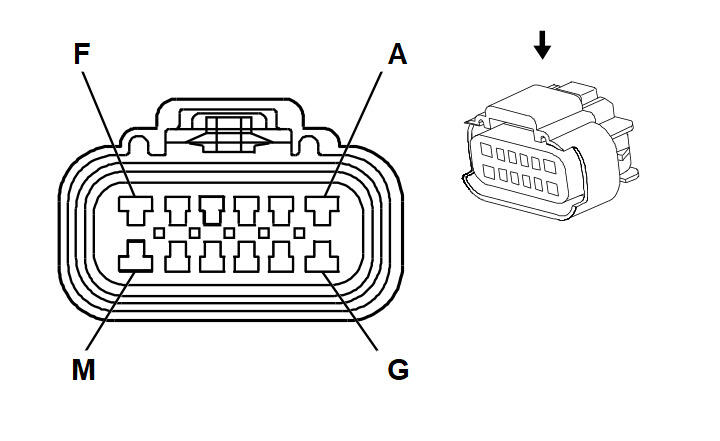

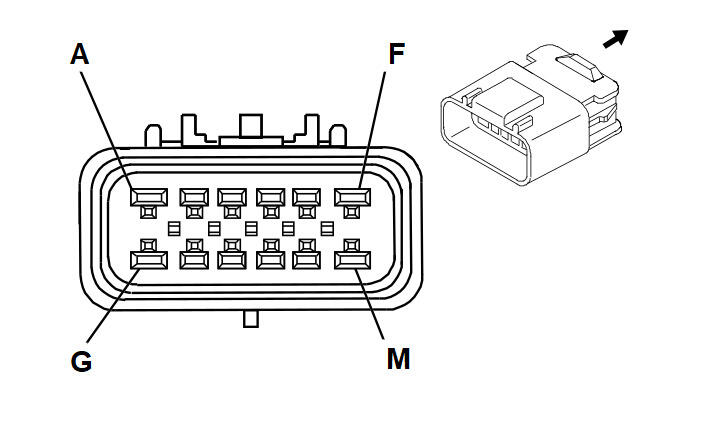

Connector Part Information Harness Type: Engine OEM Connector: 15326939 Service Connector: 88988440 Description: 12-Way F GT 150 280 Series Sealed (BK)	Connector Part Information Harness Type: Even Fuel Injectors/Coils OEM Connector: 15336034 Service Connector: 19168032 Description: 12-Way M GT 150/280 Series Sealed (BK)
Terminal Part Information Terminated Lead: 13578906 Release Tool: J-38125-553 Diagnostic Test Probe: J-35616-4A (PU) Terminal/Tray: 15304719/19 Core/Insulation Crimp: 2/5	Terminal Part Information Terminated Lead: 13580825 Release Tool: J-38125-553 Diagnostic Test Probe: J-35616-5 (PU) Terminal/Tray: 15304731/19 Core/Insulation Crimp: C/5

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
A	1 PK/BK	5292	Ignition 1 Voltage	A	0.8 PK	1339	Ignition 1 Voltage
B	0.5 PU/WH	2128	IC 8 Control	B	0.8 PU/WH	2128	IC 8 Control
C	0.5 D-BU/WH	878	Fuel Injector 8 Control	C	0.5 D-BU/WH	878	Fuel Injector 8 Control
D	0.5 L-BU/WH	2126	IC 6 Control	D	0.8 L-BU/WH	2126	IC 6 Control
E	0.5 YE/BK	846	Fuel Injector 6 Control	E	0.5 YE/BK	846	Fuel Injector 6 Control
F	1 BK	1450	Ground	F	0.8 BK	550	Ground
G	0.8 BN/WH	2130	Low Reference	G	0.8 BN/WH	2130	Low Reference
H	0.5 D-GN/WH	2124	IC 4 Control	H	0.8 D-GN/WH	2124	IC 4 Control
J	0.5 L-BU/BK	844	Fuel Injector 4 Control	J	0.5 L-BU/BK	844	Fuel Injector 4 Control
K	0.5 OG/WH	2122	IC 2 Control	K	0.8 OG/WH	2122	IC 2 Control
L	0.5 L-GN/BK	1745	Fuel Injector 2 Control	L	0.5 L-GN/BK	1745	Fuel Injector 2 Control
M	-	-	Not Used	M	-	-	Not Used
