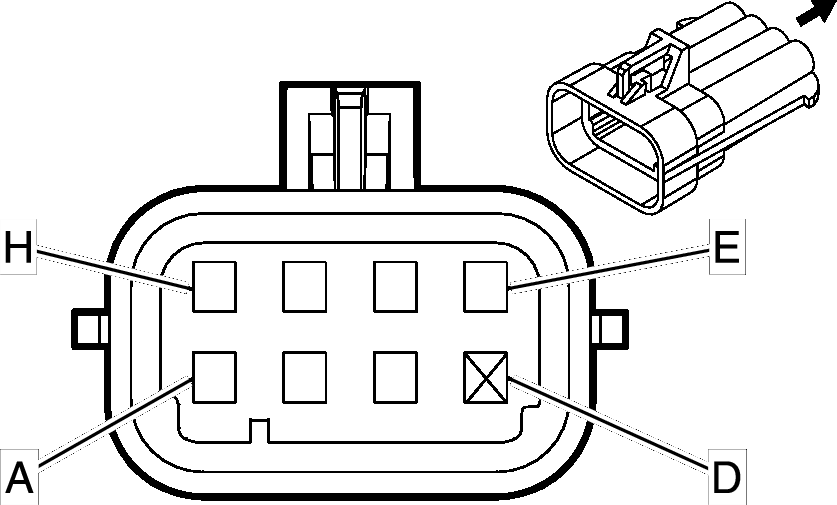

X112 Engine Harness to Coils (Even) Harness (L99 or LS3)
Connector Part Information
- Harness Type: Engine
- OEM Connector: 12047938
- Service Connector: 13580883
- Description: 8-Way F Metri-Pack 150 Series, Sealed (L-GY)
|
Connector Part Information
- Harness Type: Coils (Even)
- OEM Connector: 15496016
- Service Connector: 12102490
- Description: 8-Way M Metri-Pack 150 Series, Sealed (GY)
|
Terminal Part Information
- Pins: A, H
- Terminated Lead: 13576400
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-14 (GN)
- Terminal/Tray: 12160223/3
- Core/Insulation Crimp: E/1
- Pins: B, C, E, F, G
- Terminated Lead: 13575427
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-14 (GN)
- Terminal/Tray: 12048074/2
- Core/Insulation Crimp: E/1
|
Terminal Part Information
- Terminated Lead: 13575420
- Release Tool: J-38125-12A
- Diagnostic Test Probe: J-35616-3 (GY)
- Terminal/Tray: 12045773/2
- Core/Insulation Crimp: E/1
|
X112 Engine Harness to Coils (Even) Harness (L99 or LS3)
| Pin |
Wire |
Circuit |
Function |
Pin |
Wire |
Circuit |
Function |
| A |
0.8 BK |
350 |
Ground |
A |
0.8 BK |
350 |
Ground |
| B |
0.5 OG/WH |
2122 |
IC 2 Control |
B |
0.5 OG/WH |
2122 |
IC 2 Control |
| C |
0.5 D-GN/WH |
2124 |
IC 4 Control |
C |
0.5 D-GN/WH |
2124 |
IC 4 Control |
| D |
- |
- |
Not Available |
D |
- |
- |
Not Available |
| E |
0.5 BN/WH |
2130 |
Low Reference |
E |
0.5 BN/WH |
2130 |
Low Reference |
| F |
0.5 L-BU/WH |
2126 |
IC 6 Control |
F |
0.5 L-BU/WH |
2126 |
IC 6 Control |
| G |
0.5 PU/WH |
2128 |
IC 8 Control |
G |
0.5 PU/WH |
2128 |
IC 8 Control |
| H |
0.8 PK/BK |
5292 |
Ignition Voltage |
H |
0.8 PK/BK |
39 |
Ignition Voltage |
