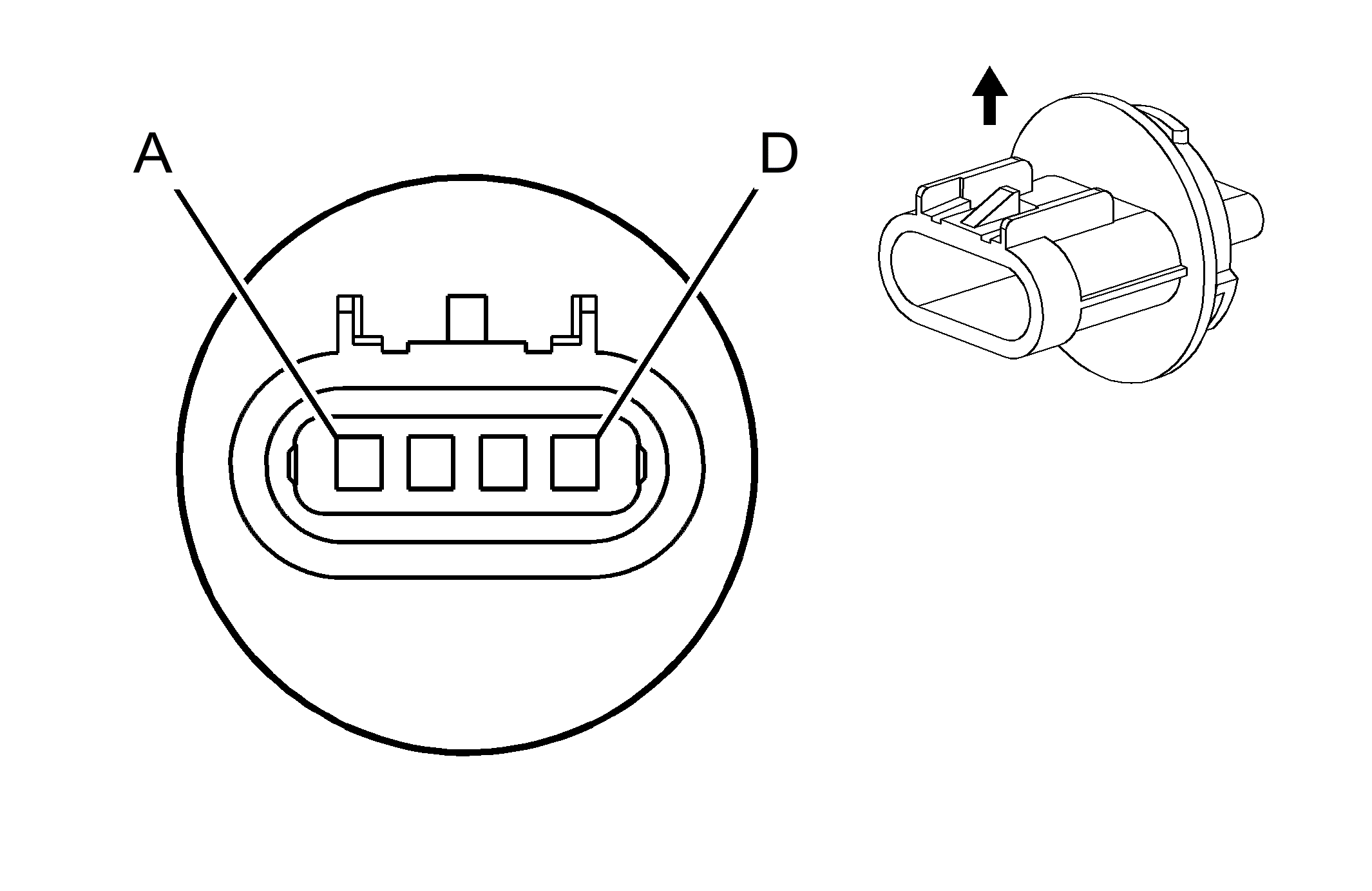

X110 Forward Lamp Harness to Left Headlamp Harness (T4F)

Connector Part Information Harness Type: Forward Lamp OEM Connector: 15487756 Service Connector: 19180287 Description: 4-Way F GT 150 Series, Sealed (BK)	Connector Part Information Harness Type: Left Headlamp OEM Connector: 15369319 Service Connector: Service by Component Assembly- See Part Catalog Description: 4-Way M GT 150 Series, Sealed (BK)
Terminal Part Information Terminated Lead: 13575412 Release Tool: J-38125-553 Diagnostic Test Probe: J-35616-2A (GY) Terminal/Tray: 12191819/8 Core/Insulation Crimp: Pins: A, B- 2/1 Core/Insulation Crimp: Pins: C, D- E/1	Terminal Part Information Terminated Lead: Service by Component Assembly- See Part Catalog Release Tool: Not Available Diagnostic Test Probe: Not Available Terminal/Tray: Not Available Core/Insulation Crimp: Not Available

Pin	Wire	Circuit	Function	Pin	Wire	Circuit	Function
A	1 BK	1150	Ground	A	BK	1150	Ground
B	1 YE	712	Left Headlamp Low Beam Supply Voltage	B	RD	712	Left Headlamp Low Beam Supply Voltage
C	0.5 D-GN/WH	711	Left Headlamp High Beam Supply Voltage	C	L-GN	711	Left Headlamp High Beam Supply Voltage
D	0.5 PU	709	Left Park Lamp Supply Voltage	D	D-BU	709	Left Park Lamp Supply Voltage
