Rear Seat Back Cushion Rear Lower Center Cover Carpet Replacement

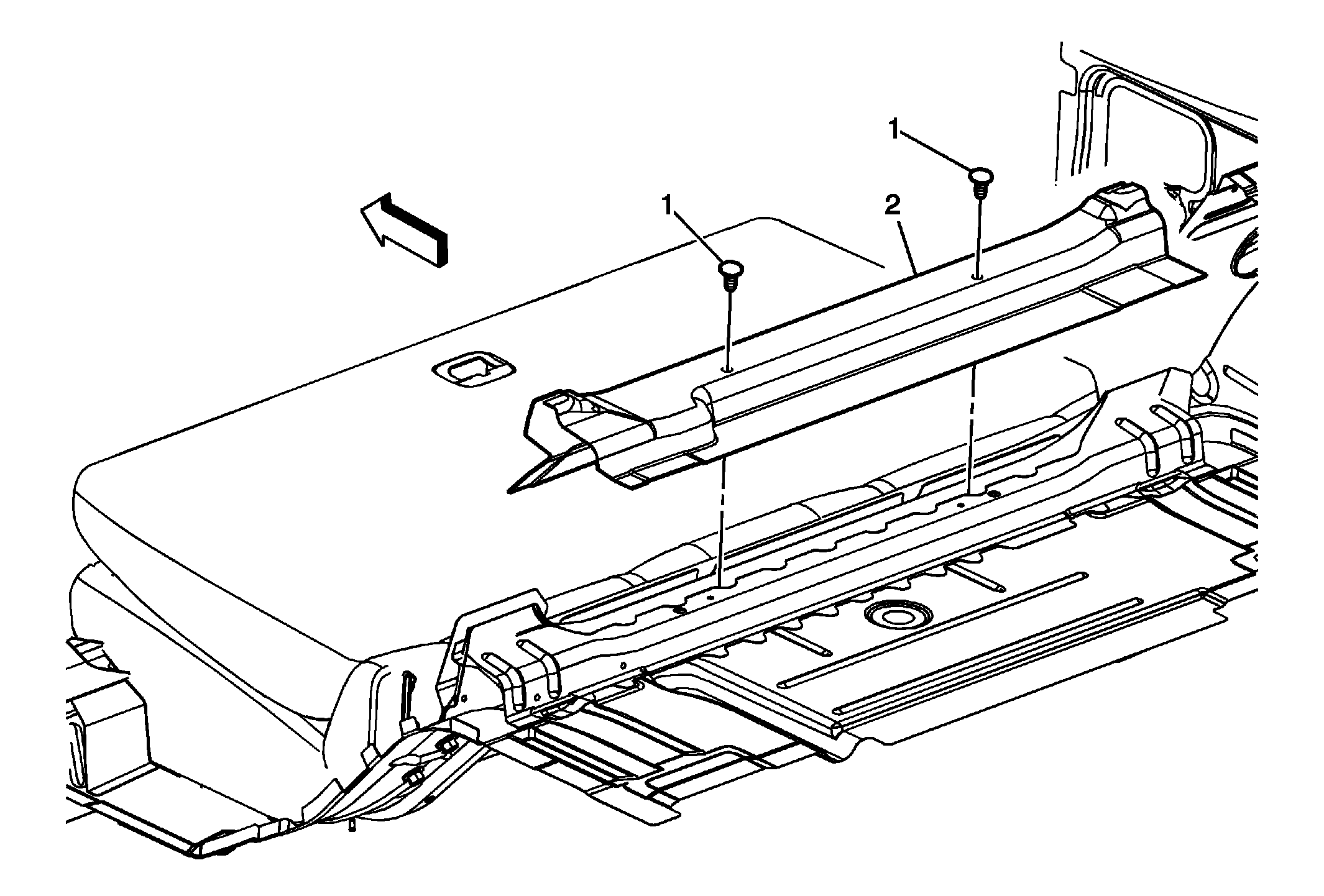

Fig 1: Rear Seat Back Cushion Rear Lower Center Cover Carpet And Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Seat Back Cushion Rear Lower Center Cover Carpet Retainer (Qty: 2) TIP: Pull the release strap located in the center of the seat back, folding the rear seat forward. TIP: Use a flat-bladed tool to release the carpet retainers from the floor.
2	Rear Seat Back Cushion Rear Lower Center Cover Carpet
