Removal Procedure

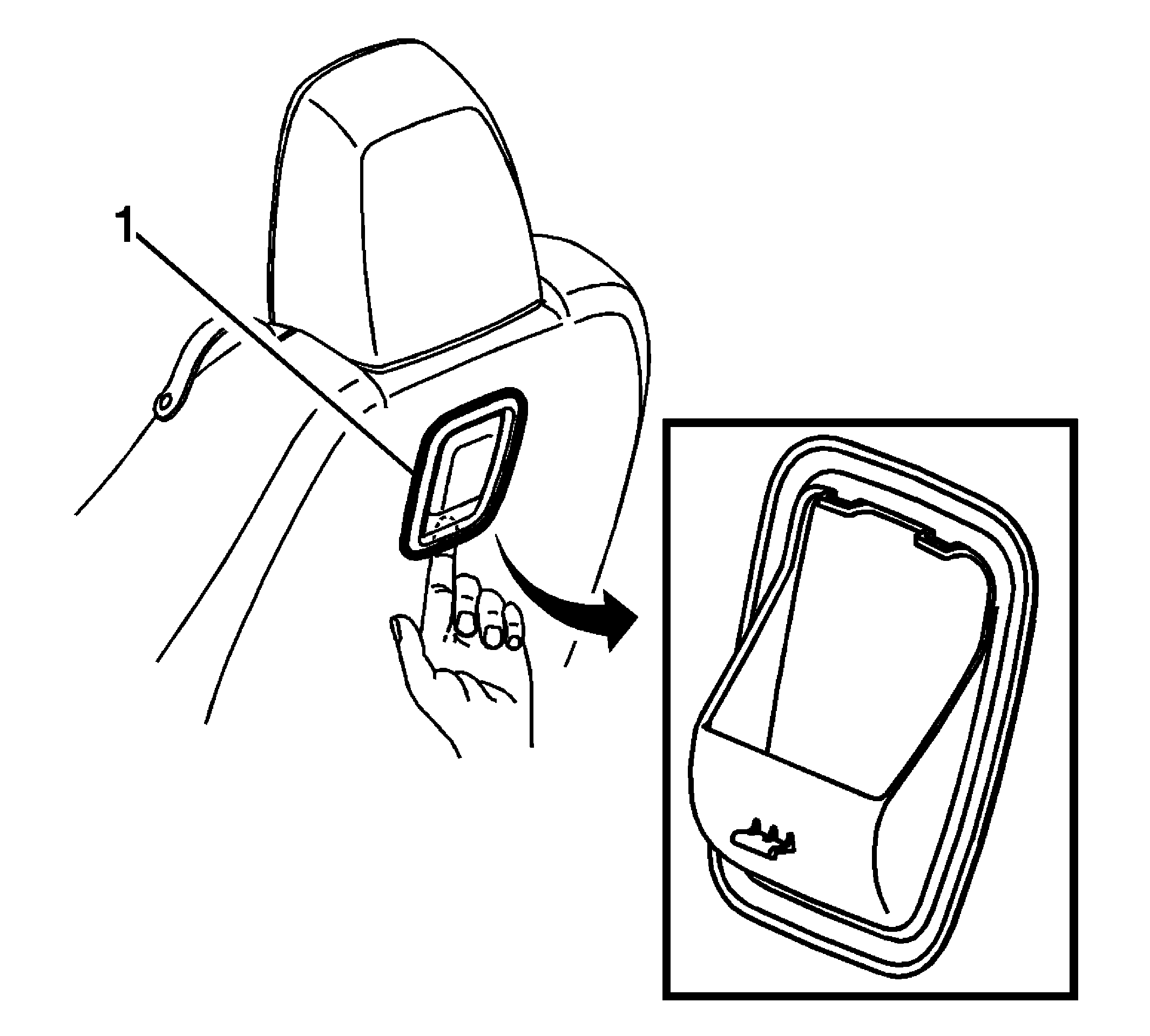

    Fig 1: Seat Back Cushion Latch Release Lever Bezel
    GM2549320Courtesy of GENERAL MOTORS COMPANY
  1. Slide a flat bladed tool or a finger it between the handle bezel (1) and cushion cover until you can push the bezel bottom snap up to unlatch it from the handle housing.

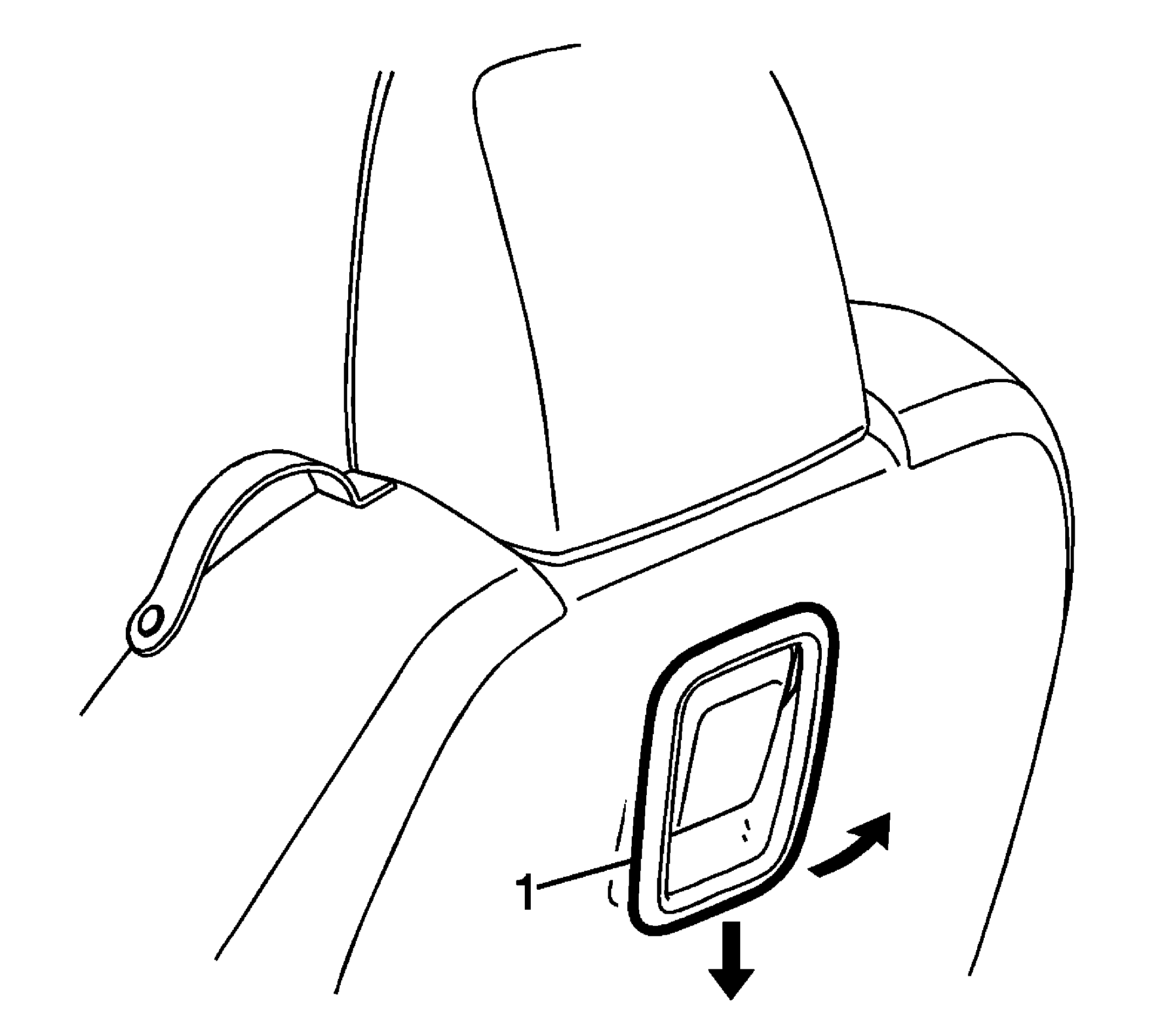

    2. Fig 2: Seat Back Cushion Latch Release Lever Bezel Removal Direction
    GM2549323Courtesy of GENERAL MOTORS COMPANY
  2. Gently pull upward on the bottom of the bezel (1) and then pull downward on the bezel ever so slightly to separate the bezel from the two upper handle housing teeth.

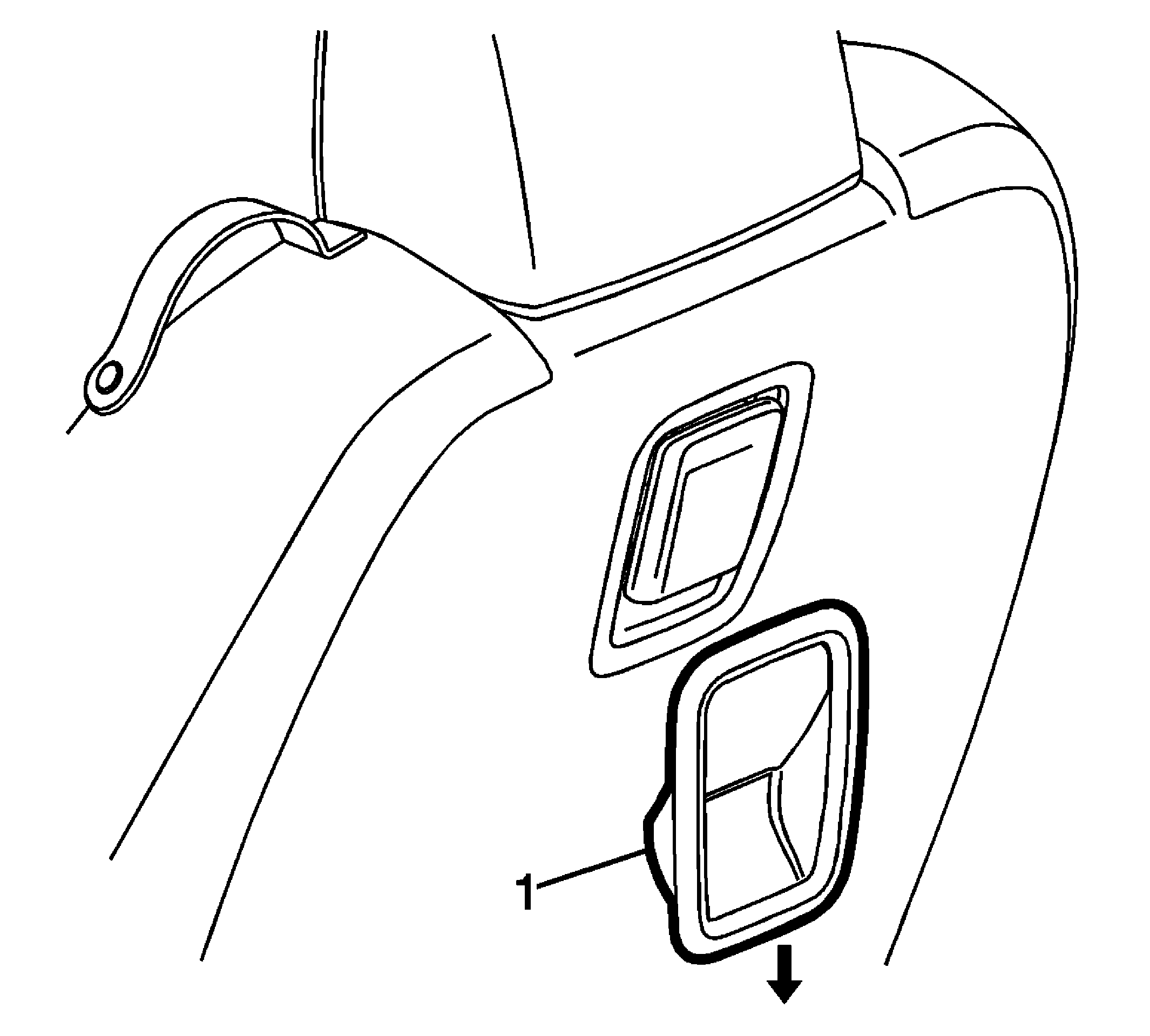

    3. Fig 3: Seat Back Cushion Latch Release Lever Bezel Removed
    GM2549324Courtesy of GENERAL MOTORS COMPANY
  3. Slide the bezel (1) out until it's completely removed from the handle housing and seat.
