Installation Procedure

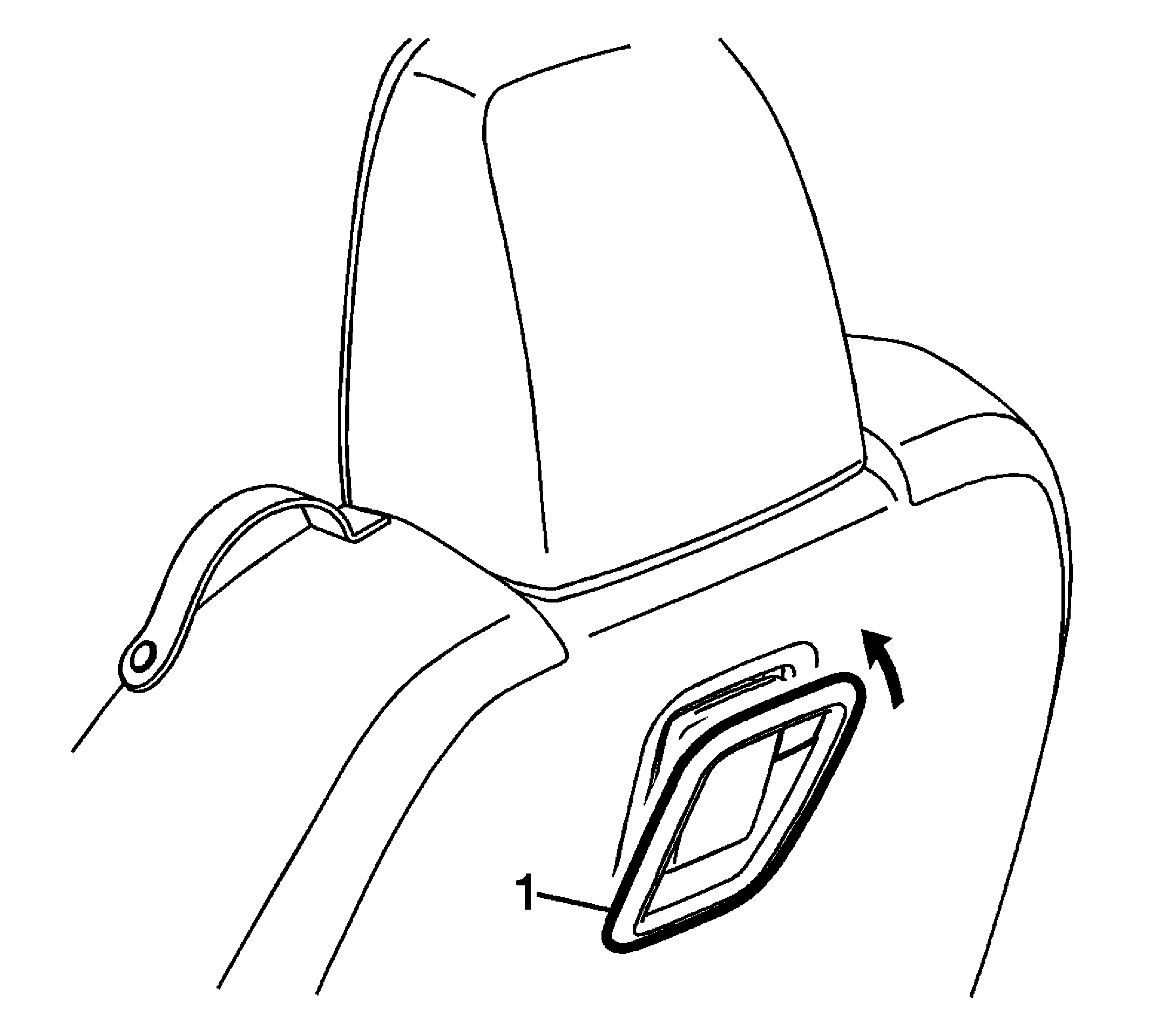

    Fig 1: Seat Back Cushion Latch Release Lever Bezel Installation Direction
    GM2549466Courtesy of GENERAL MOTORS COMPANY
  1. Install the bezel (1) bottom snap into the handle housing locator hole.
  2. Push forward on the top of the bezel to lock the two upper handle housing teeth into the top bezel locator holes.
