Driver or Passenger Seat Adjuster Handle Replacement

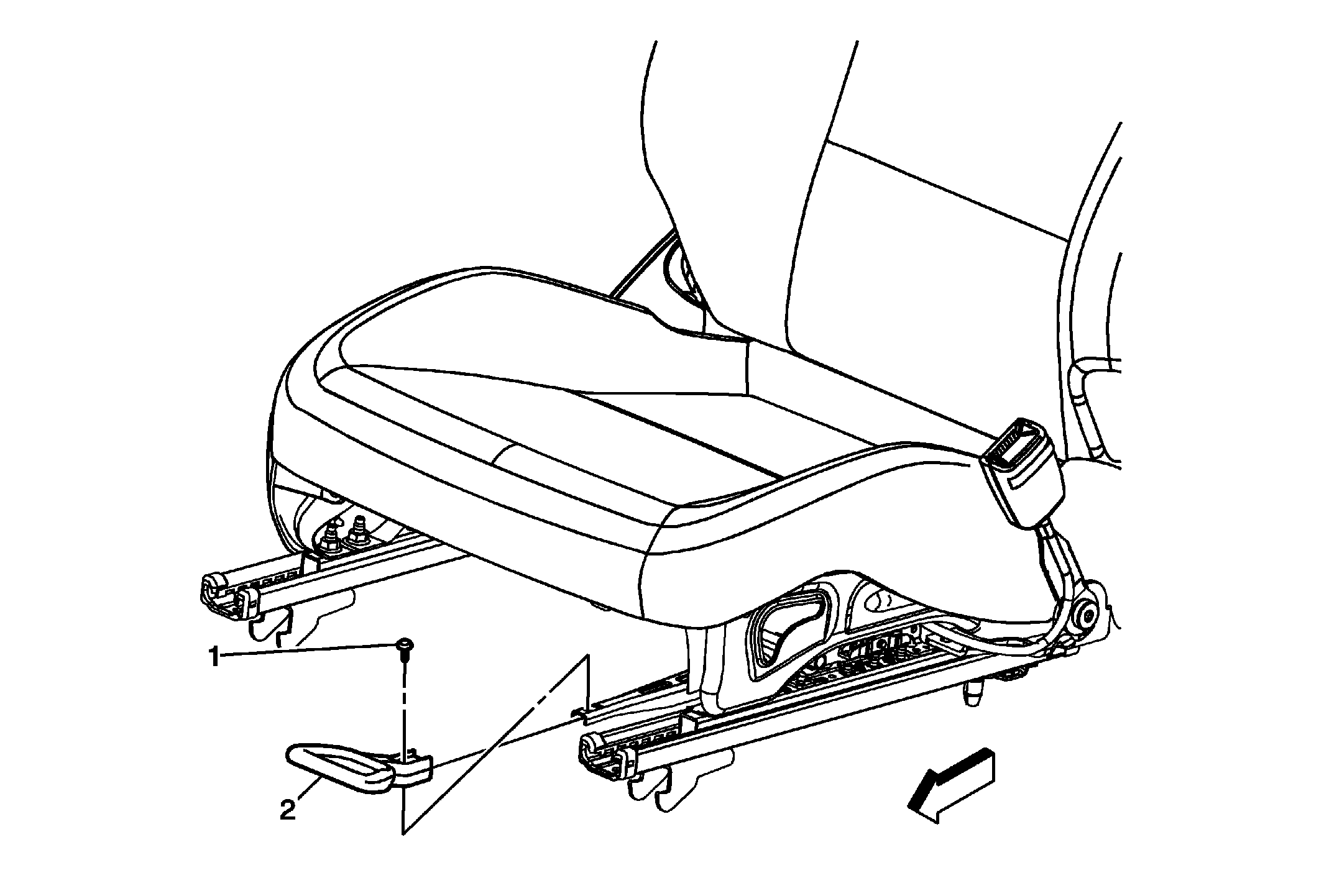

Fig 1: Front Seat Adjuster Handle And Retainer
GM2198820Courtesy of GENERAL MOTORS COMPANY
Driver or Passenger Seat Adjuster Handle Replacement

Callout Component Name
1 Seat Adjuster Handle Retainer
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Seat Adjuster Handle
