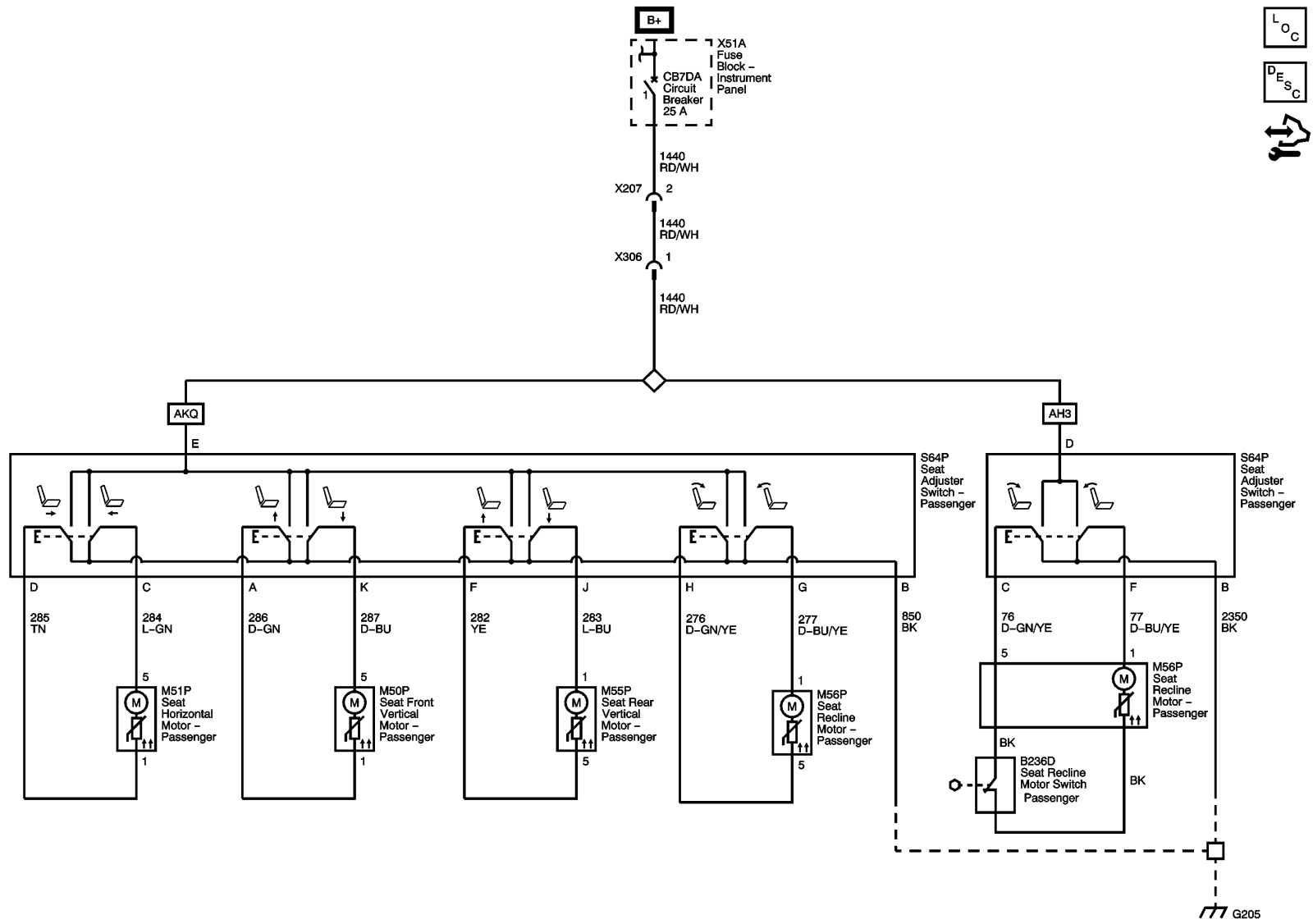

Home >> Chevrolet >> 2012 >> Camaro LS, Standard Trans >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Seats >> Power Seat System >> Wiring Schematics >> Passenger Seat Wiring Schematics >> Passenger Seat Adjustments
