Coat Hook Replacement (Coupe)

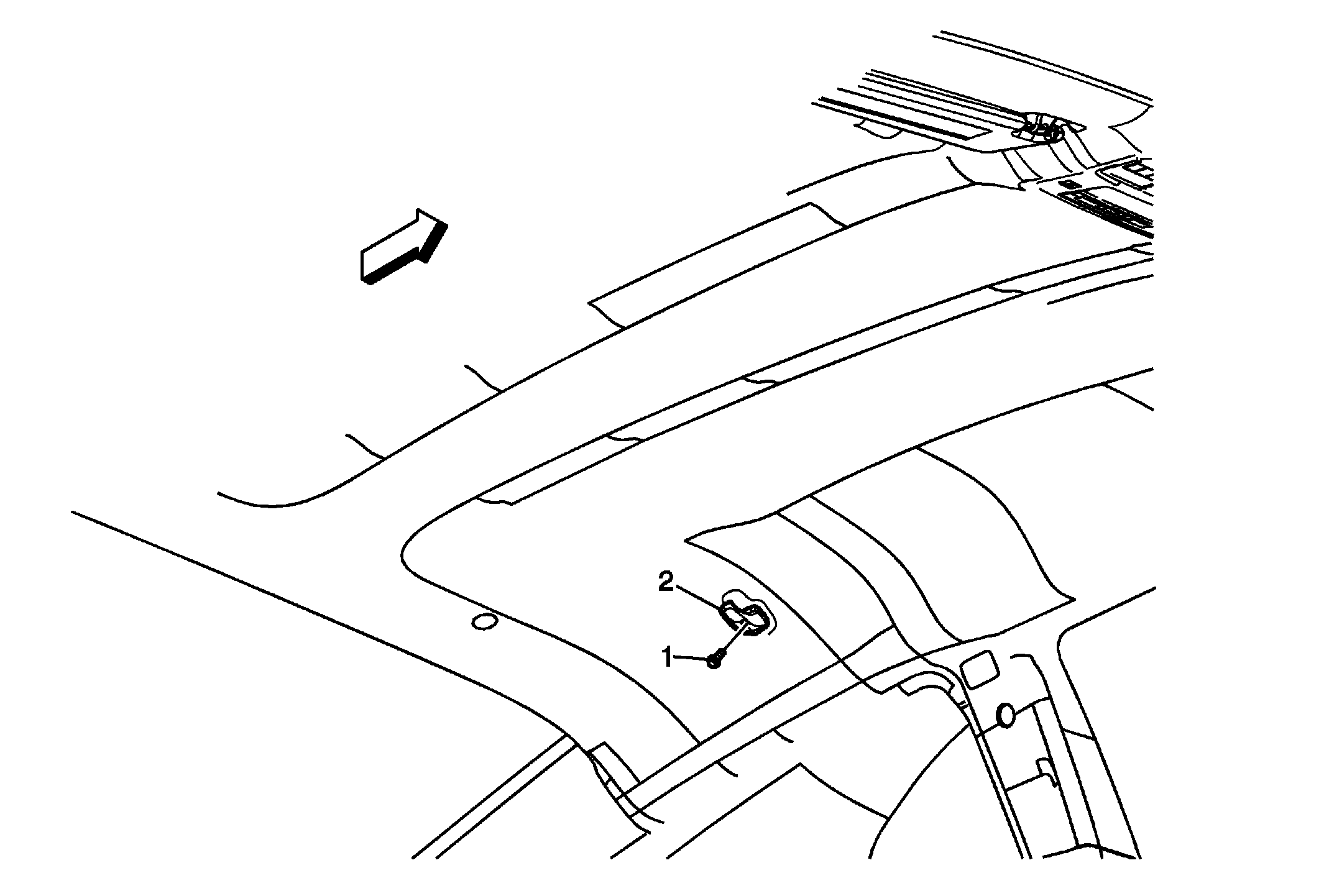

Fig 1: Coat Hook And Fastener
GM2207190Courtesy of GENERAL MOTORS COMPANY
Coat Hook Replacement (Coupe)

Callout Component Name
1 Coat Hook Fastener
CAUTION:

Refer to Fastener Caution .


Procedure
Use a small flat-bladed tool to open the integral coat hook cover to access the screw.
Tighten
6 N.m (53 lb in)
2 Coat Hook Assembly
