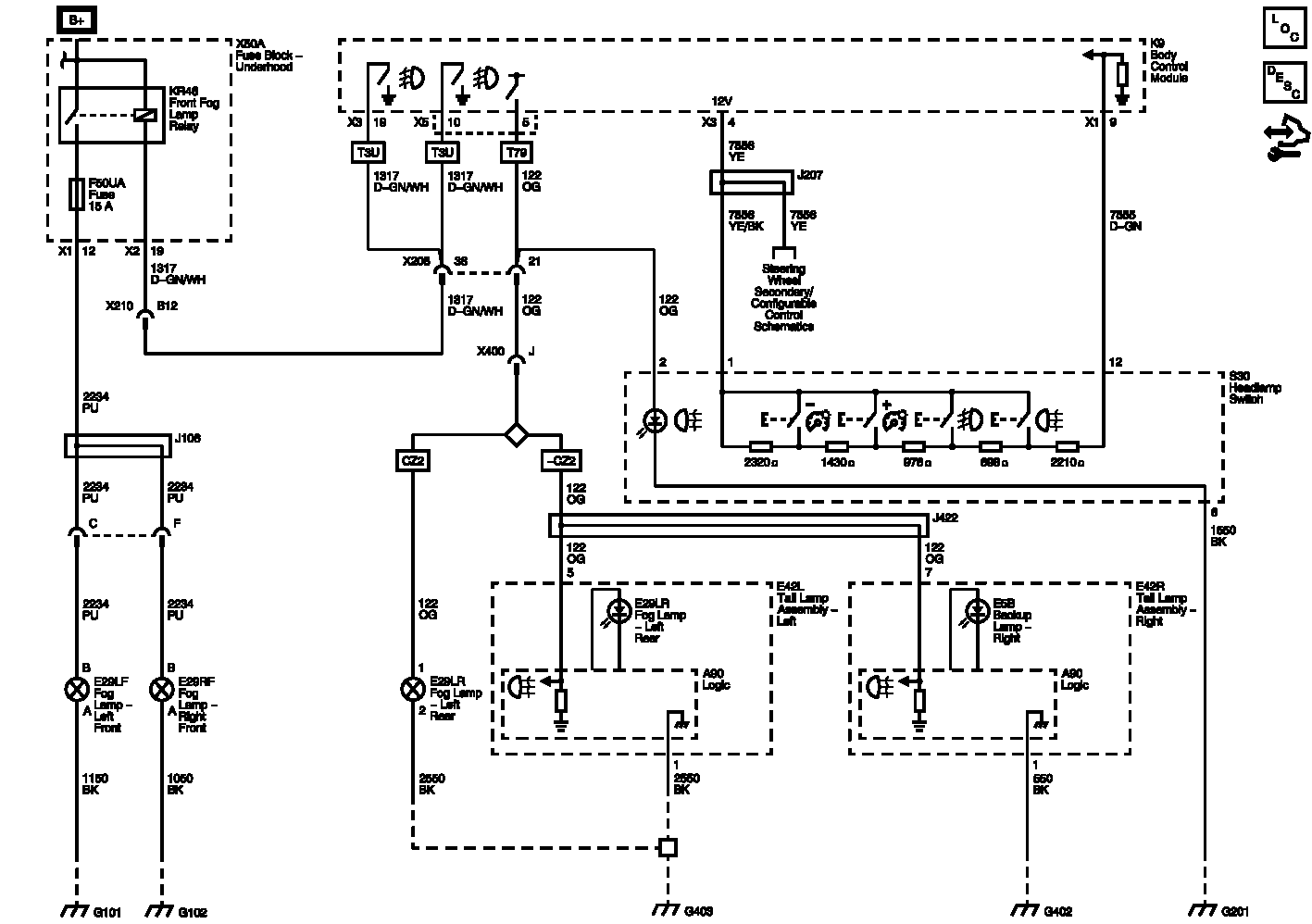

Home >> Chevrolet >> 2012 >> Camaro LS, Standard Trans >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Headlights >> Lighting System >> Wiring Schematics >> Fog Lights Wiring Schematics >> Front (T3U) and Rear (T79)
