Tail/Stop and Turn Signal Lamps (without T90)

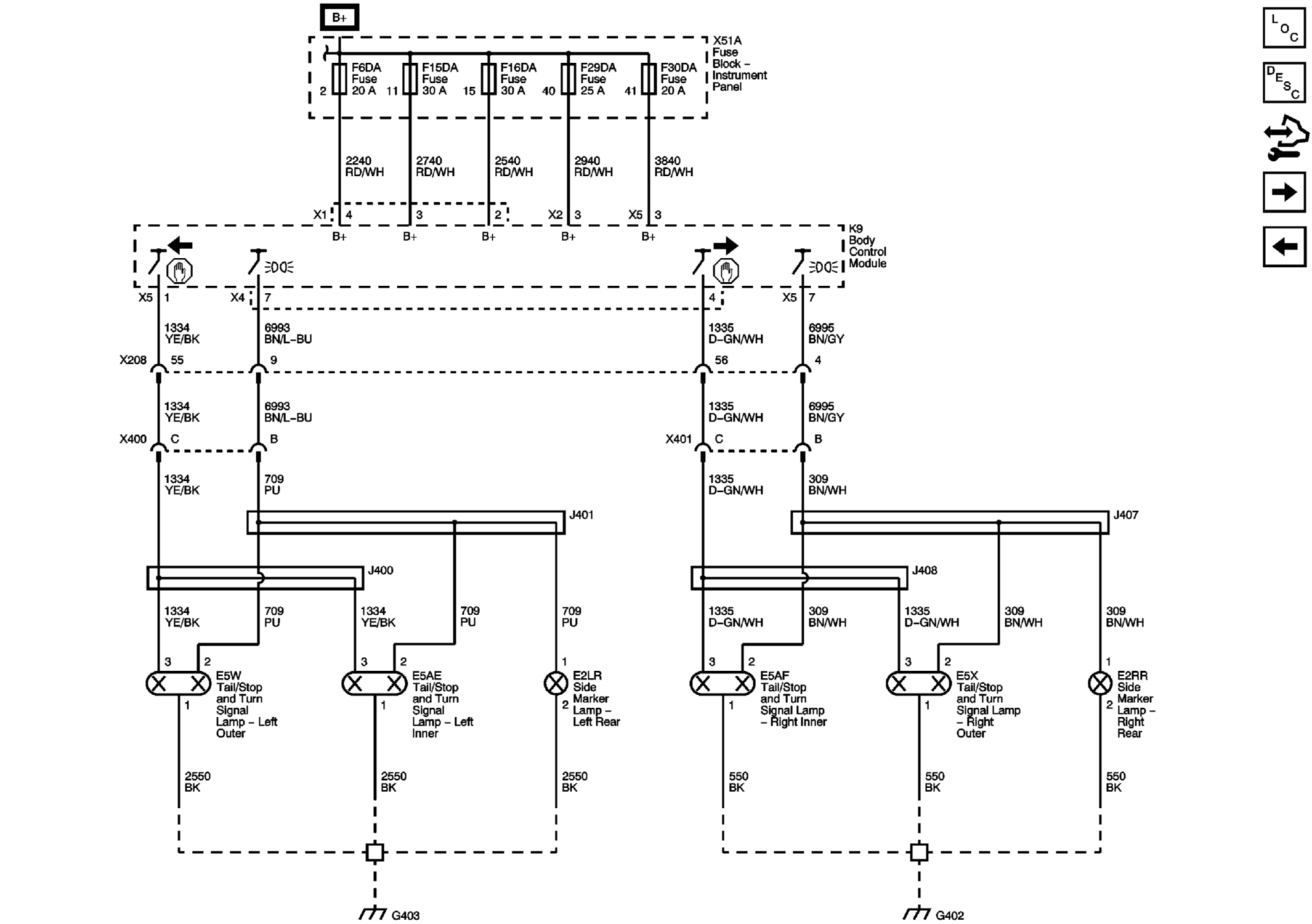

Fig 1: Tail/Stop and Turn Signal Lamps (without T90) Wiring Schematic

GM2624031
