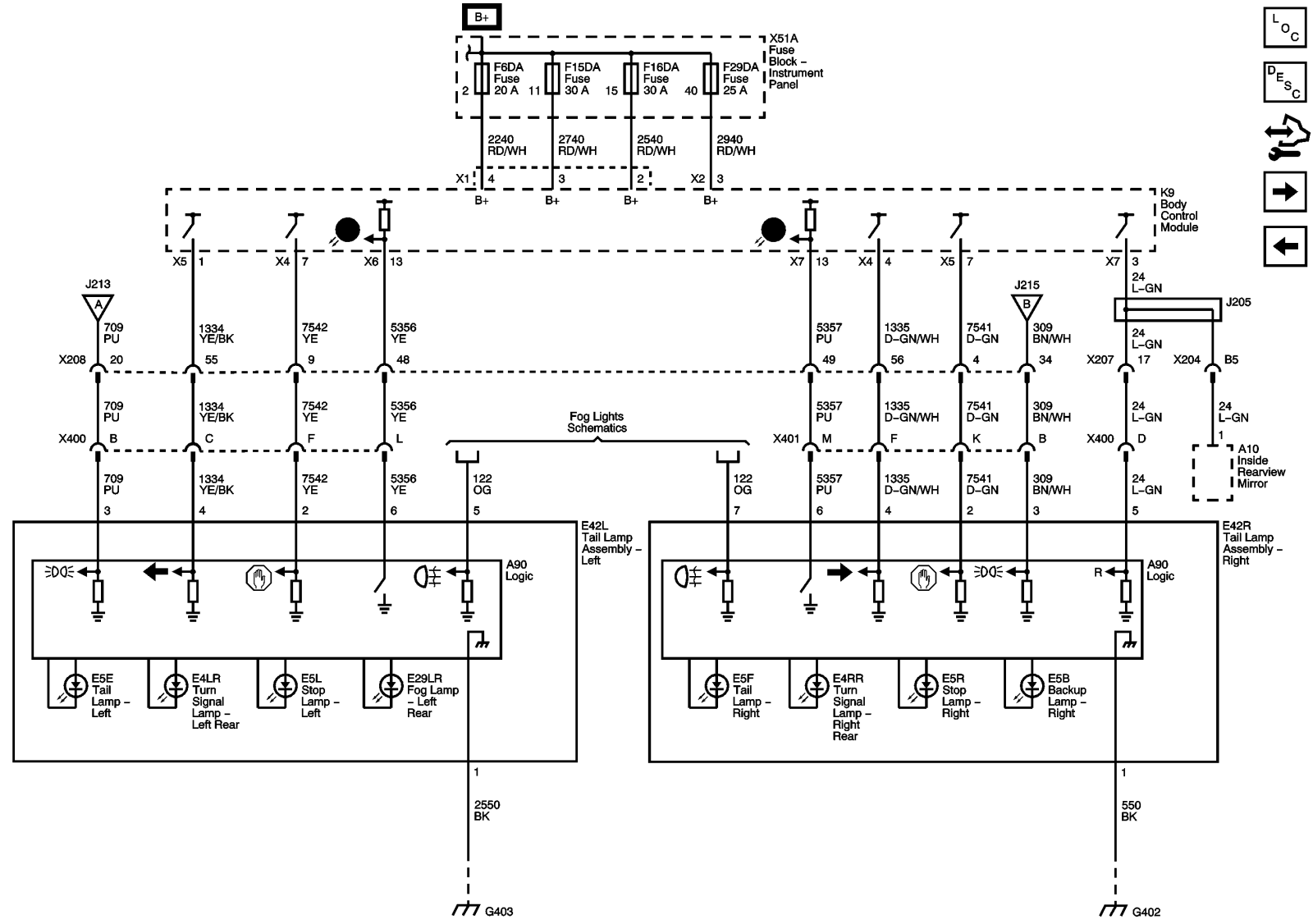

Home >> Chevrolet >> 2012 >> Camaro LS, Standard Trans >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Headlights >> Lighting System >> Wiring Schematics >> Exterior Lights Wiring Schematics >> Tail Lamp Assemblies (T90)
