Backup, Center High Mounted Stop Lamp and License Lamps

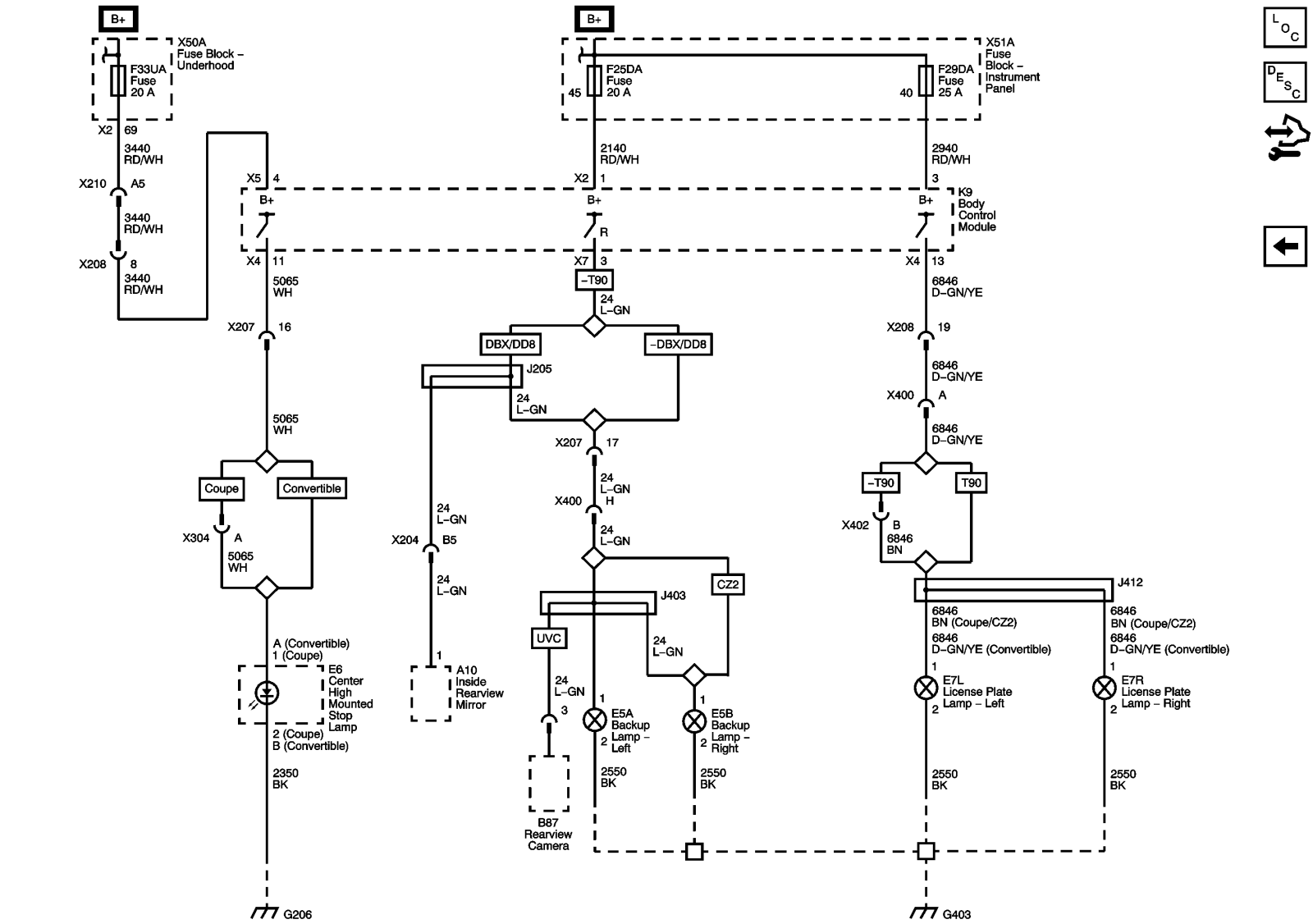

Fig 1: Backup, Center High Mounted Stop Lamp and License Lamps Wiring Schematic

GM2624042

Courtesy of GENERAL MOTORS COMPANY
