Rear Wheel Bearing and Hub Replacement

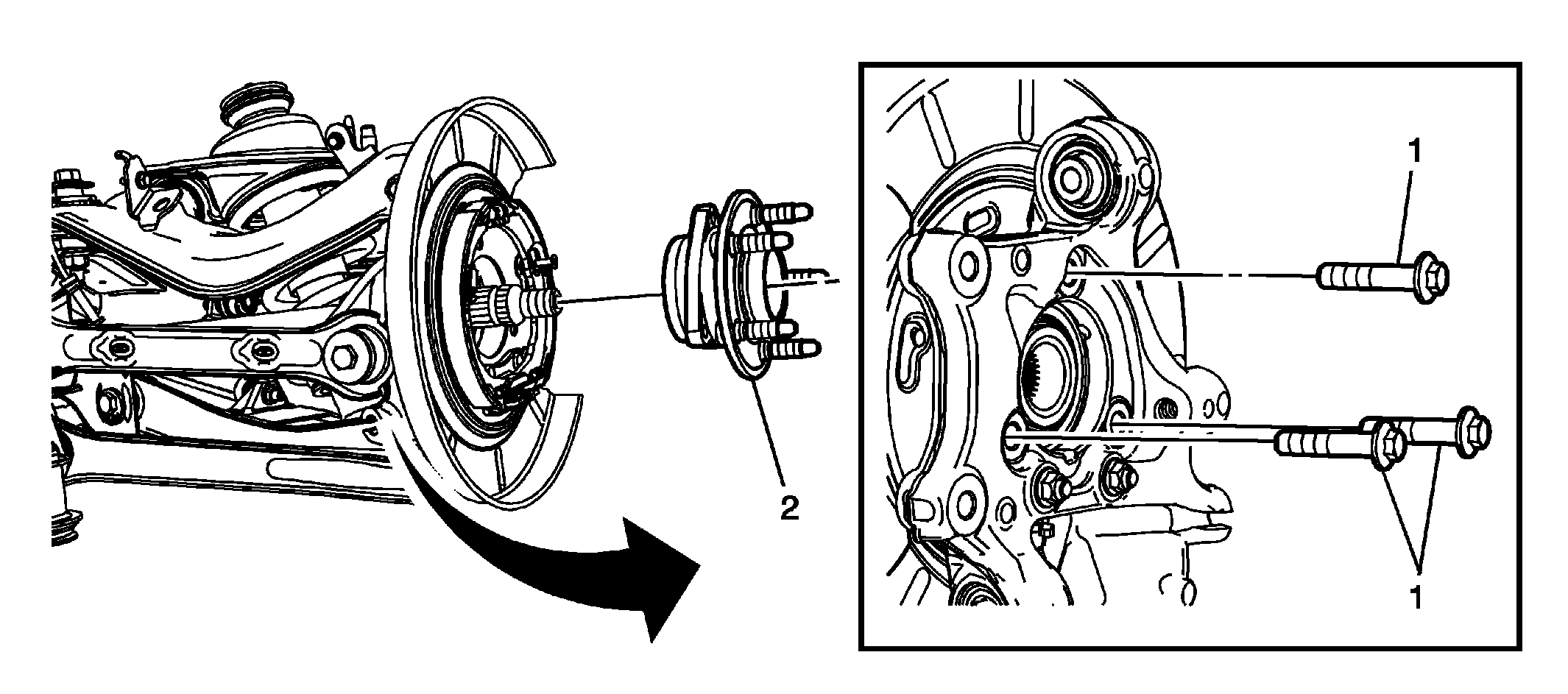

Fig 1: Rear Wheel Bearing & Hub
GM2193484Courtesy of GENERAL MOTORS COMPANY
Rear Wheel Bearing and Hub Replacement

Callout Component Name

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (w RT2) , Tire and Wheel Removal and Installation (w/o RT2) .
  3. Remove the rear brake rotor. Refer to Rear Brake Rotor Replacement (LFX) , Rear Brake Rotor Replacement (L99, LS3, LSA) .
  4. Remove the rear wheel speed sensor. Refer to Rear Wheel Speed Sensor Replacement .
  5. Separate the wheel drive shaft from the wheel bearing/hub assembly. Refer to Rear Wheel Drive Shaft Replacement .
1 Rear Wheel Bearing and Hub Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
115 N.m (85 lb ft)
2 Rear Wheel Bearing and Hub
