Window Motor - Passenger (X88 or Z88)
Window Motor - Passenger (X88 or Z88)

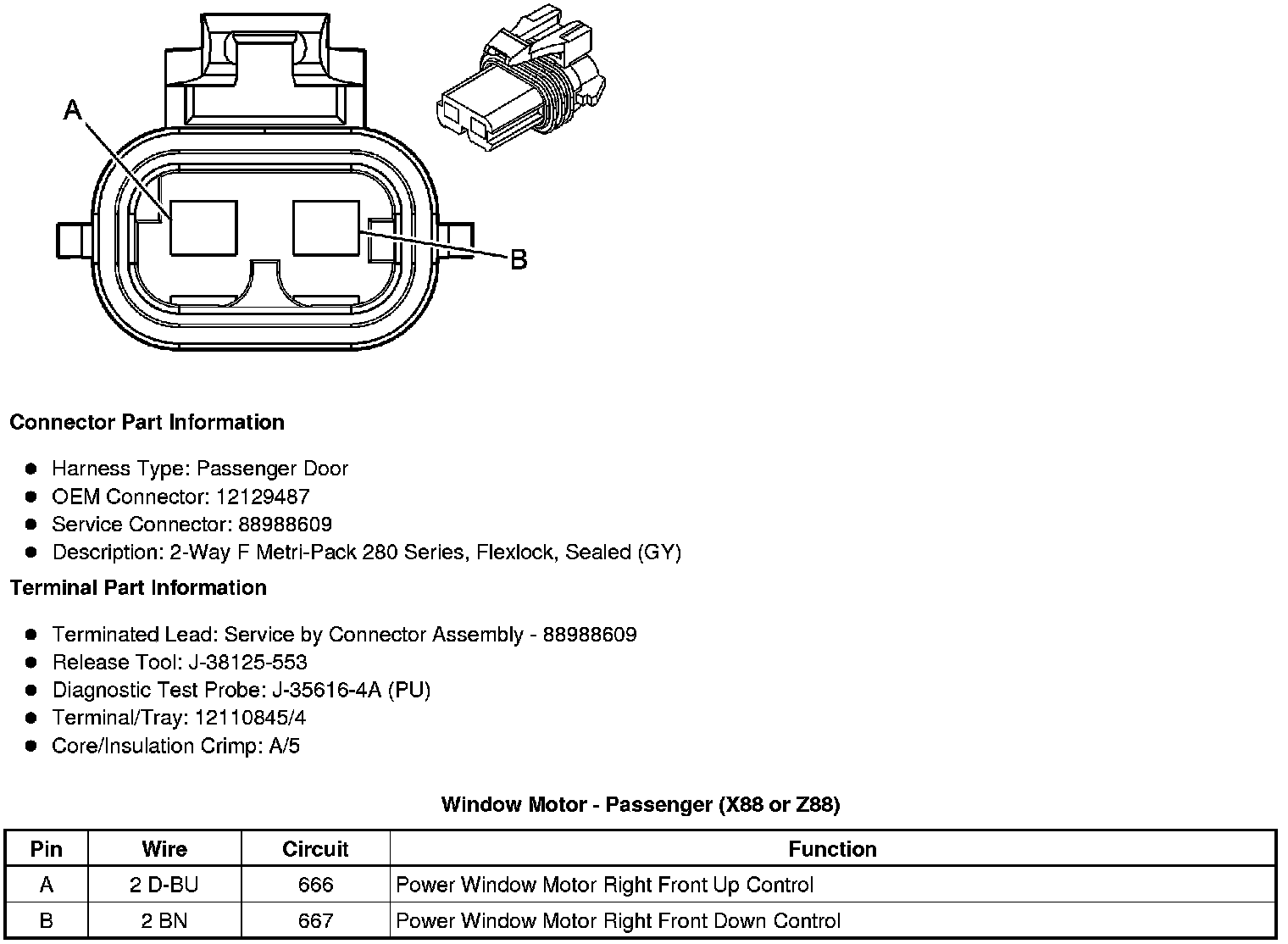

Component Connector End Views
Window Motor - Passenger (X88 or Z88)
