Transmission Parts Kit Specifications

Transmission Parts Kit Specifications

A/Trans Fluid Filter Kit 24236933

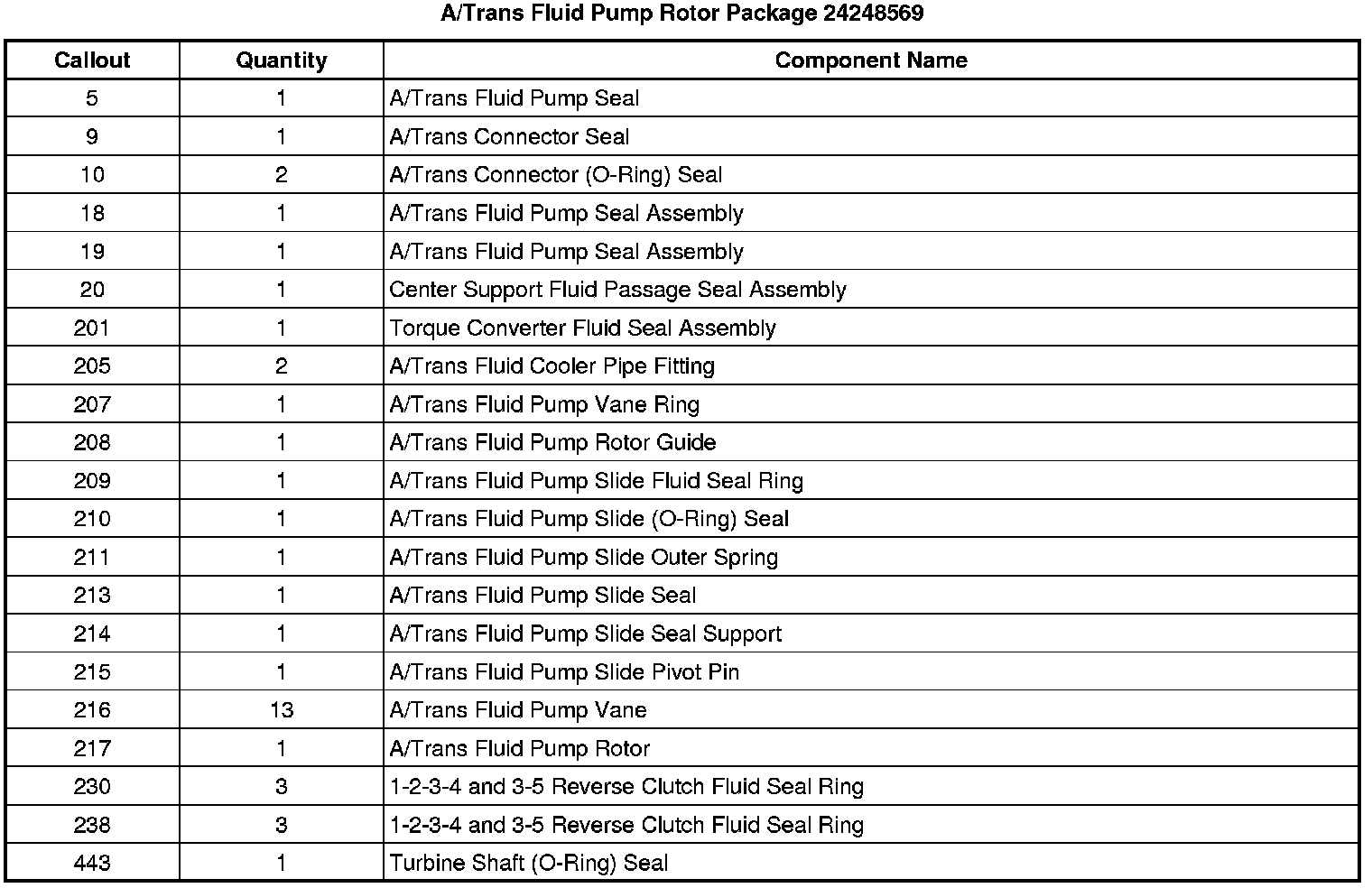

A/Trans Fluid Pump Rotor Package 24248569





Note: Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.

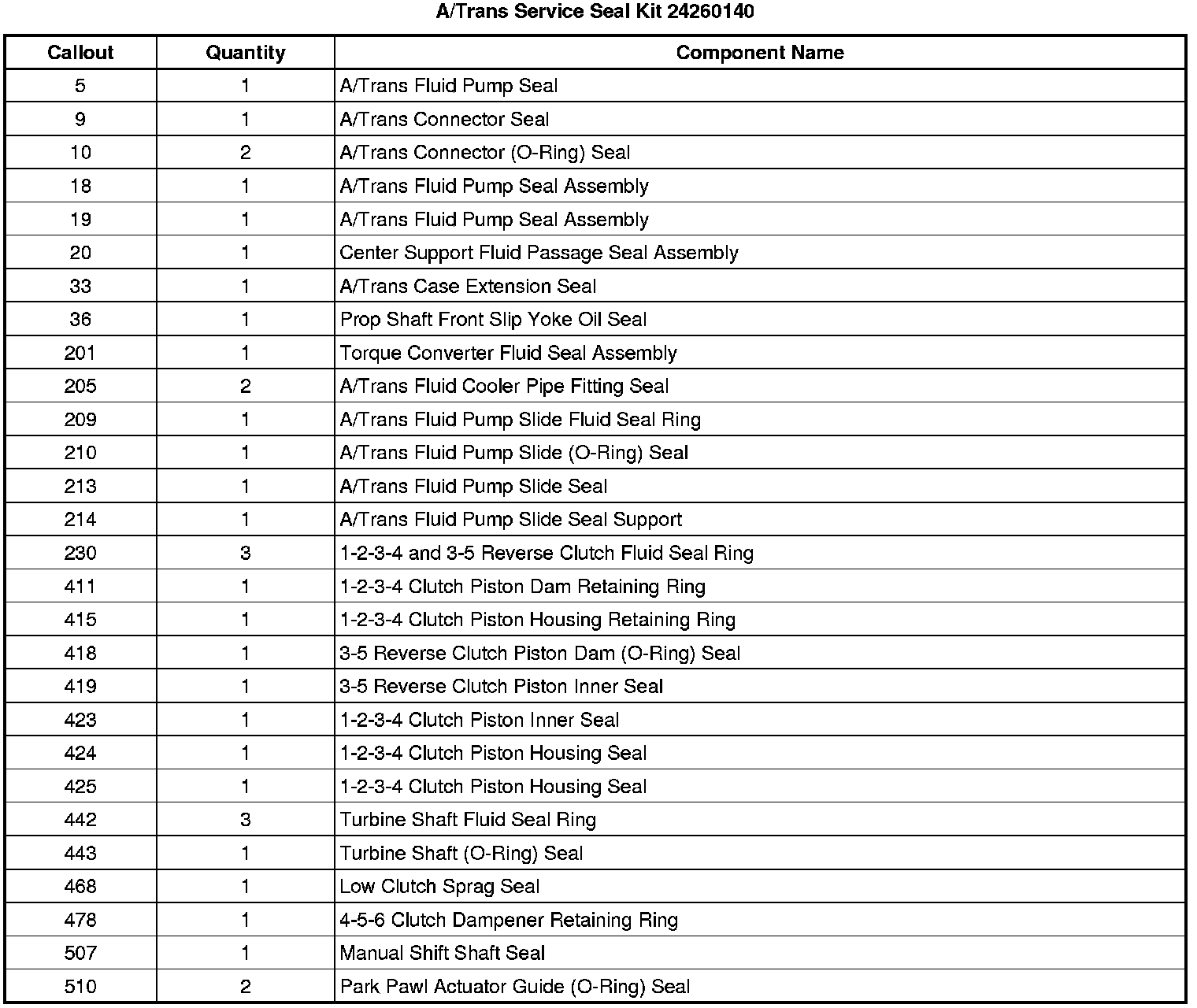

A/Trans Service Seal Kit 24260140










Clutch Plate Package 24252458





Note: Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.





A/Trans Electrical Connector Passage Sleeve Seal Kit 24236928





Note: Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.





A/Trans Control Solenoid Valve Assembly Seal Kit 24238913





Note: Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.





A/Trans Clutches Seal Kit 24252467





Note: Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.





A/Trans Fluid Pump Cover Package 24253061





Note: Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.





Low Clutch Sprag Kit 24252466





Note: Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.





Control Solenoid Valve Filter Plate Kit 24238925





Note: Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.





Retaining Ring Package 24260138





Note: Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.





1-2-3-4 & 3-5 Reverse Clutch Fluid Seal Ring Kit 24248559





Note: Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.





1-2-3-4 & 3-5 Reverse Clutch Kit 27260890










Manual Shift Shaft Hole Plug 19259216





Note: Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.
