Home >> Chevrolet >> 2012 >> Avalanche 2WD V8-5.3L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Diagrams >> Electrical Diagrams >> 2ML70 - Automatic Transmission

2ML70 - Automatic Transmission




Automatic Transmission Controls Schematics

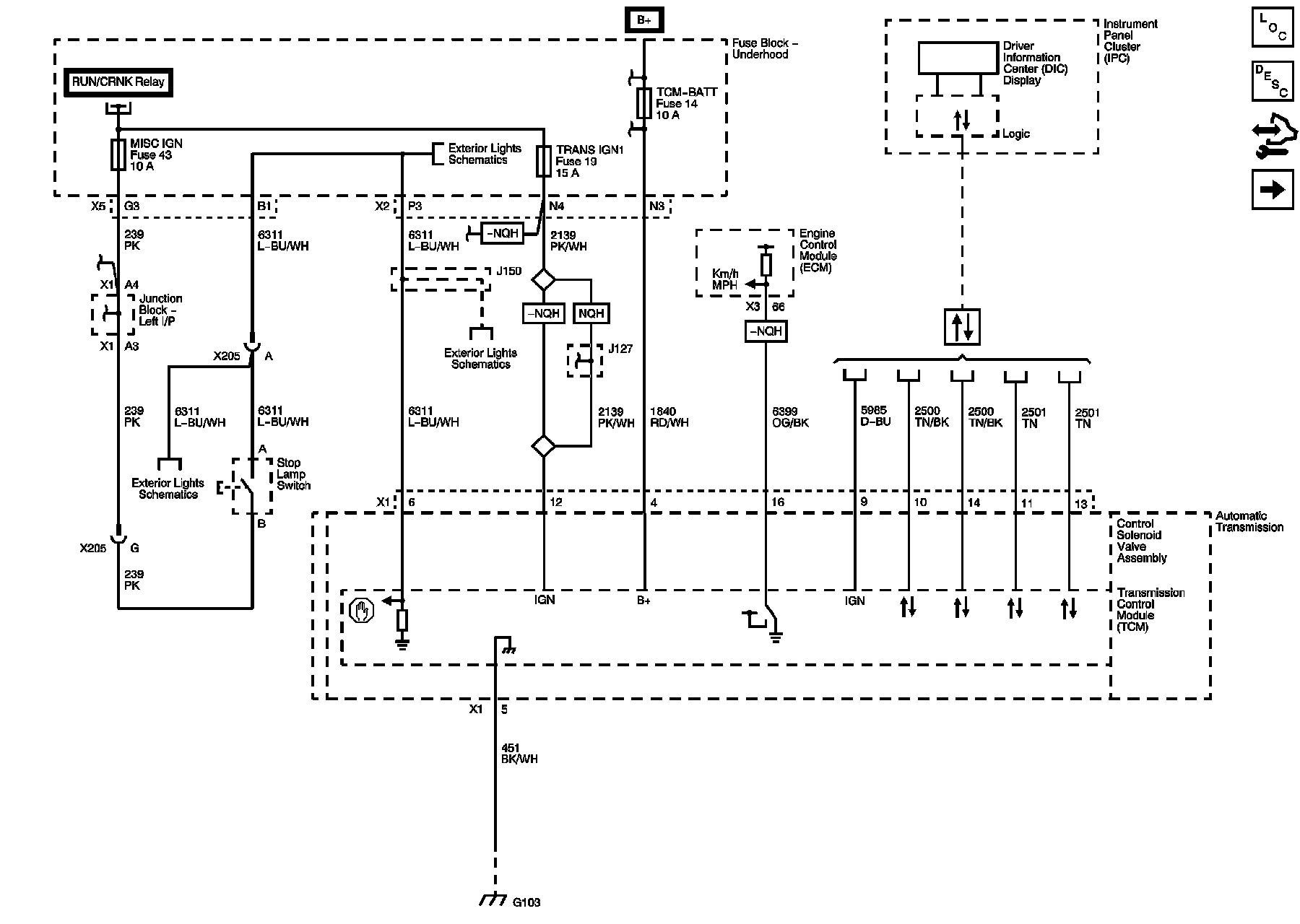

Module Power, Ground, Serial Data, and Stop Lamp Switch

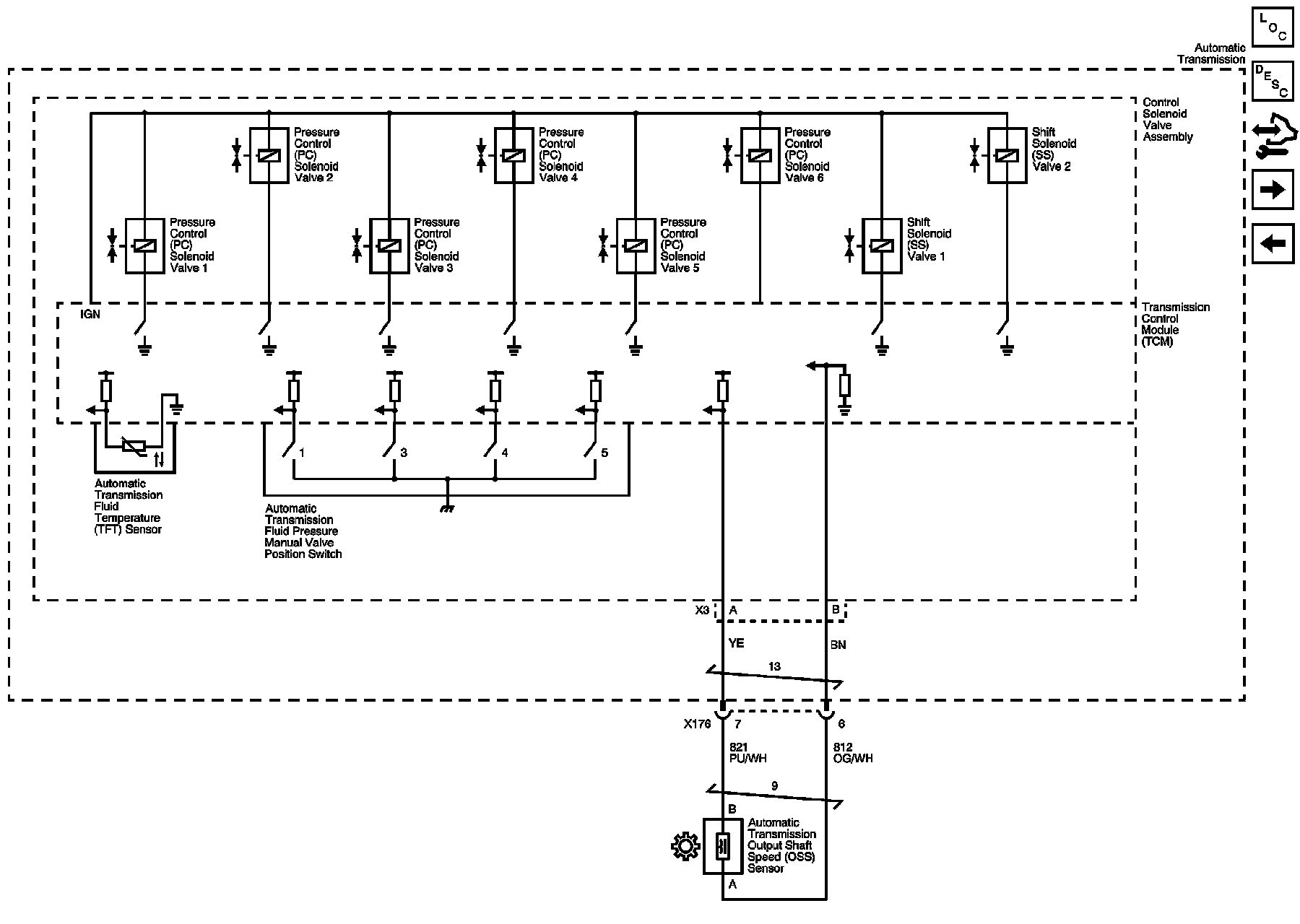

OSS, TFP, TPT, Pressure Controls and Shift Controls





Transmission Range Signals
