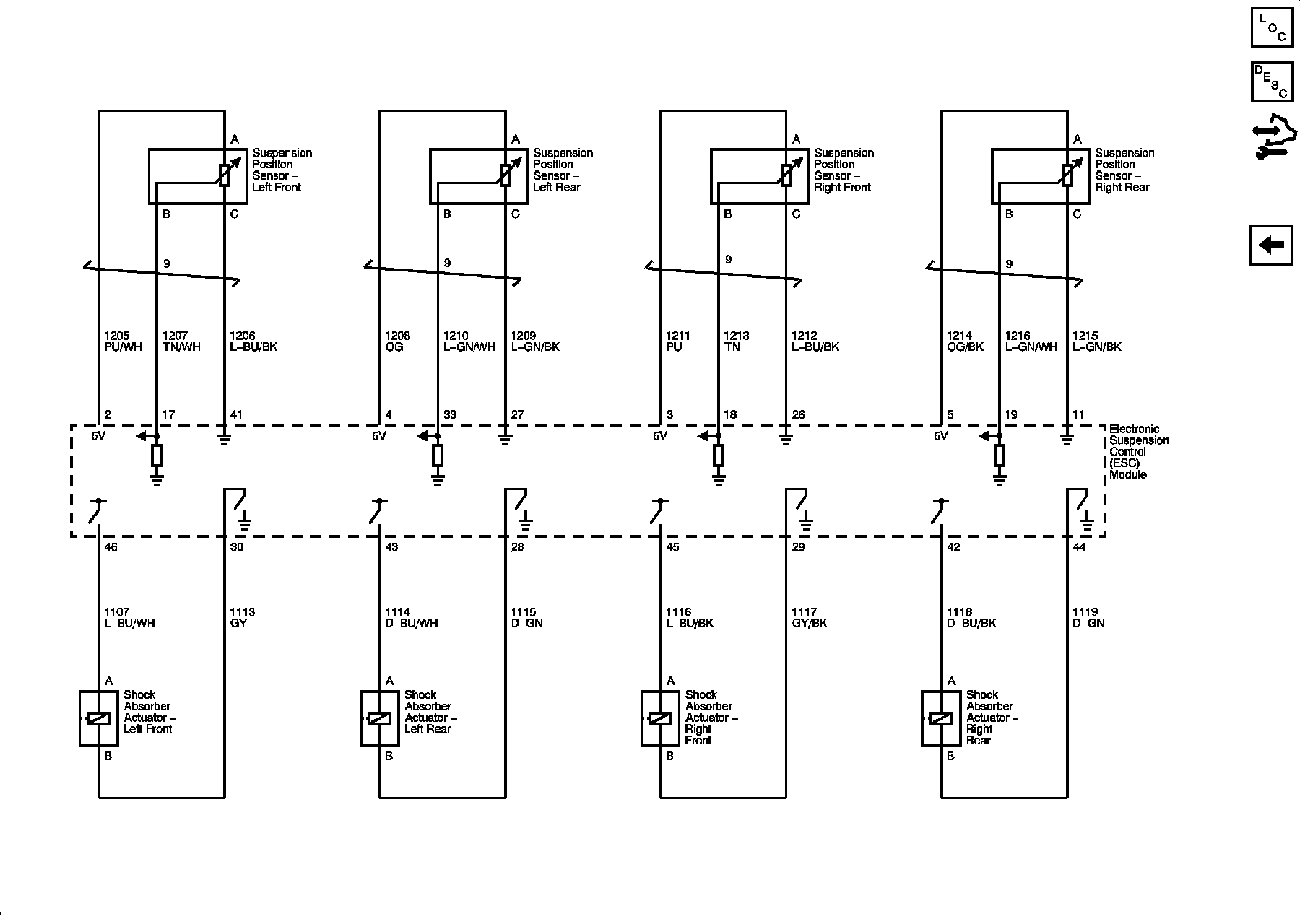

Home >> Chevrolet >> 2012 >> Avalanche 2WD V8-5.3L >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Diagrams >> Electrical Diagrams >> Electronic Suspension Control
