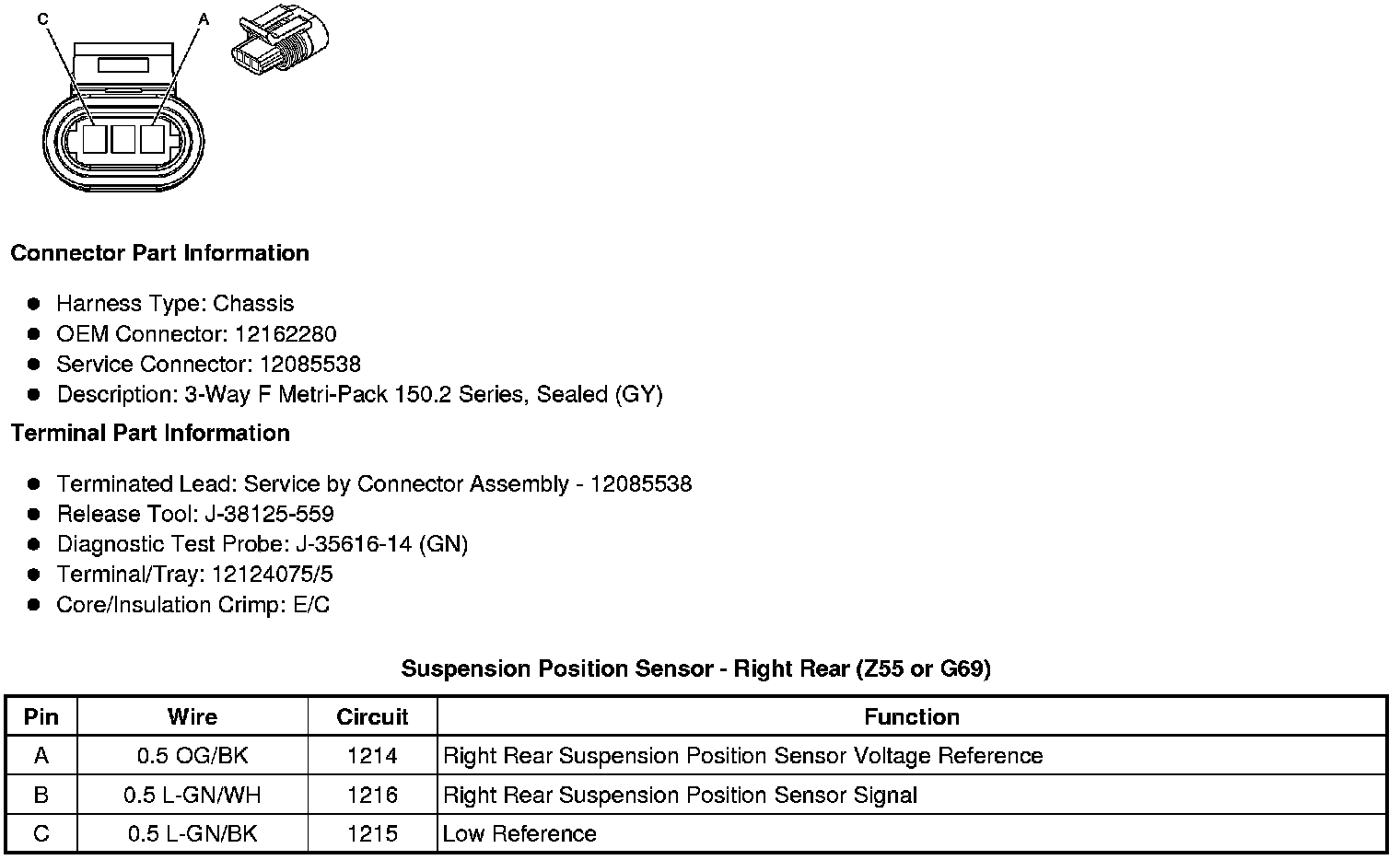

Suspension Position Sensor - Right Rear (Z55 or G69)
Suspension Position Sensor - Right Rear (Z55 or G69)
Component Connector End Views
Suspension
Position Sensor - Right Rear (Z55 or G69)
