Compressor/Pump: Diagrams

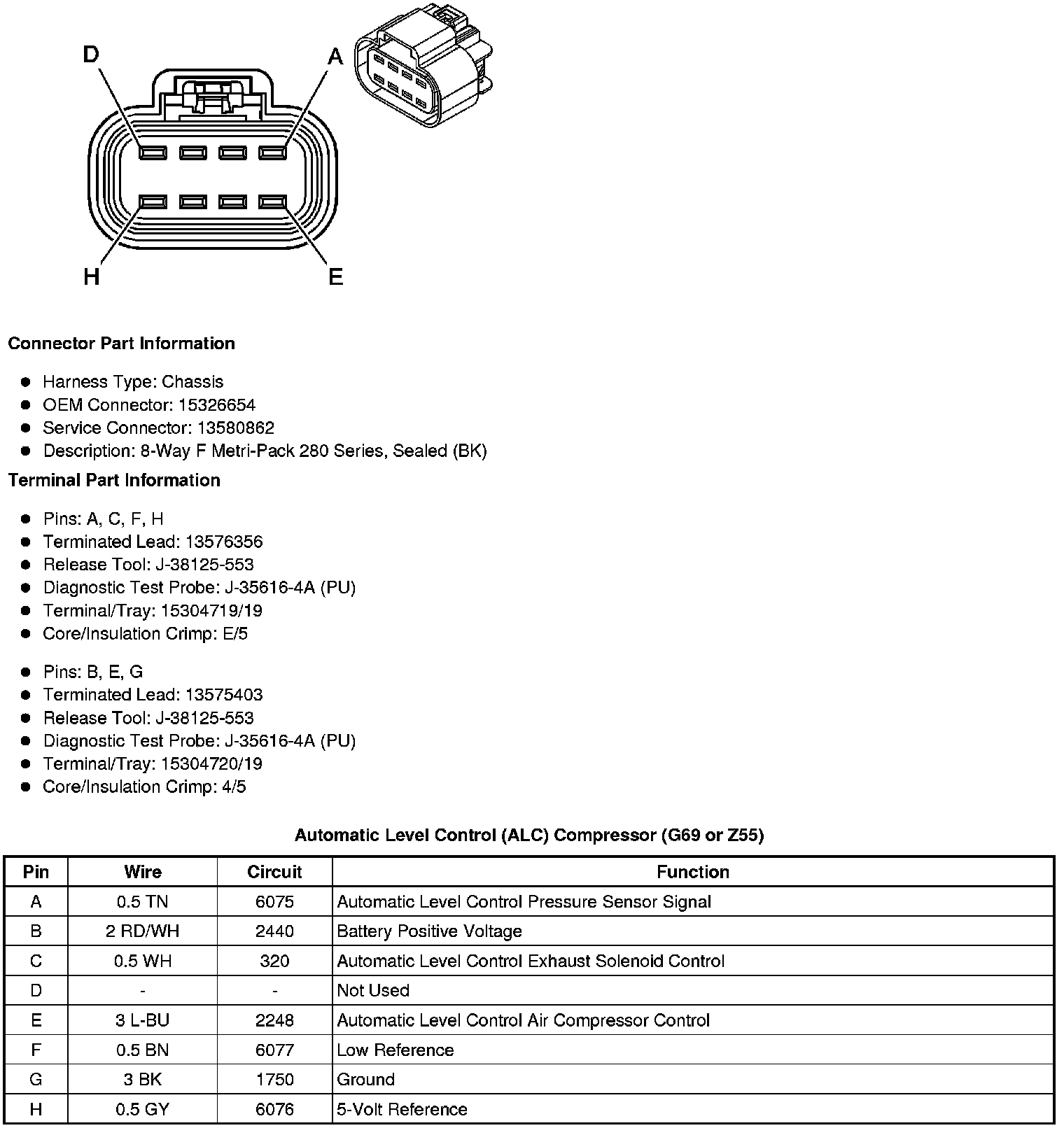

Component Connector End Views

Automatic Level Control (ALC) Compressor (G69 or Z55)
