Home >> Chevrolet >> 2012 >> Avalanche 2WD V8-5.3L >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Air Bag >> Service and Repair >> Removal and Replacement >> Roof Side Rail Inflatable Restraint Module Replacement (Rear Right)

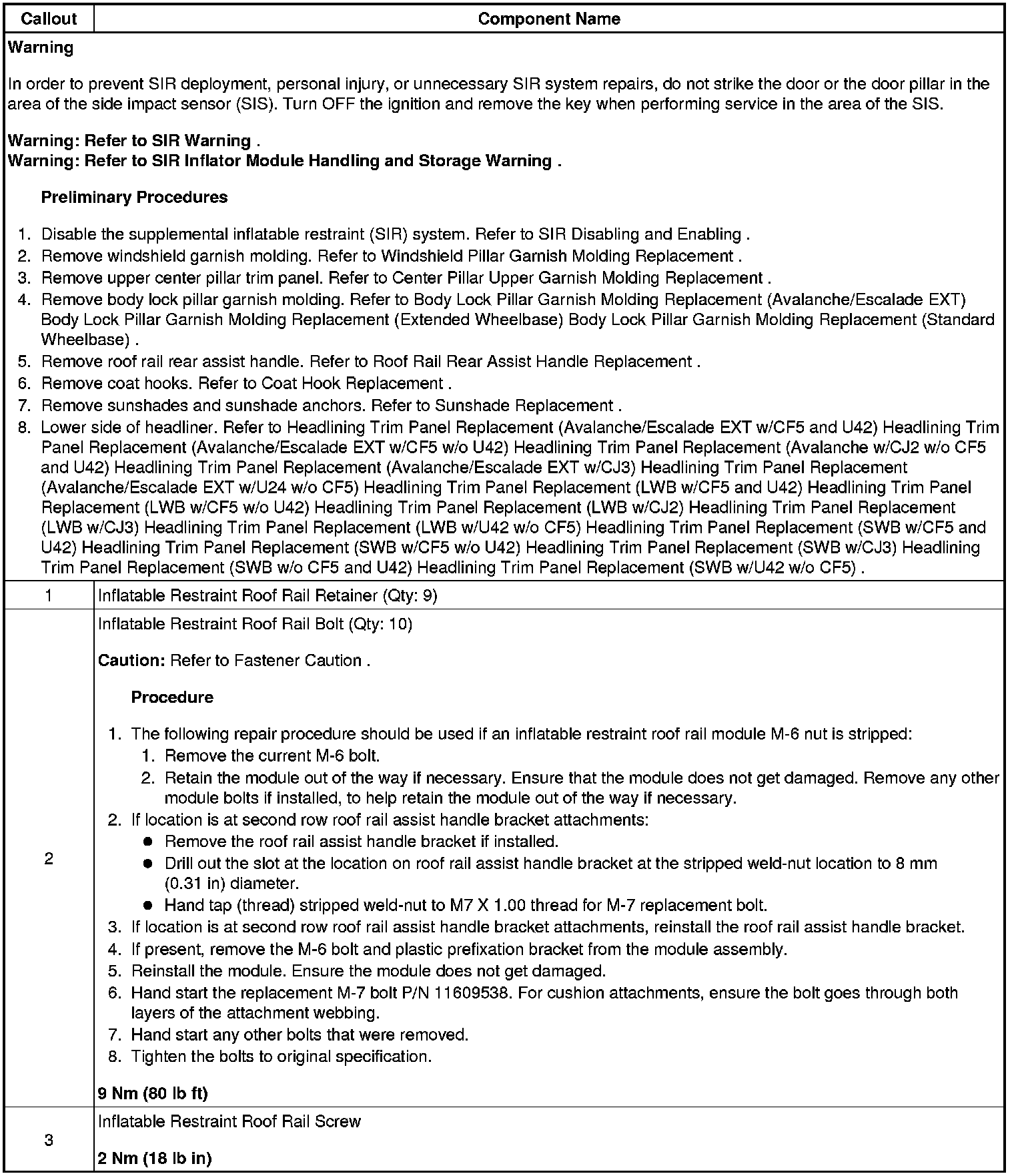

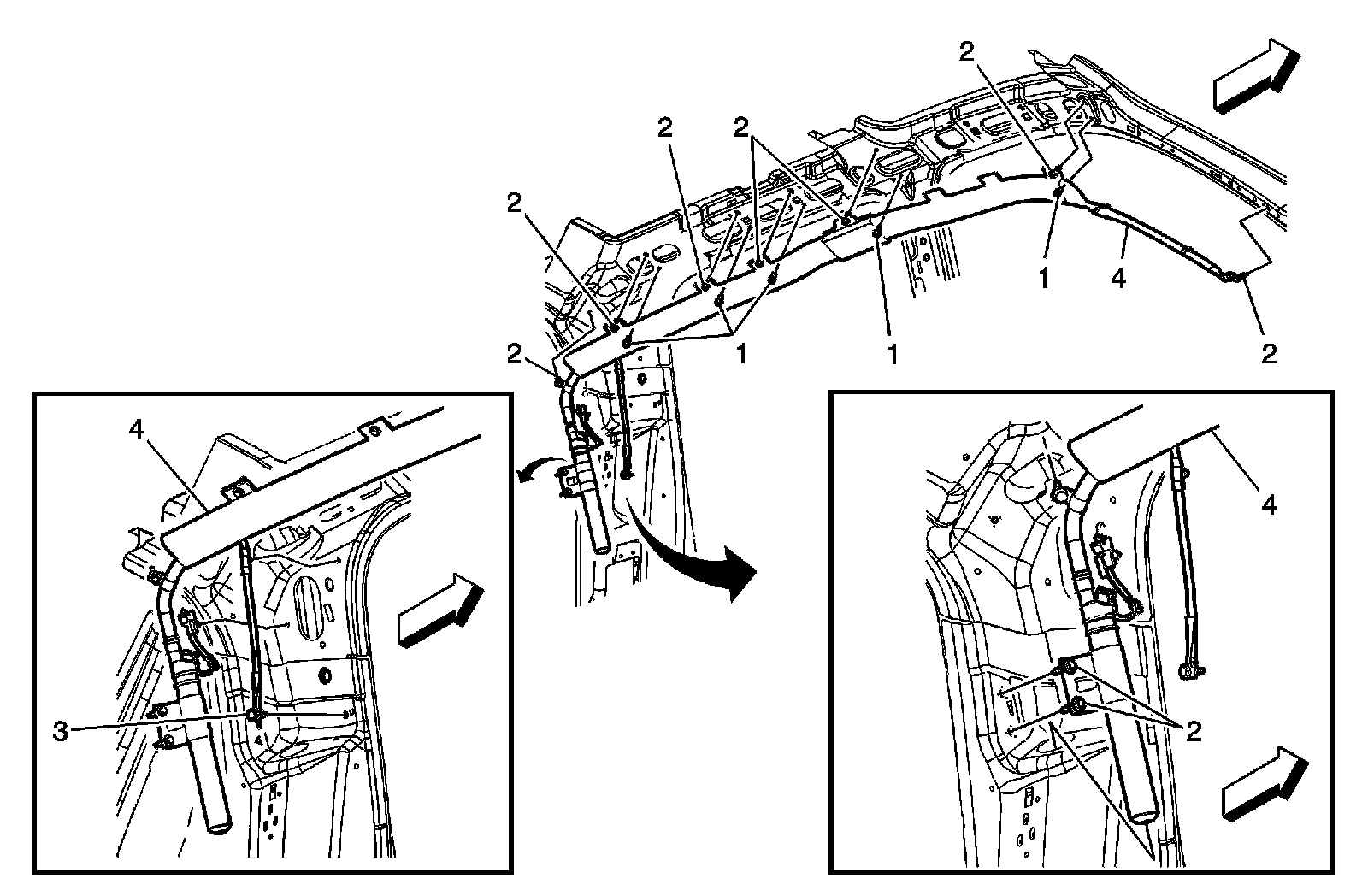

Roof Side Rail Inflatable Restraint Module Replacement (Rear Right)




Roof Side Rail Inflatable Restraint Module Replacement (Rear Right, Avalanche/Escalade EXT)
