Suspension Main Relay: Diagrams

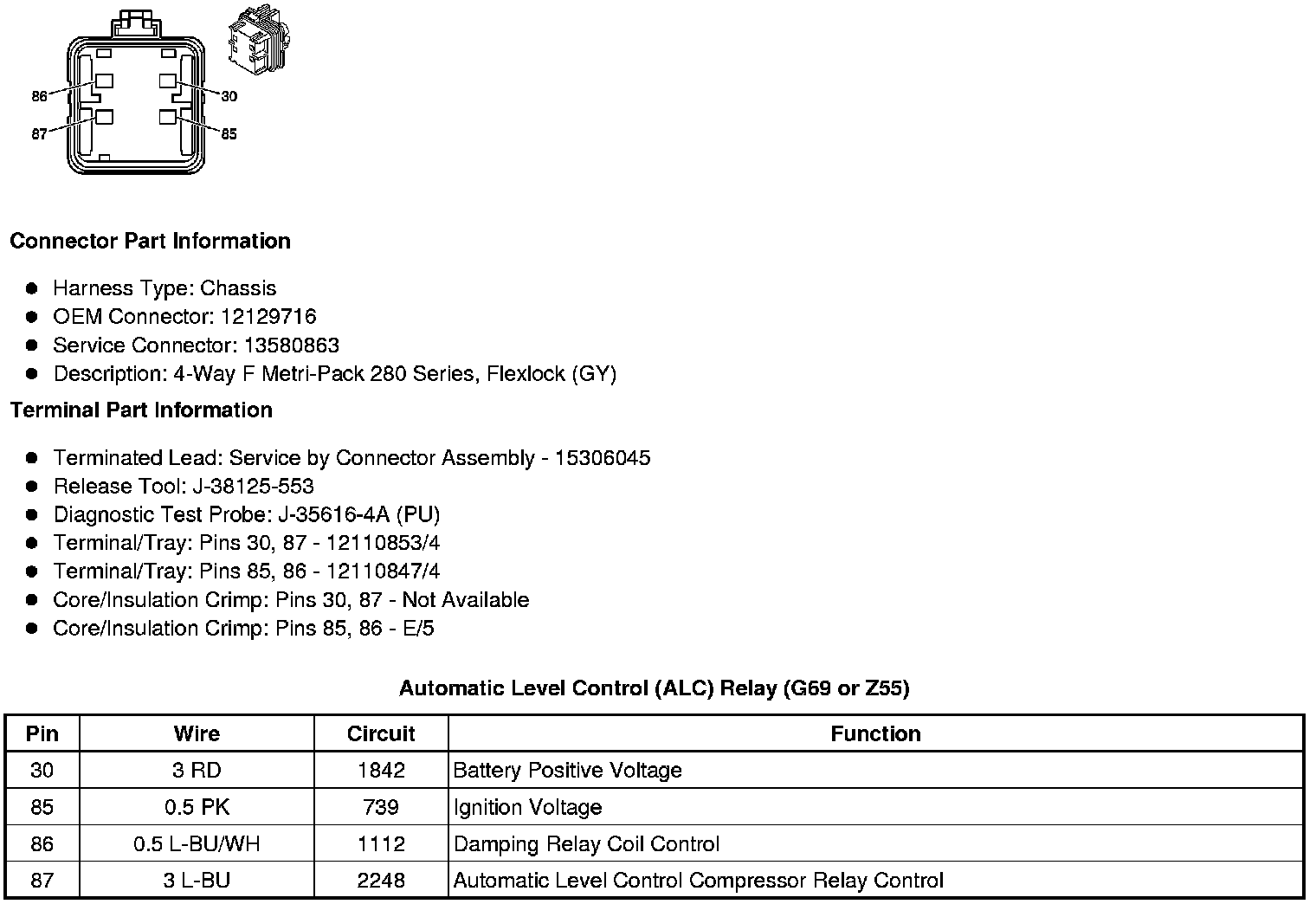

Component Connector End Views

Automatic Level Control (ALC) Relay (G69 or Z55)
