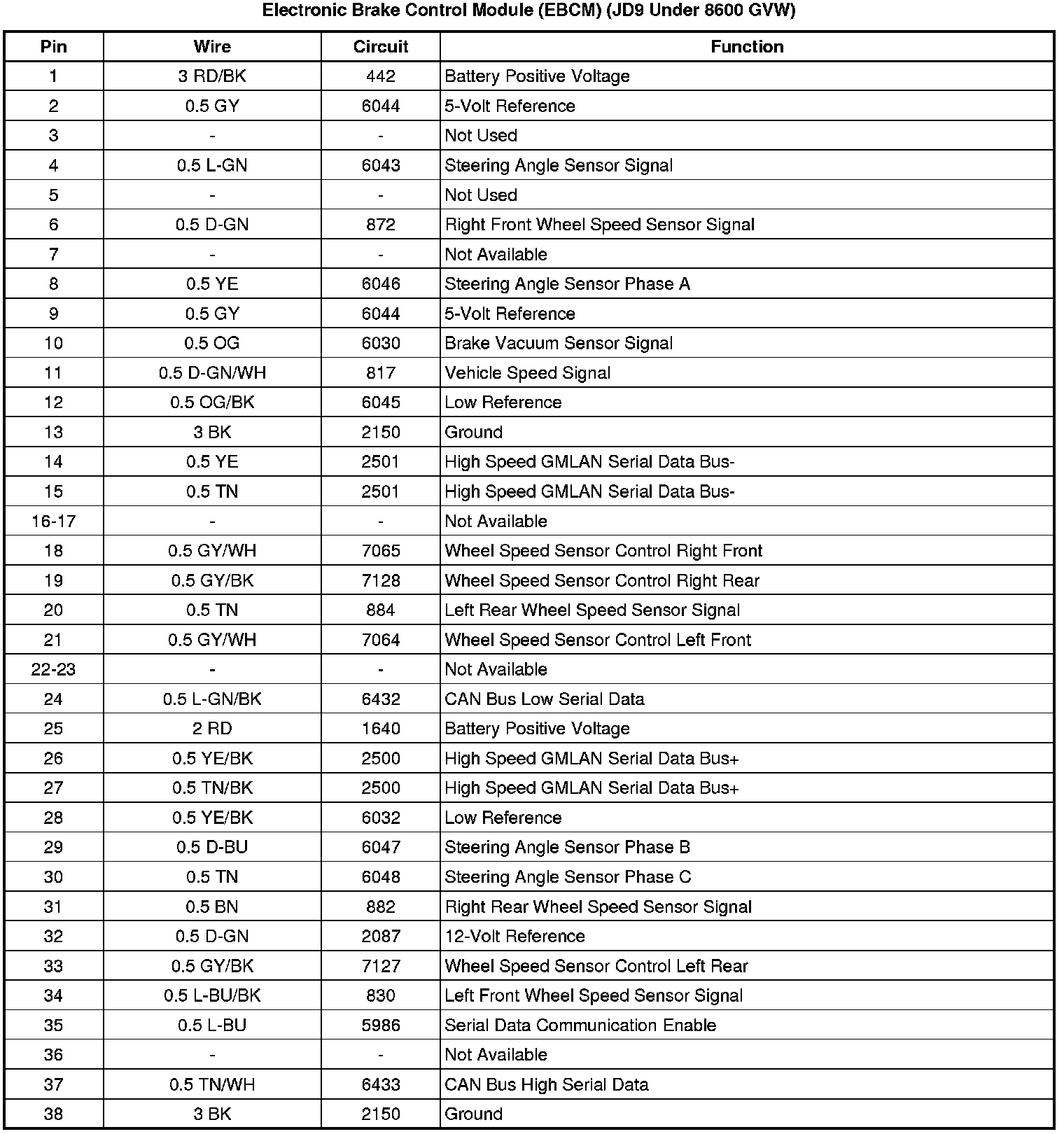

Electronic Brake Control Module (EBCM) (JD9 Under 8600 GVW)
Electronic Brake Control Module (EBCM) (JD9 Under 8600 GVW)

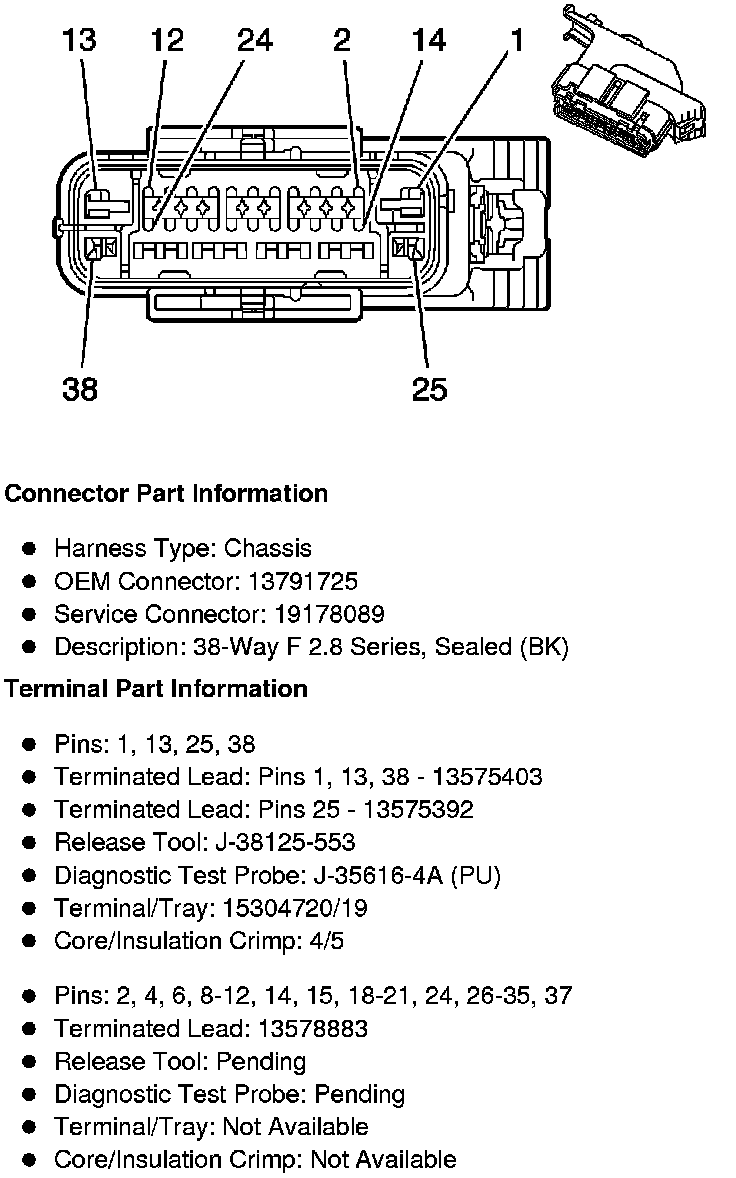

Component Connector End Views
Electronic Brake Control Module
(EBCM) (JD9 Under 8600 GVW)
