Fuel Pump Control Unit: Locations

Wheels/Vehicle Underbody Component Views

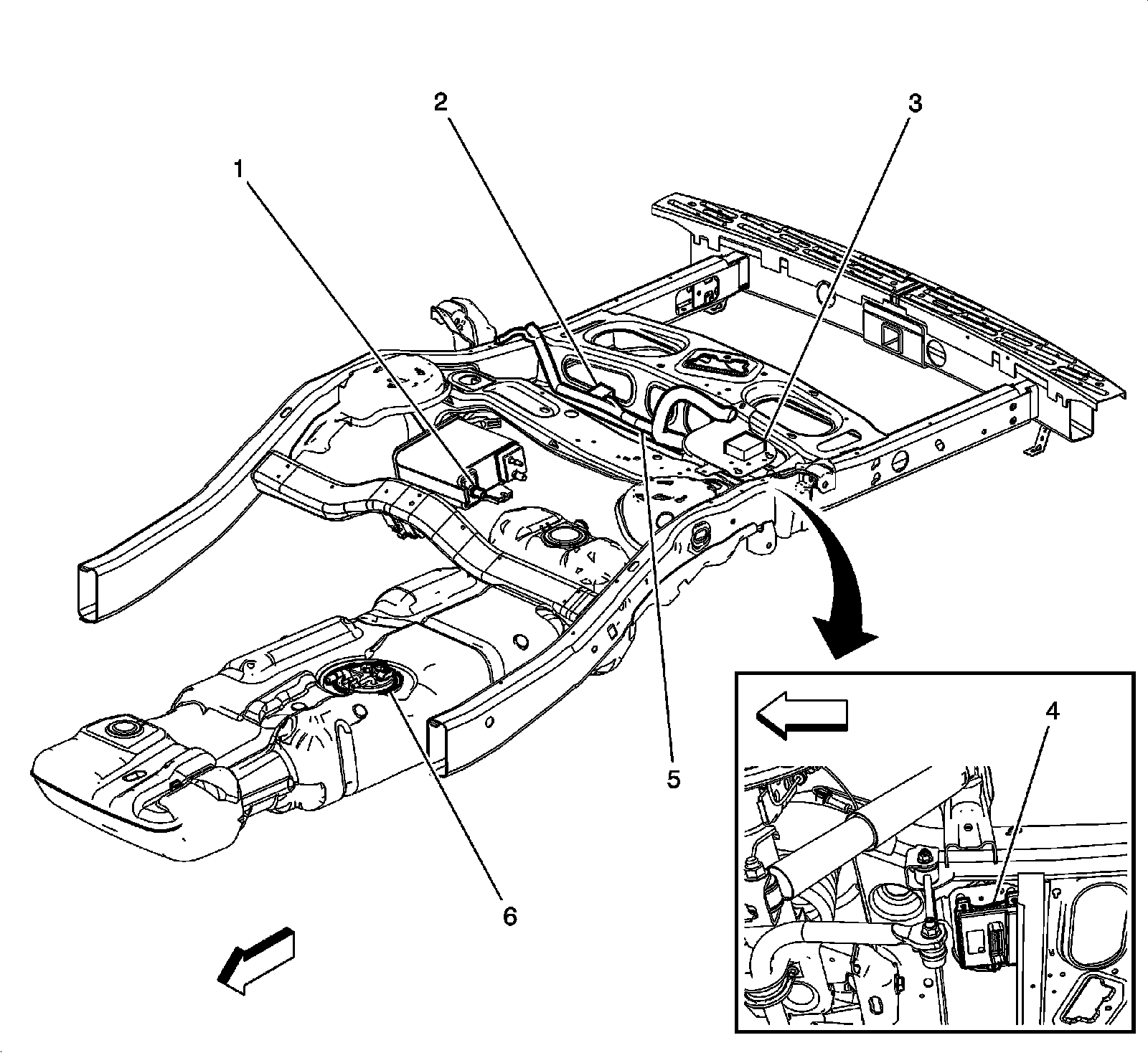

Rear Underbody Components (10 Series without HP2)




1 - Evaporative Emissions (EVAP) Canister
2 - Data Link Resistor 1
3 - Trailer Brake Control Relay (JL1)
4 - Fuel Pump/Trailer Brake Control Module (JL1)/Fuel Pump Flow Control Module (without JL1)
5 - Chassis Harness
6 - Fuel Pump and Sender Assembly - Front
