Power and Ground Distribution
>>
Fuse
>>
Application and ID
>>
Circuit Breaker - Police Power 3 (5W4 or PPV)
Circuit Breaker - Police Power 3 (5W4 or PPV)
Electrical Center Identification Views

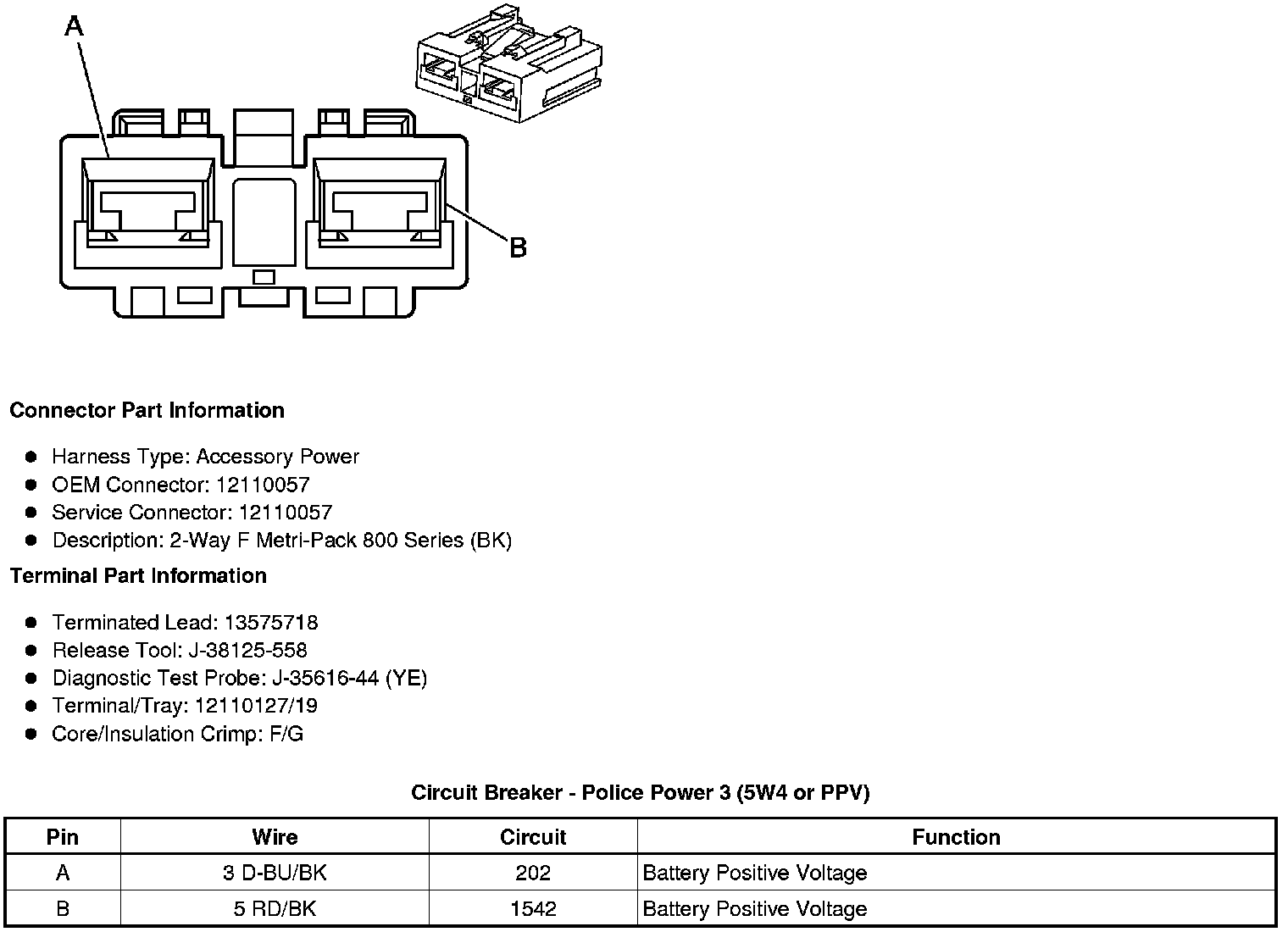

Circuit Breaker - Police Power 3 (5W4 or PPV)
