Home >> Chevrolet >> 2012 >> Avalanche 2WD V8-5.3L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Schematics 7

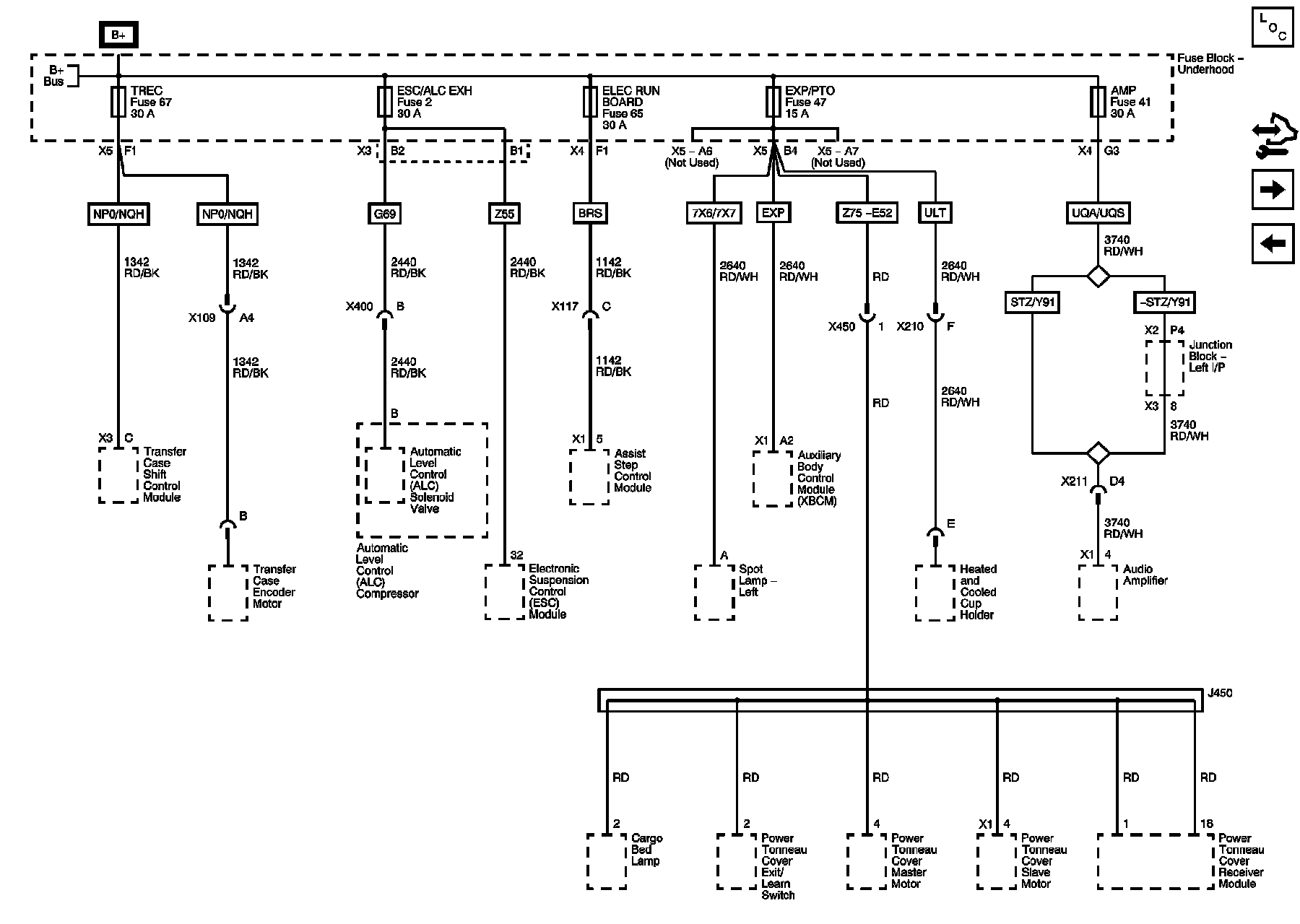

Power Distribution Schematics 7




Power Distribution Schematics

AMP, ELEC RUN BOARD, ESC/ALC EXH, EXP/PTO, and TREC Fuses
