Power Distribution Schematics 5
Power Distribution Schematics 5

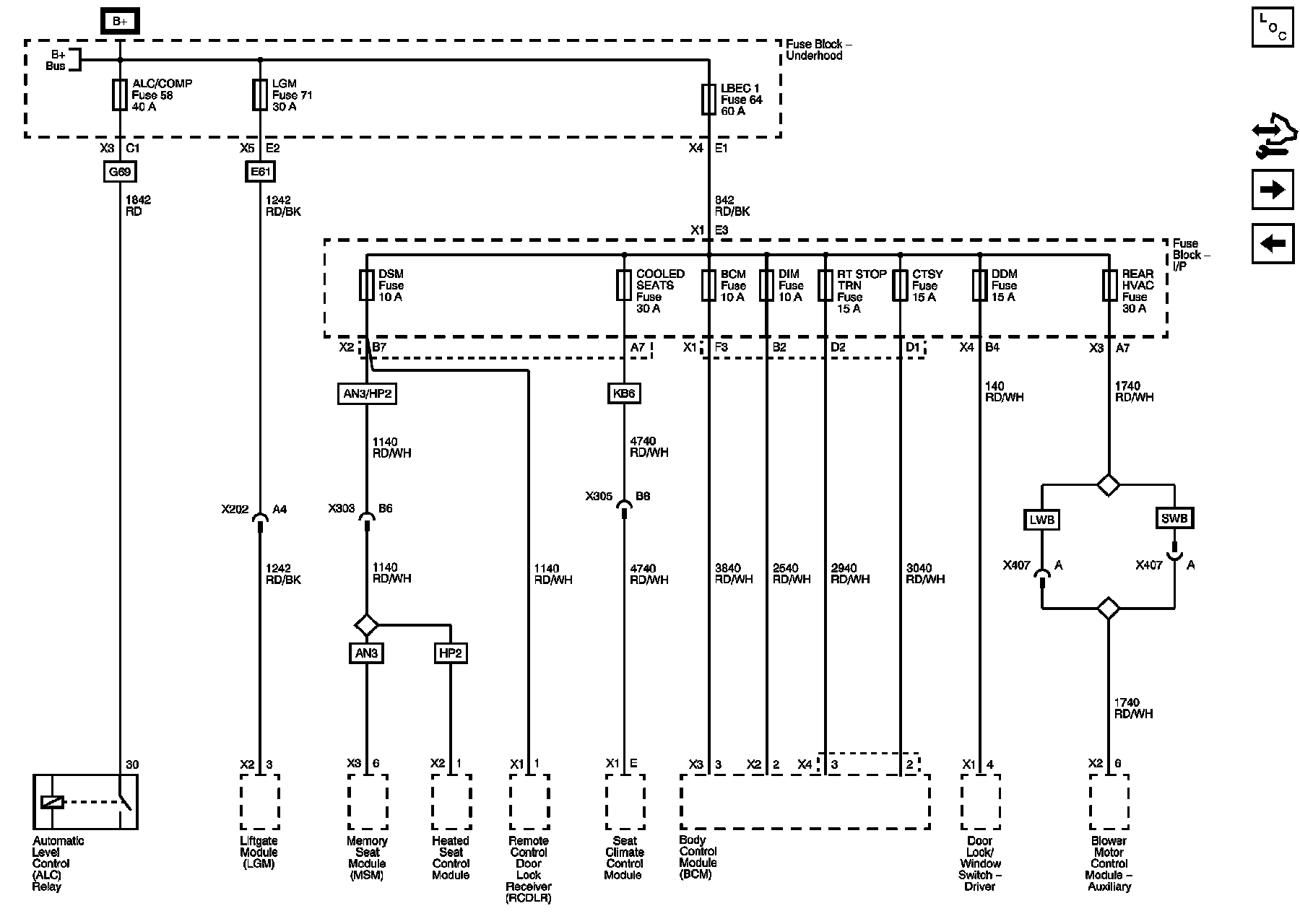

Power Distribution Schematics
ALC/COMP, BCM, COOLED SEATS, CTSY, DDM, DIM, DSM, LBEC 1, LGM, REAR HVAC and RT STOP TRN Fuses
