Power Distribution Schematics 26

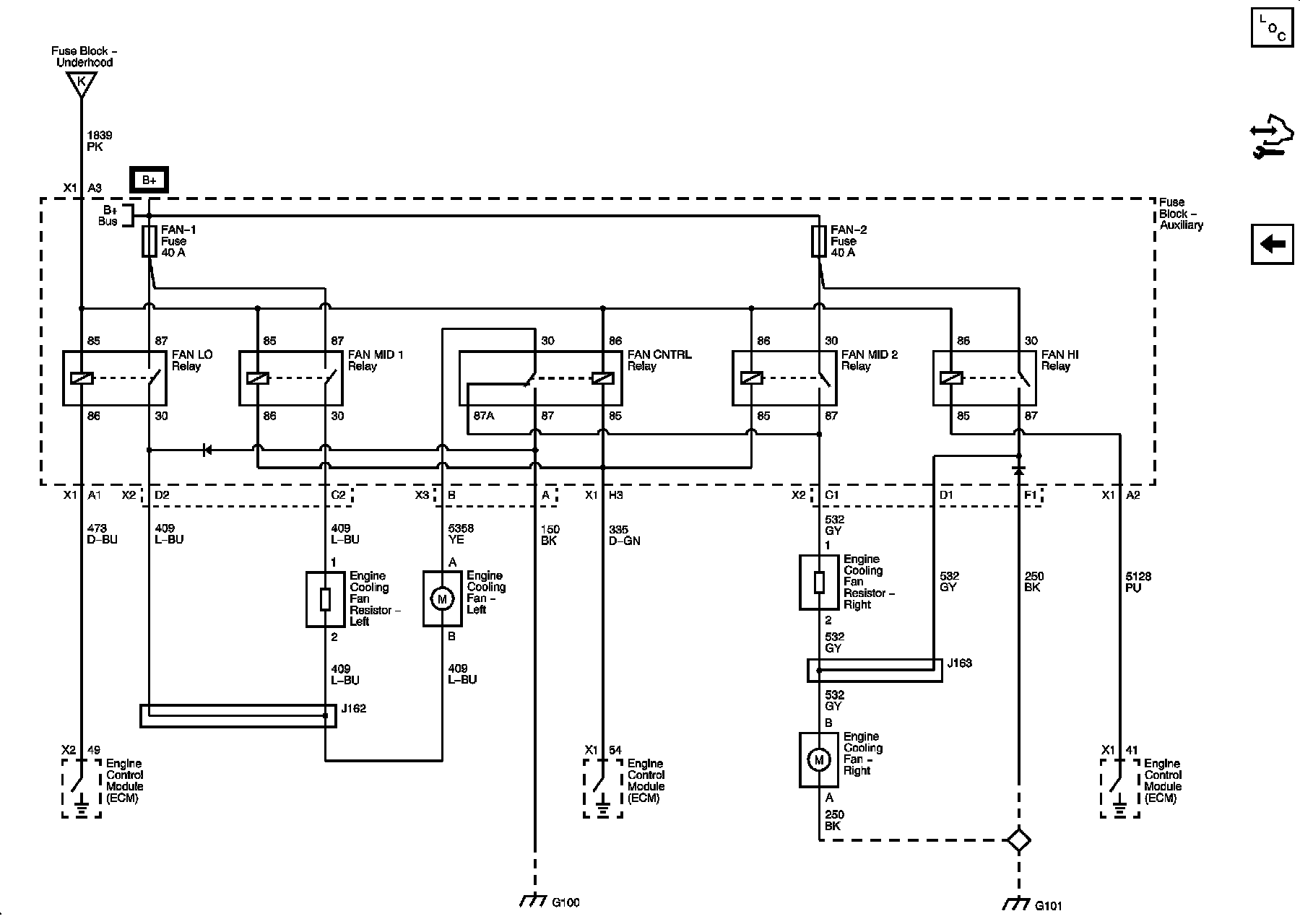

Power Distribution Schematics






















FAN 1 and FAN 2 Fuses (HP2)
