Power Distribution Schematics 16

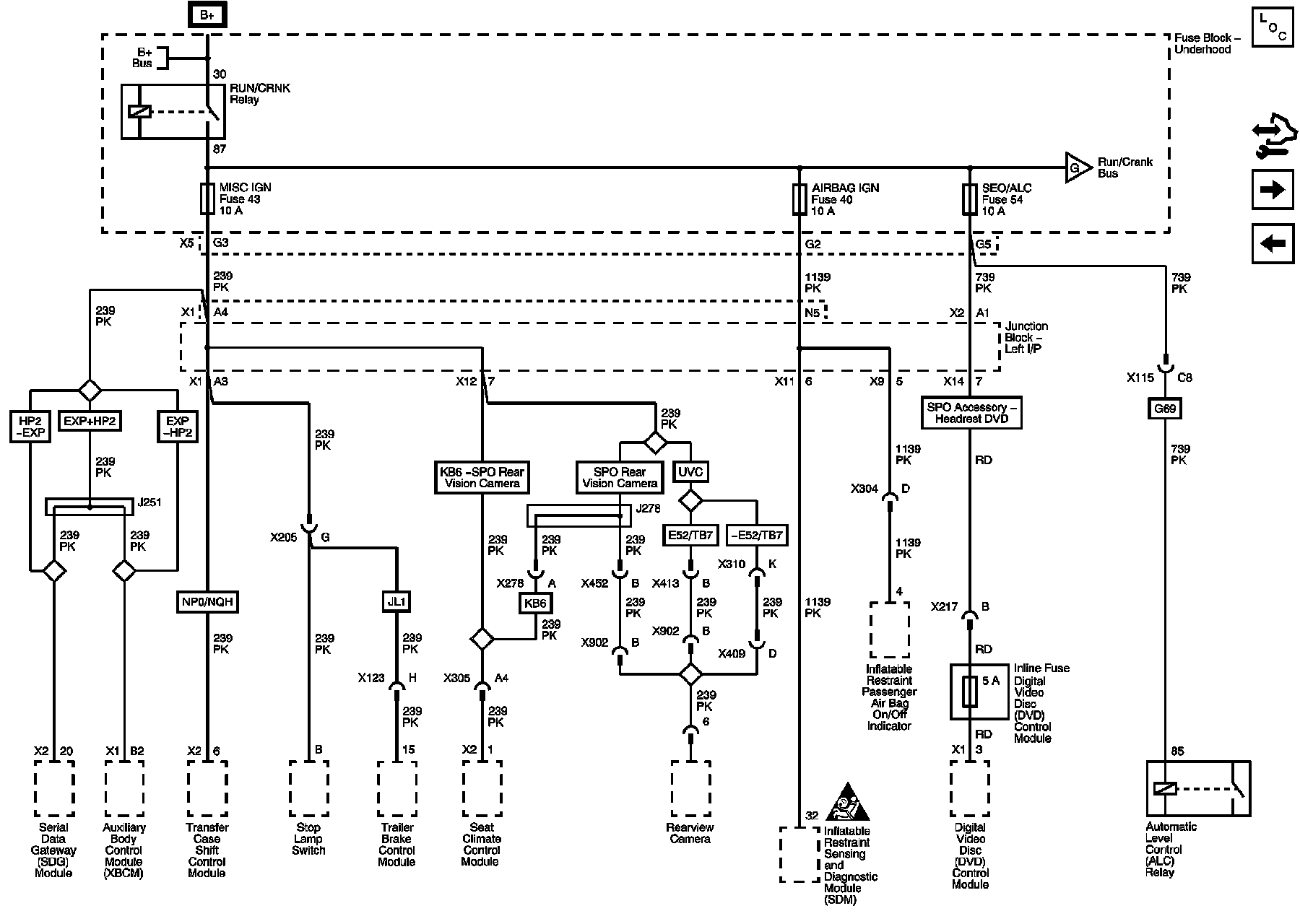

Power Distribution Schematics

AIRBAG IGN, MISC IGN, and SEO/ALC Fuses
