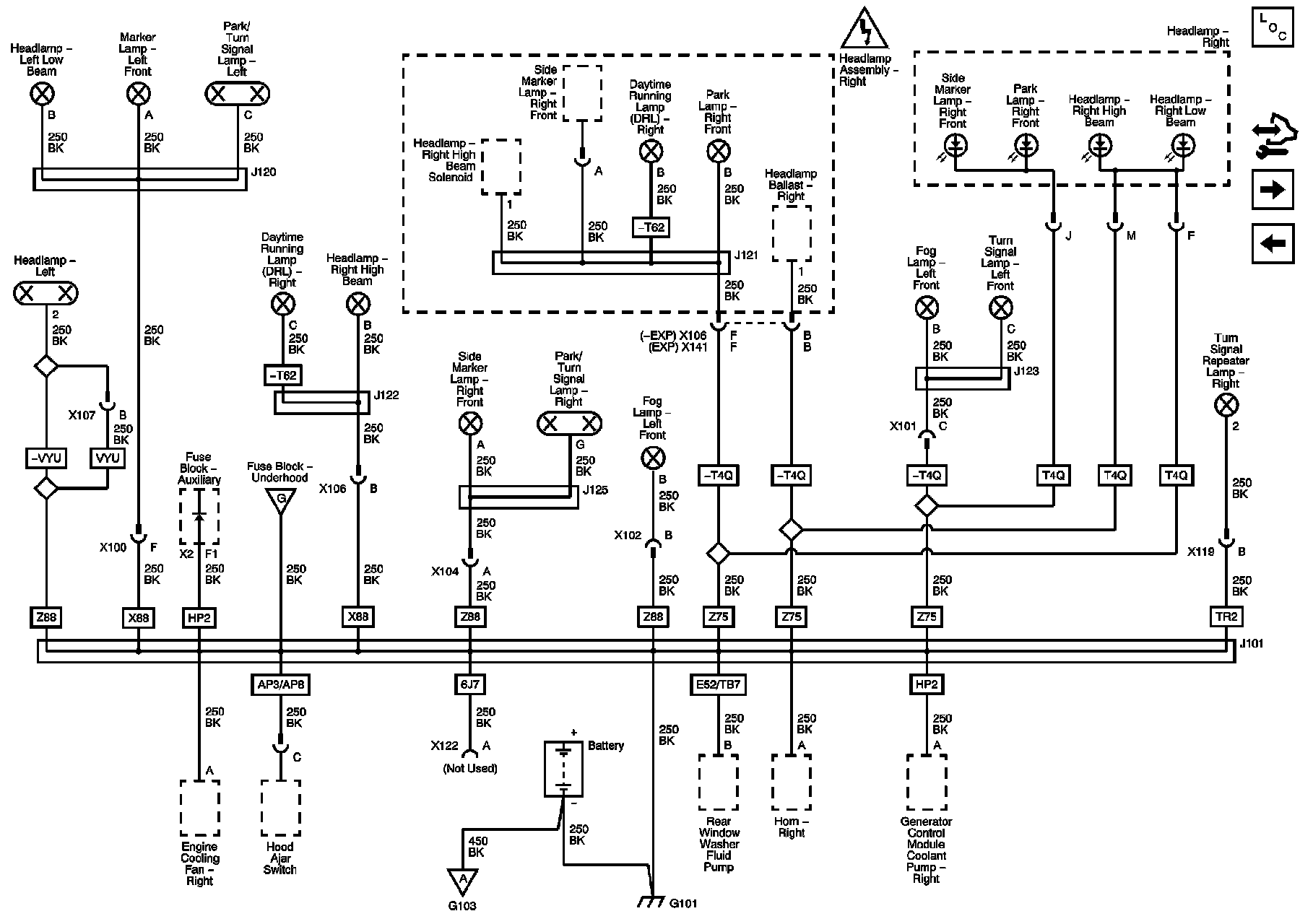

Home >> Chevrolet >> 2012 >> Avalanche 2WD V8-5.3L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution Schematics >> G101 >> G101 (X88, HP2 or 20 Series Z88)
