Floor Console Harness Routing (Z75)

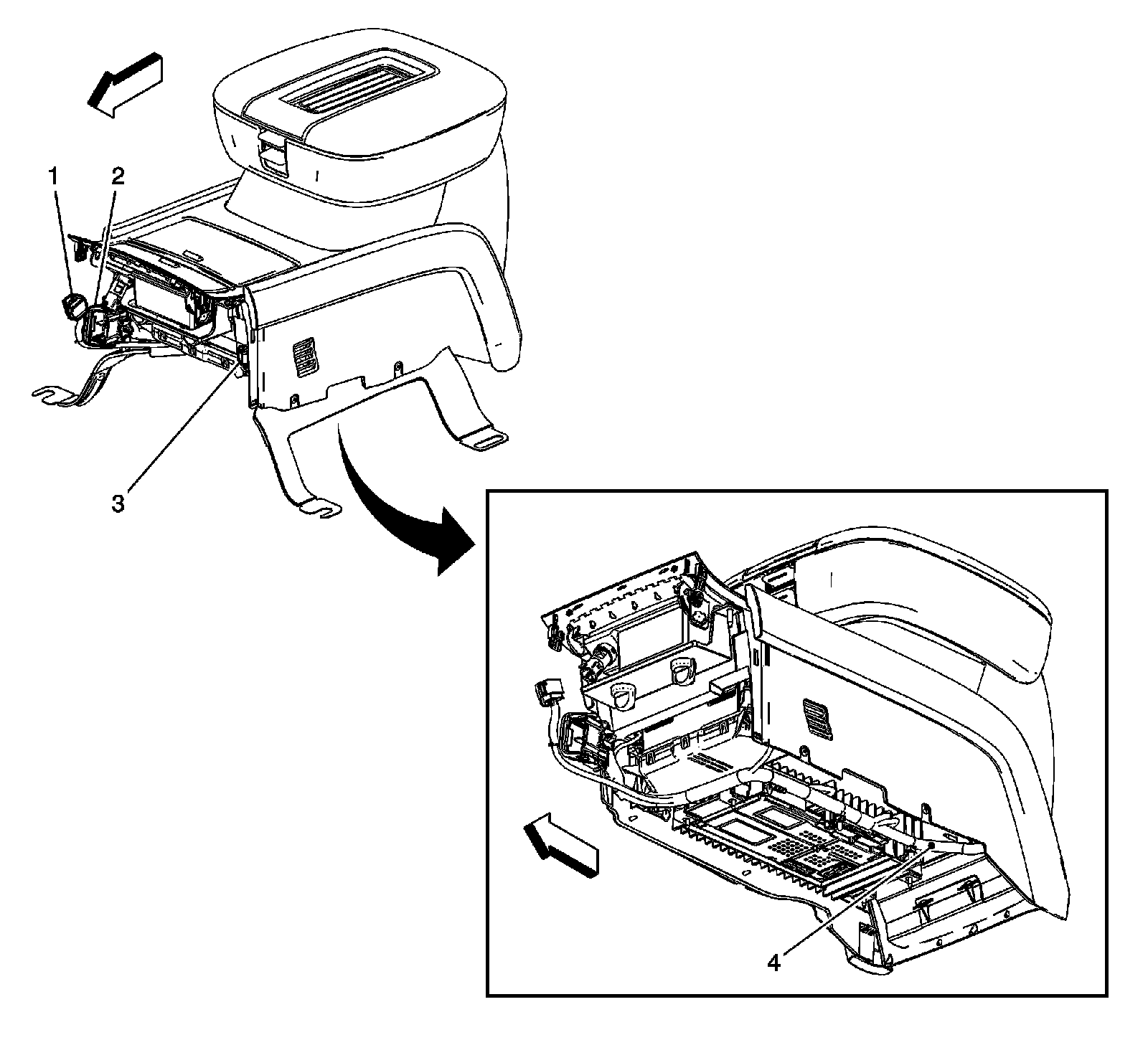

Harness Routing Views

Floor Console Harness Routing (Z75)




1 - X210 (UQS)
2 - X211 (D07)
3 - X309 (UQS)
4 - J330 (D07)
