Tail Lamp Circuit Board - Left

Luggage Compartment/Rear of Vehicle Component Views

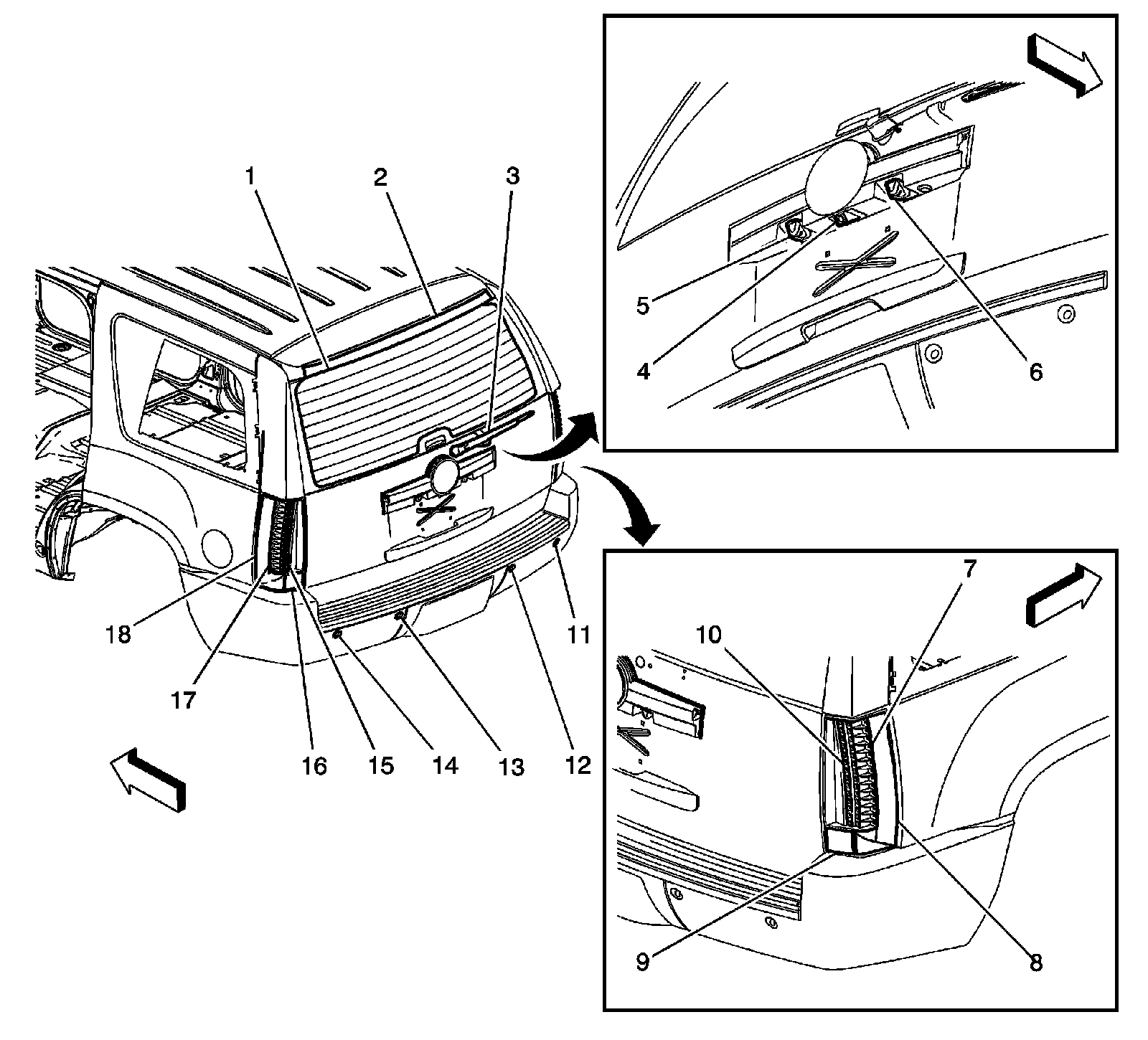

Rear of Vehicle Components (Z75 with E52)




1 - Rear Window Defogger Grid
2 - Center High Mounted Stop Lamp (CHMSL)
3 - Rear Window Wiper
4 - Rearview Camera (UVC)
5 - License Lamp - Left
6 - License Lamp - Right
7 - Tail Lamp Circuit Board - Right
8 - Side Marker Lamp - Right Rear
9 - Side Object Sensor - Right (UFT)
10 - Backup Lamp - Right
11 - Tail Lamp Circuit Board - Right
12 - Object Alarm Sensor - Right Rear Corner (UD7)
13 - Object Alarm Sensor - Right Rear Middle (UD7)
14 - Object Alarm Sensor - Left Rear Middle (UD7)
15 - Object Alarm Sensor - Left Rear Corner (UD7)
16 - Tail Lamp Circuit Board - Left
17 - Backup Lamp - Left
18 - Side Object Sensor - Left (UFT)
19 - Tail Lamp Circuit Board - Left
20 - Side Marker Lamp - Left Rear
