Chevrolet
>>
2012
>>
Avalanche 2WD V8-5.3L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
License Plate Lamp
>>
Diagrams
>>
License Lamp - Left
License Lamp - Left

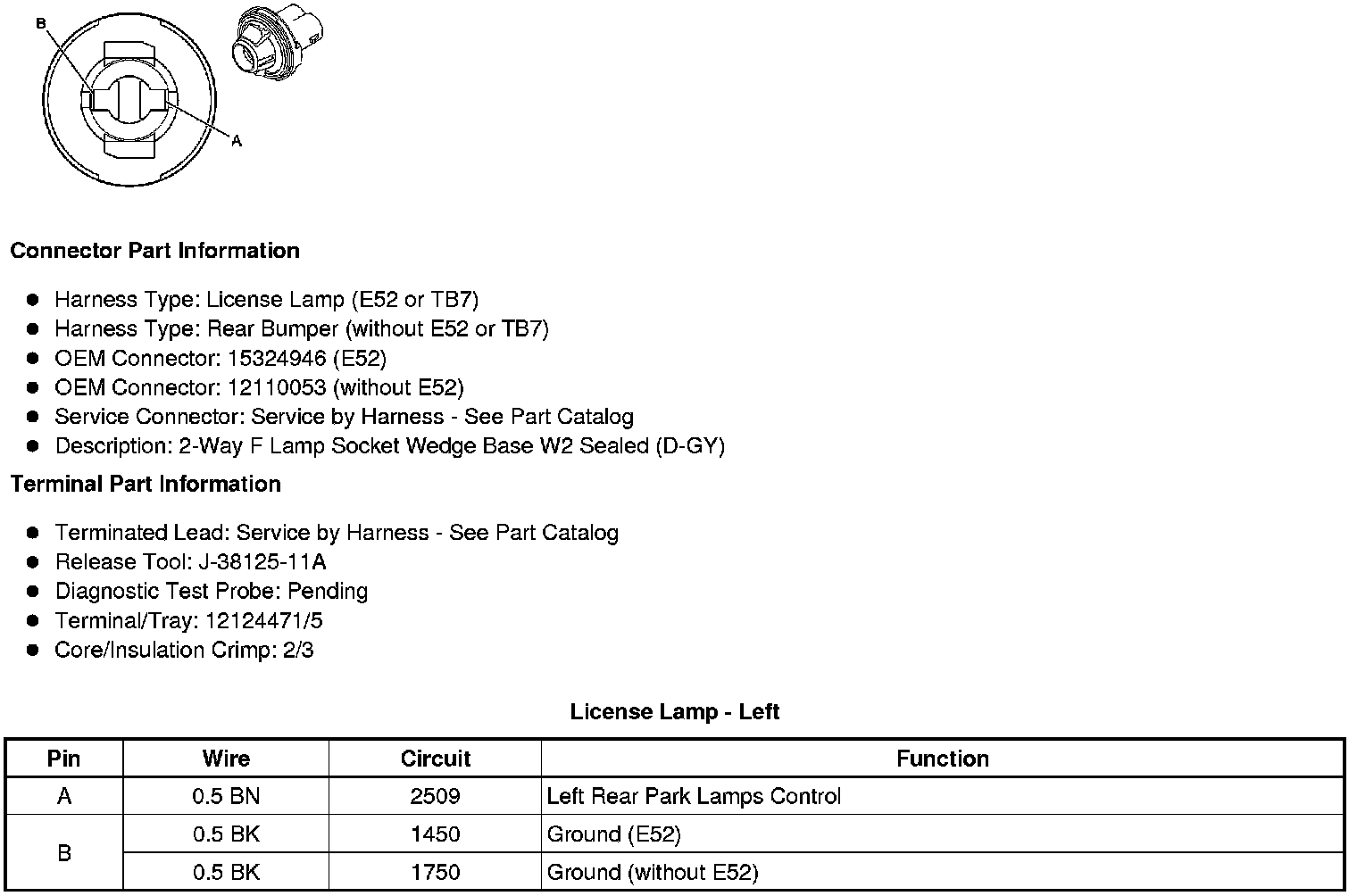

Component Connector End Views
License Lamp - Left
