Chevrolet
>>
2012
>>
Avalanche 2WD V8-5.3L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Diagrams
>>
Multifunction Switch - I/P (Z75)
Multifunction Switch - I/P (Z75)
Component Connector End Views

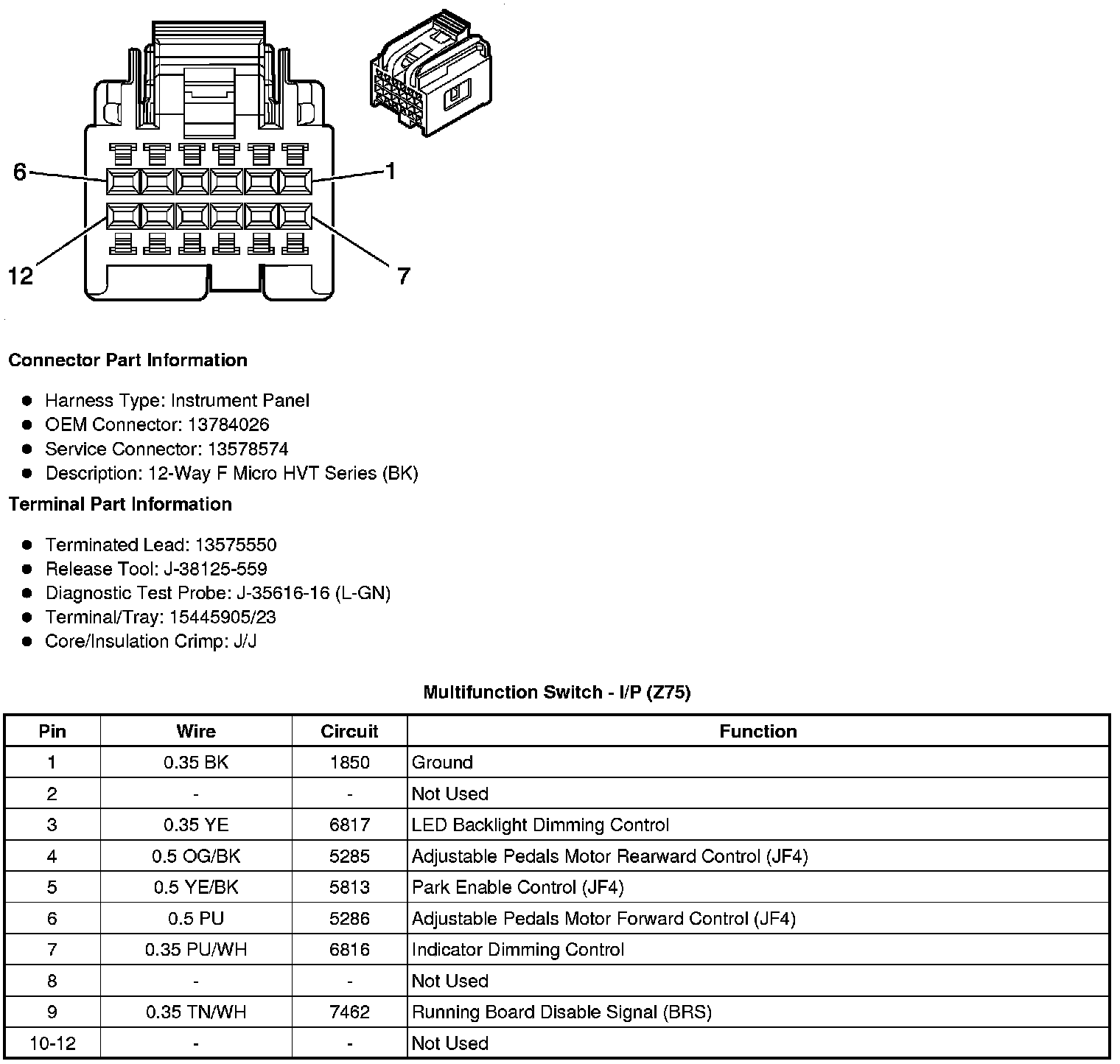

Multifunction Switch - I/P (Z75)
