Multifunction Switch - I/P (X88 or Z88)
Multifunction Switch - I/P (X88 or Z88)

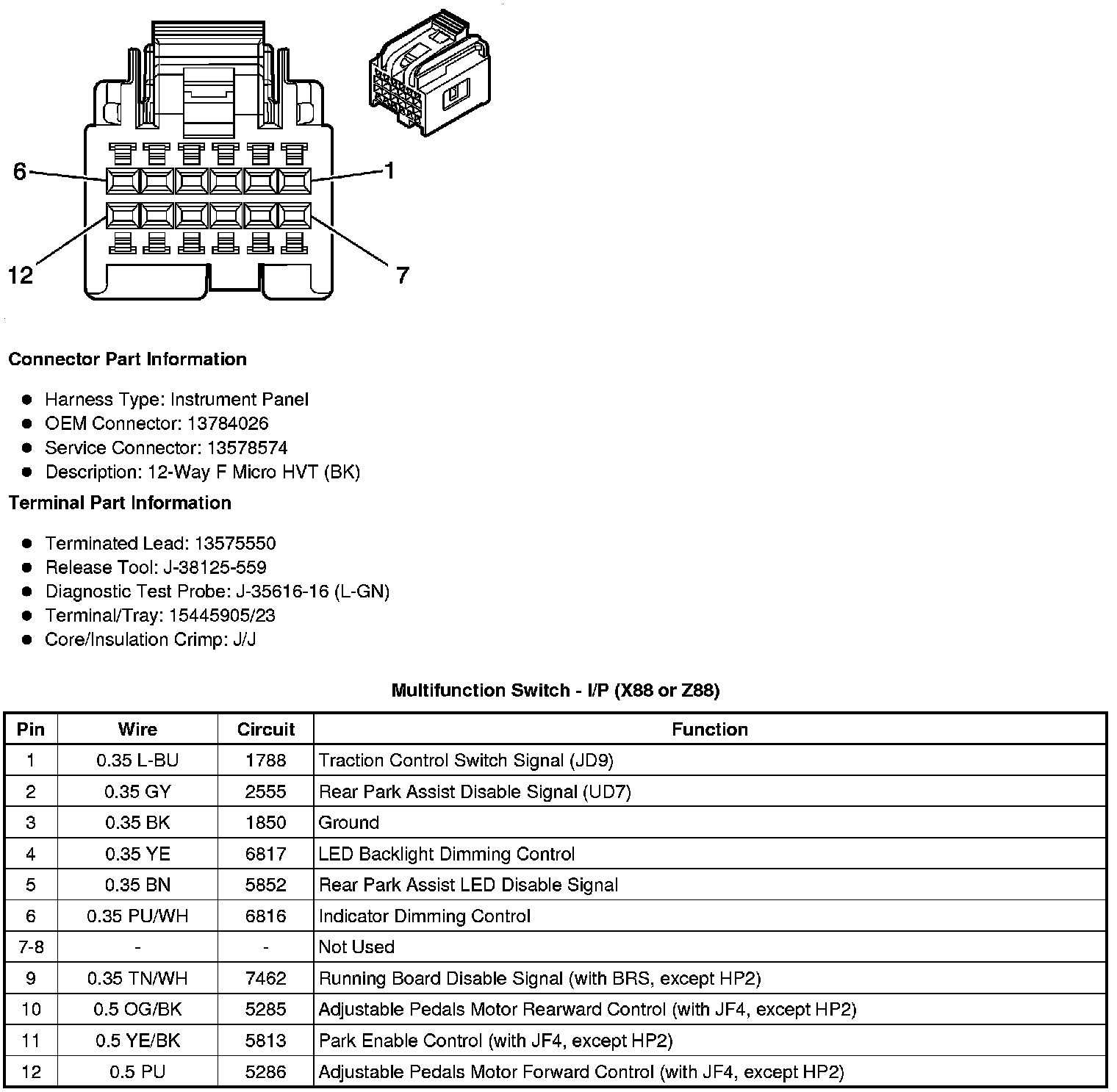

Component Connector End Views
Multifunction Switch - I/P (X88 or Z88)
