Instrument Panel Cluster (IPC) (X88 or Z88)
Instrument Panel Cluster (IPC) (X88 or Z88)

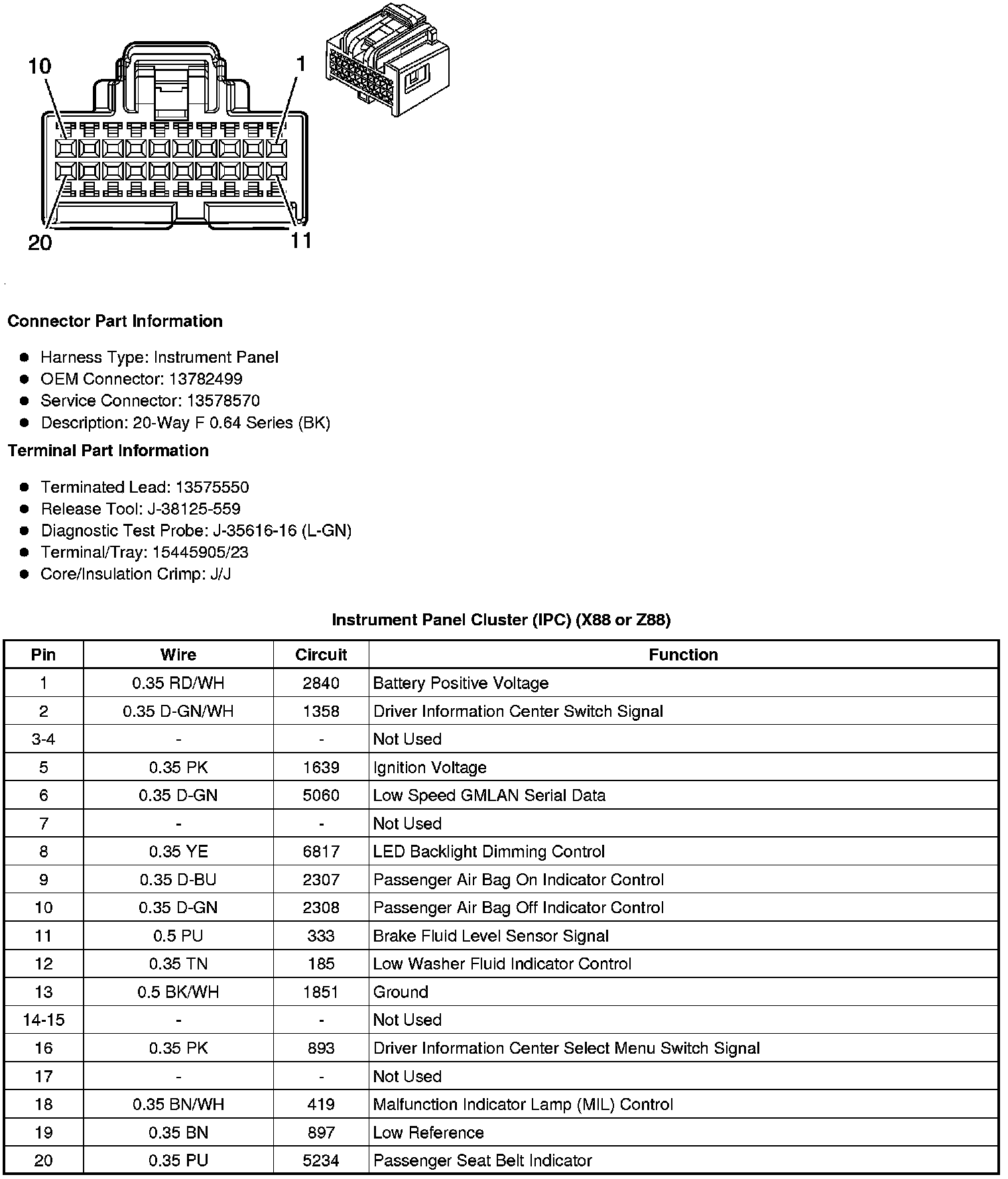

Component Connector End Views
Instrument Panel Cluster (IPC) (X88 or Z88)
