Evaporator Temperature Sensor / Switch: Diagrams

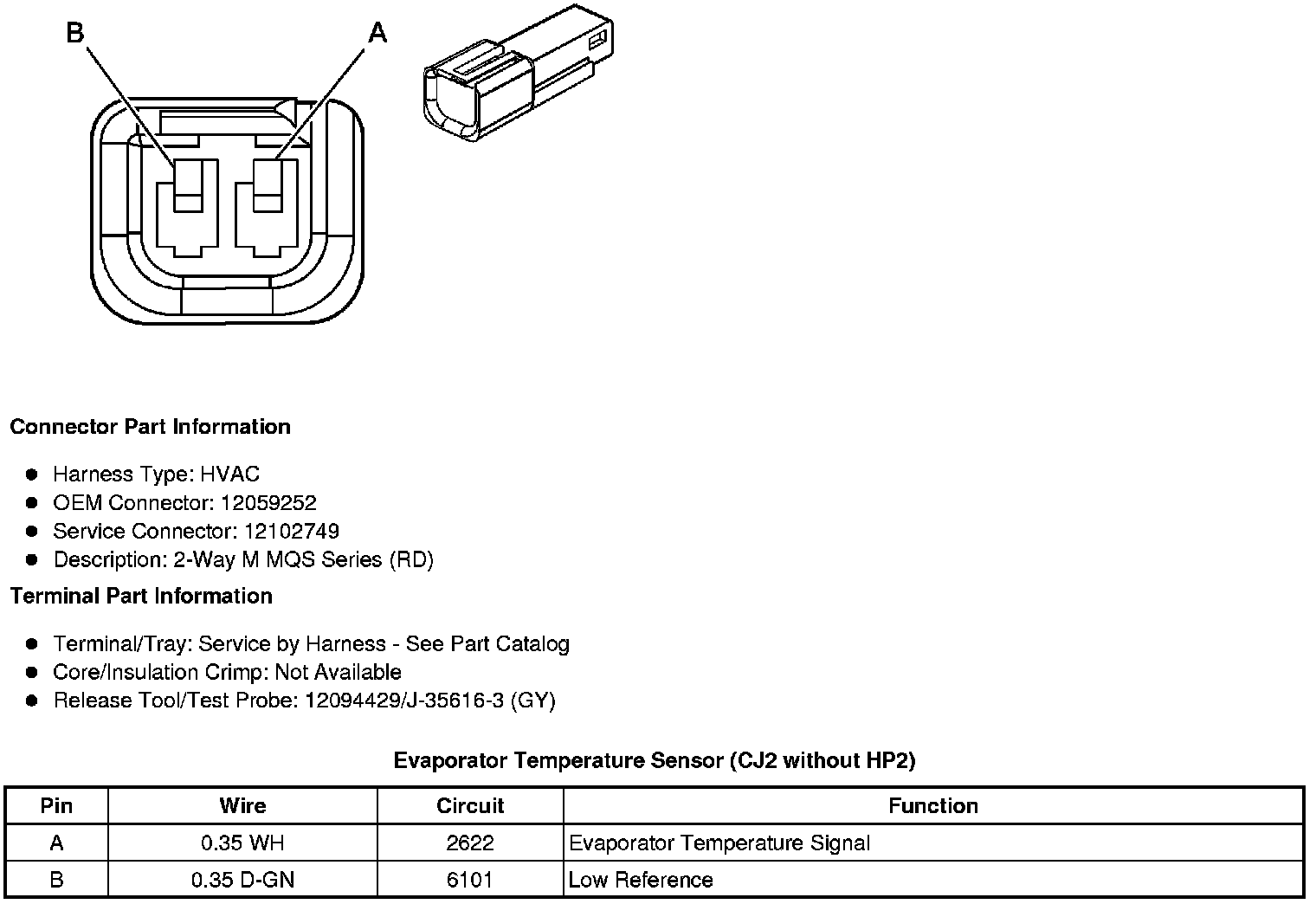

Component Connector End Views

Evaporator Temperature Sensor (CJ2 without HP2)
