Home
>>
Chevrolet
>>
2012
>>
Avalanche 2WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Sunroof / Moonroof
Sunroof / Moonroof

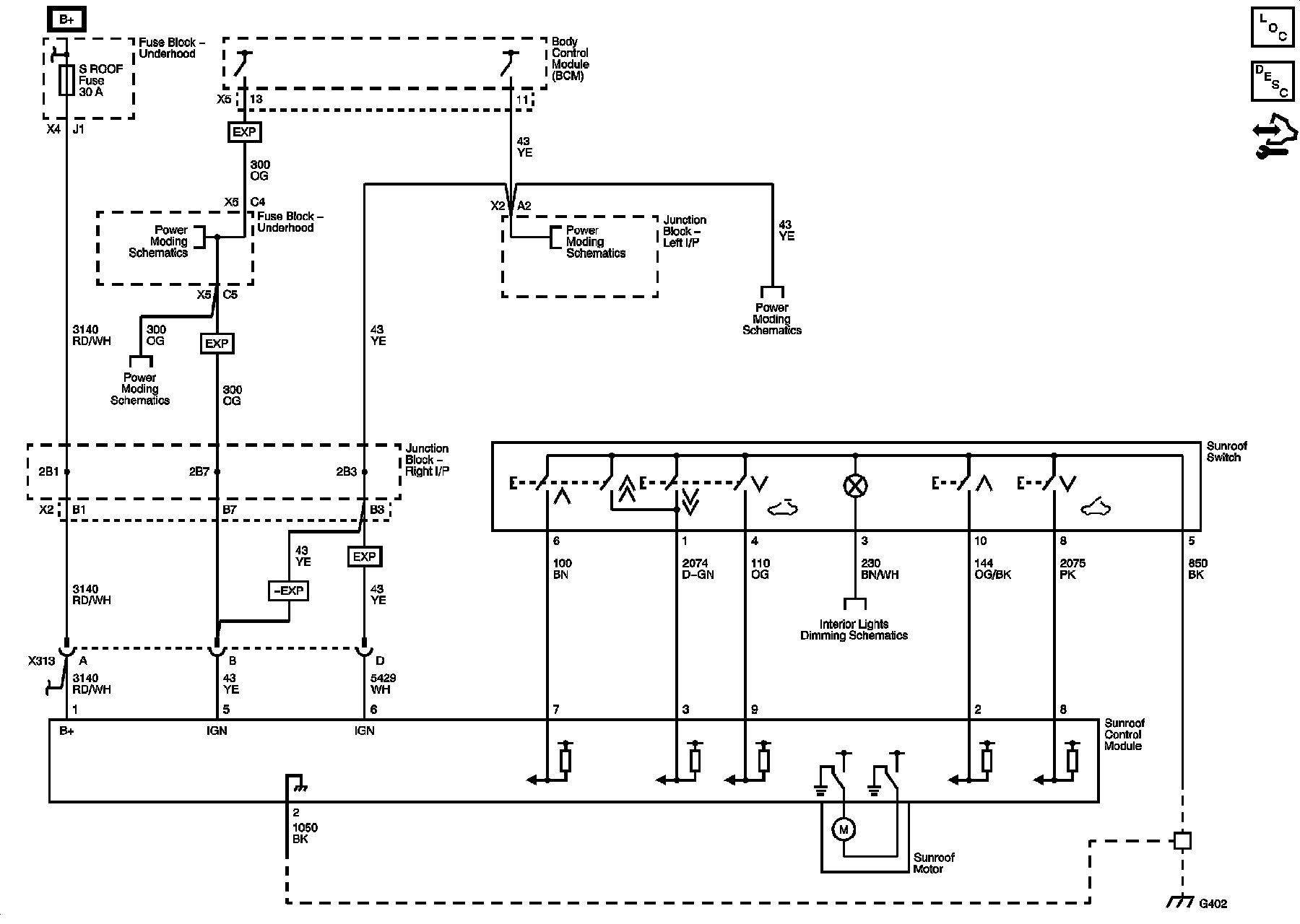

Sunroof Schematics
CF5
