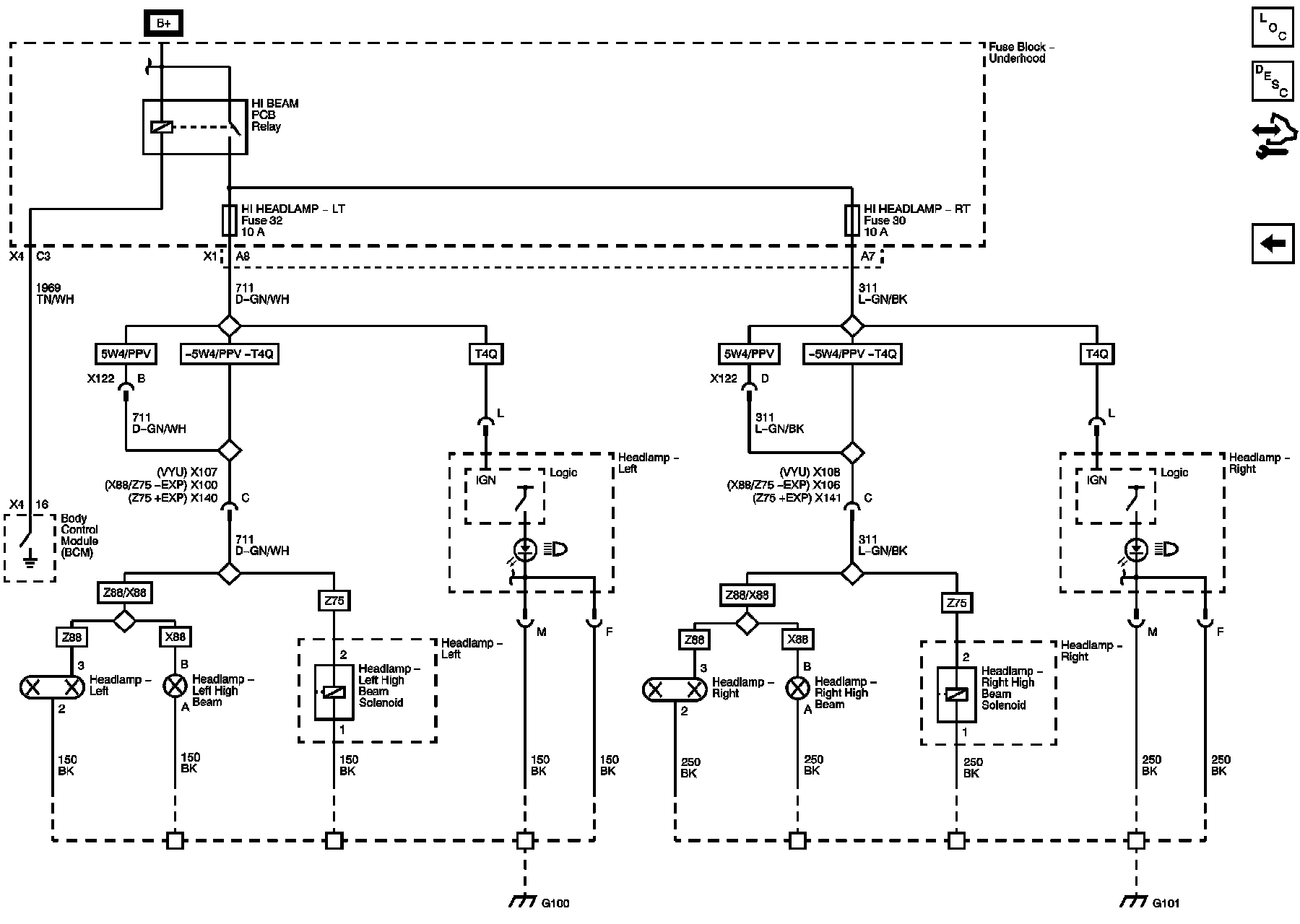

Headlights/Daytime Running Lights (DRL) Schematic 5




Headlights/Daytime Running Lights (DRL) Schematics


High Beams
