Headlights/Daytime Running Lights (DRL) Schematics
>>
Headlights/Daytime Running Lights (DRL) Schematic 3
Headlights/Daytime Running Lights (DRL) Schematic 3
Headlights/Daytime Running Lights (DRL) Schematics

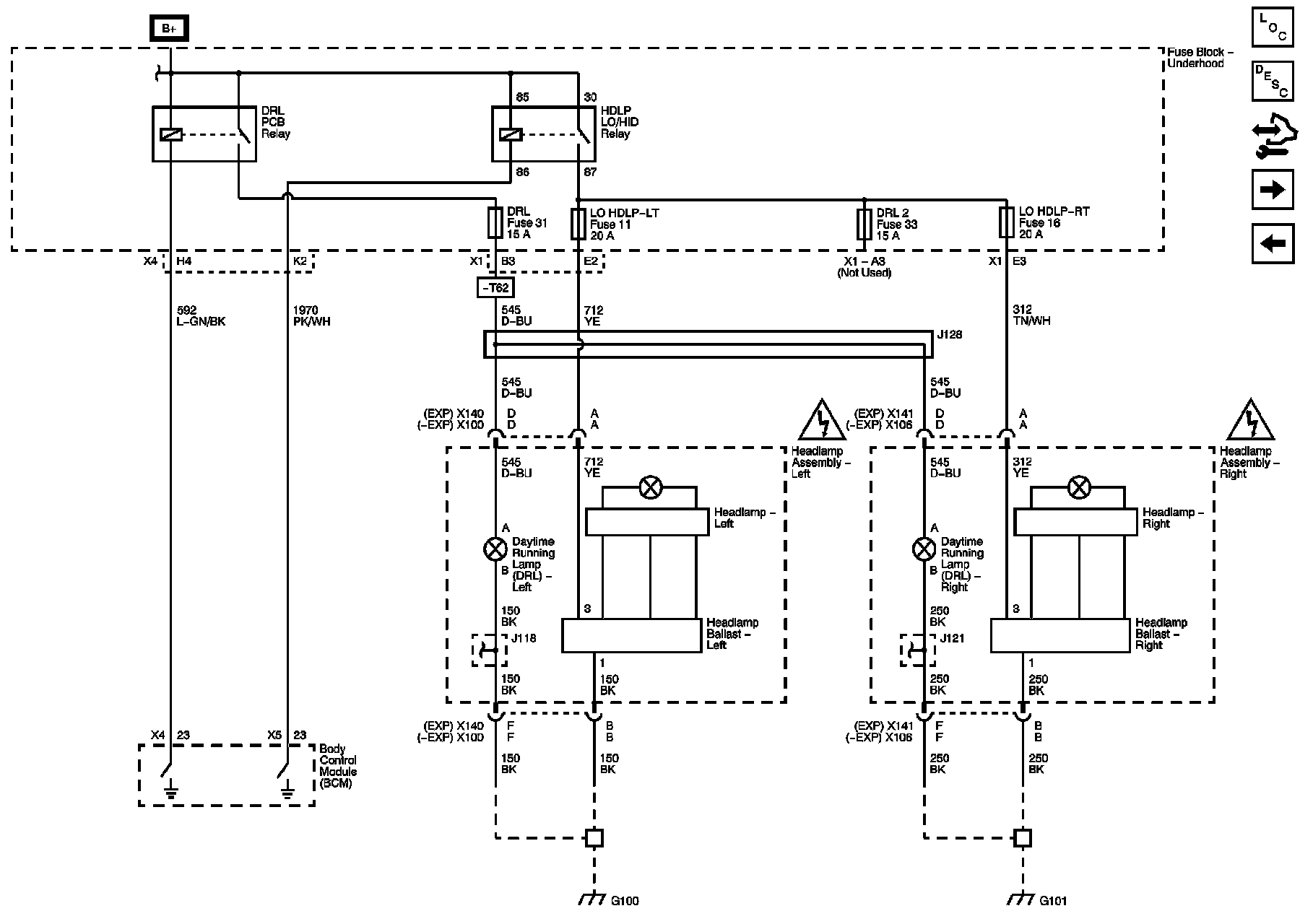

Low Beam and Daytime Running Lamps (Z75 without T4Q)
